The number of teeth is 11, the spacing between teeth is 1mm and 2mm, the instrument material is white steel knife material, and the application standards GB/T9286-88, ISO2409-72, DIN53151.

The number of knife teeth is 6 teeth, the spacing between knife teeth is 1mm, 2mm, 3mm, and the instrument material is white steel knife material, and the application standards GB/T9286-88, ISO2409-72, and DIN53151.

Cross-cut adhesion, 11 teeth 1mm, commonly known as cross-cut tester, QFH classic model, with 3X magnifying glass, 3M tape, knife teeth can be replaced.

Outflow time 0~ 150s, flow hole diameter 4mm, capacity 100ml, cup body material brass, filter material brass, Applicable standard GB/T 1723, flow hole length 4 + 0.02mm.

6 teeth, knife tooth spacing 2mm, 3mm, instrument material white steel knife material, application standards GB/T9286-88, ISO2409-72, DIN53151.

1Mm + 2mm cutter tooth spacing; 6 teeth; single-sided cutter head; thickness range 0~ 120um; in line with GB/T9286, ISO2409, DIN53151 standards.

Checkerboard; size 250x145mm; surface film laminating; 400 sheets per pack.

6 teeth, knife tooth spacing 1mm, 3mm, instrument material white steel knife material, application standards GB/T9286-88, ISO2409-72, DIN53151.

Adjustable, wet film thickness 0~ 3500μm, application width 55mm, accuracy +/- 10μm, material aluminum, Net weight 1.5kg, scale interval 10μm.

Black and white in half, top white and bottom black; size 250x145mm; surface film laminating; 500 sheets per pack.

Range 0~ 150μm, accuracy +/- 15μm, application standards GB/T1764-79, GB/T134522-92, ISO2808-74.

Range 0~ 500um, accuracy +/- 15μm, application standards GB/T1764-79, GB/T134522-92, ISO2808-74.

Viscosity range 70~ 370cSt, outflow time 20~ 100s, flow hole diameter 3.81mm, capacity 50ml, cup height 43mm, cup body material copper nickel plating

Viscosity range 35~ 135cSt, outflow time 0~ 100s, cup body material stainless steel, filter material stainless steel

Glass plate size 200 × 120 × (2~ 3) mm, scale interval 25 μm, film thickness range 50~ 675 μm, execution standard GB9264-88.

Viscosity range 220~ 685cSt, outflow time 0~ 100s, cup body material stainless steel, filter material stainless steel, Applicable standards ISO 2432, GB/T6753.4

Viscosity range 7~ 40cSt, outflow time 0~ 100s, cup body material stainless steel, filter material stainless steel

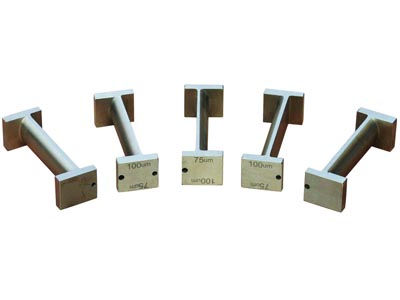

Multi-faceted, wet film thickness 75/100/125/150/200/250/300/400/500/600μm, application width 60mm, material stainless steel, standard 5 pieces set, can make 10 kinds of film thickness, used for the preparation of paint film standard samples.

Adjustable, wet film thickness 0~ 3500μm, application width 100mm, accuracy +/- 10μm, material aluminum, Net weight 1.5kg, scale interval 10μm.

Adjustable, wet film thickness 0~ 3500 μm, application width 150mm, accuracy +/- 10μm, material aluminum, Net weight 1.5kg, scale interval 10μm.

Multi-faceted, wet film thickness 30/50/75/100 μm; 125/150/200/2500 μm; 300/400/500/600 μm;, material stainless steel, used for the preparation of paint film standard samples

Performance index GB/T1722-92, standard color level 18, color level solution prepared according to GB/T1722-92, use to determine the Color of varnish, clear oil and thinners transparent liquid.

Single-channe, range 0~ 100μm, scale interval 10μm, stainless steel, scale unit μm.

Single-channe, range 0~ 50μm, scale unit μm, scraper material stainless steel, scraper size 155 * 50 * 12mm, groove size 13 * 120mm, drawdown blade size 68 * 40 * 6.5mm, scale interval 5μm.

Impact height 0~ 50cm, sub-scale 1cm, drop weight mass 1000g, punch diameter 0019 8mm, Impact depth 2mm, die base aperture φ 15mm, curvature radius R2.5~ 3.0mm, meet the standard GB/T 1732

Single-channe, number of scraping grooves 1, range 0~ 25μm, scale unit μm, scraper material stainless steel, scraper size 155 * 50 * 12mm, groove size 13 * 120mm, drawdown blade size 68 * 40 * 6.5mm, scale interval 2.5μm.

M-3 pendulum, M-3 pendulum mass 120g +/- 1g, swing time on M-3 flat Glass 440 +/- 6s, swing times on M-3 flat Glass 352 +/- 4 times, counting method Electronic counting, application standard GB1730-79

Manual, drawing diameter 0~ 10.5mm, working stroke 80mm, weight weight 100~ 1000g, tracing pitch 1.5mm, Dimension 330 * 160 * 220mm, in line with the standard GB/T1720, JISK6894.

The tire size is φ 241 +/- 6mm, which is used for the determination of non-stick tire drying time of "normal temperature marking Coating" and "heating type marking Coating" in GA/T298-2001 (road marking paints).

The number of strokes is 4, the size of the strokes is R 0.25/0 5/1.0/1.5mm, the track period is 6/12/24h, the sample size is 200 * 200 * (0.2~ 3) mm, and the track period is 6/12/24h/T.

Impact height 120cm, Impact height 120cm, sub-scale 1cm, drop weight mass 2000g, punch diameter φ 16mm, Impact depth 2.5mm, die base aperture φ 16.3mm, curvature radius R2.5~ 3.0mm, meet the standard ASTM D2794-92.

Impact height 120cm, Impact height 120cm, sub-scale 1cm, drop weight mass 1000g, punch diameter 0019 16mm, Impact depth 2.5mm, die base aperture φ 15mm.

Electric, weight weight 0~ 2000g, Dimension 180 * 230 * 280mm, Motor Rotation speed 20~ 40mm/s, minimum increment 50g, top bar lower end tilt angle 10-5 °.

Load 1000g, Applicable standard GB/T 6739-86, JIS K5401, ASTMD2197, standard pencil 6B-6H, test angle 45 °, scratch speed 1mm/s, use pencil scratch hardness instrument to determine paint film Hardness by the pencil Hardness level of the plowed paint film.

Execution standard GB/T1749-89, Measurement range 20.70ml pattern at the specified load flow spread diffusion diameter, pump volume 20.07ml, pump depth 29mm, Glass platen 20x20x0.6cm, weight weight 2kg, use determination of thick paint putty consistency, pump inner diameter φ 29.7mm.

Double-channel, range 0~ 25μm, scale unit μm, accuracy +/- 2µm, scraper material stainless steel, scraper size 175 * 65 * 13mm, groove size 140 * 13mm, drawdown blade size 90 * 40 * 6mm, Applicable standard ISO1524-1983 (E), scale interval 2.5μm

Nylon mesh size 25 * 25mm, rubber plate diameter 22, rubber plate thickness 5mm, weight weight 200g, 500g, 1000g.

Cup volume 100ml, material aluminum, Applicable standard GB/T 6750-86, ISO2811-74, use determination of Paints, varnish density, test technical characteristics by Specific Gravity Cup (mass/volume cup), at the specified temperature to determine the liquid density, expressed in g/ml.

Impact height 120cm, Impact height 120cm, sub-scale 1cm, drop weight mass 1000g, punch diameter 0019 8mm, die base aperture φ 15mm, curvature radius R2.5~ 3.0mm.

Impact height 100cm, Impact height 100cm, drop weight mass 1000g, punch diameter 0019 8mm, Impact depth 2.5mm, meet the standard GB/T 1732
