Impact performance evaluation of epoxy powder coatings for steel pipes
Coatings technology plays a vital role in modern industry, especially in the internal coating of oil and gas pipelines. Effective coatings can enhance the service life of pipelines, improve their corrosion resistance performance, and ensure the flowability of oil or gas. To this end, the mass and performance of coatings are key. This article will focus on the impact performance of epoxy powder coatings for steel pipelines, including related test methods, materials and instruments, and their importance.
1. Impact performance of coatings
In many industrial applications, pipes are often affected by mechanical stress or Miscellaneous external factors such as earthquakes, soil movement or Miscellaneous Impact. Therefore, the impact performance of coatings is critical. A mass good coating should be able to remain intact under Impact without crazing or breakage.
2. Test materials and instruments

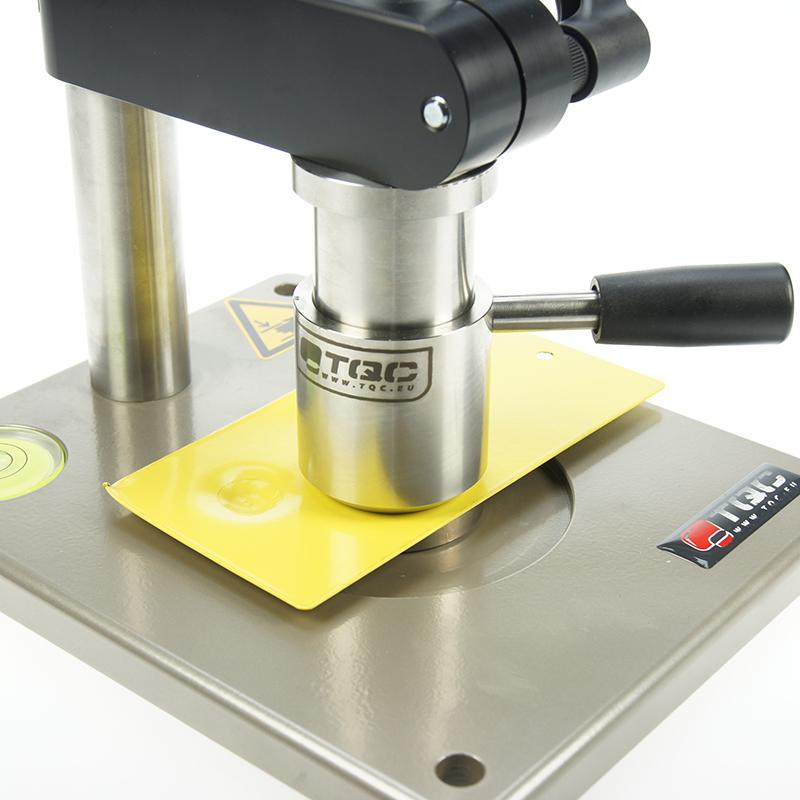

Impact Tester: with specific duct length, drop weight mass, punch diameter and hardness.
Leak Detectors: Includes Holiday Detectors and Resistance Leak Detectors.
Magnetic Thickness Gauge: measurement of coating thickness.
Specimen: Cold rolled steel plate is used in preparation, coated with epoxy powder and then ground.
3. Determination method and steps
Place the prepative specimen on the base of the impact Tester with the coating facing up.
Release the drop weight to apply Impact based on the estimated damage-free height.
Check the integrity of the coating in the Impact area.
If there is no obvious damage, increase the Impact height and repeability.
Impact point inspection using a leak Detector to determine the integrity of the coating.
Record the maximum Impact value without rupture.
4. Analysis of results
Impact performance of a coating is expressed by its maximum impact value without cracking. Usually, this value is expressed in joules (J). In order to ensure the accuracy of the test, attention should also be paid to the influence of the thickness of the test plate on the results. Therefore, it is crucial to choose the appropriate test plate thickness when conducting the test.
5. Industry standards and references
In order to ensure the accuracy and Reliability of the test, the oil and gas industry standard SY/T 0442 "Technical Standard for Sintered Epoxy Powder Internal Coatings for Steel Pipelines" provides detailed guidance and reference.
6. Conclusion
Impact performance of epoxy powder coatings for steel pipelines is a key indicator in their performance evaluation. Through scientific measurement methods, we can ensure the mass of the coating, thereby extending the service life of the pipeline and ensuring the safe and efficient transportation of oil and gas.
