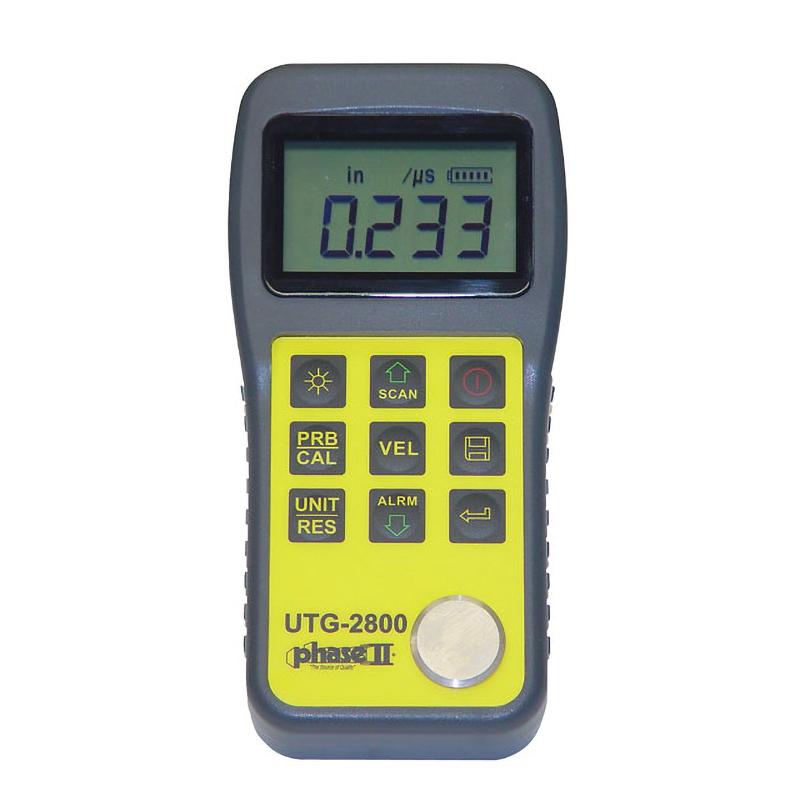

Principle, Function, Application and Selection of Multifunctional Ultrasonic Thickness Gauge

The multifunctional ultrasonic Thickness Gauge is a kind of measurement equipment widely used in industrial, manufacturing, aerospace, chemical and other fields to quickly and accurately measure the thickness of various materials. This article will introduce the working principle, functional characteristics, application fields and selection points of multi-function ultrasonic Thickness Gauges to help readers better understand and choose the equipment that suits their needs.

Principle

The multifunction ultrasonic Thickness Gauge works by taking advantage of the properties of the speed of ultrasonic waves propagating in a material in relation to the density of the material and the speed of sound in the medium of sound wave propagation. Its main components include ultrasonic transmitters, receivers, probes, control systems, etc. First, the ultrasonic emitter sends a high-frequency ultrasonic signal to the surface of the object to be measured. The ultrasound waves pass through the analyte and are reflected by the medium inside or the back. The receiver then receives the reflected ultrasonic signal and transmits the signal to the control system via the probe. The control system calculates the thickness of the measured object based on the received signal and displays or records the measurement results.

Features

Multifunctional ultrasonic Thickness Gauges typically have a variety of measurement modes and functions that can be used to measure objects of different materials, shapes, and thickness ranges.It has a high-precision measurement system and data processing function, which can realize accurate measurement and analysis of the thickness of the measured object.It has the ability to measure quickly, and can complete the measurement of the thickness of the measured object in a short time, improving work efficiency.Some multifunction ultrasonic Thickness Gauges have a portable design that is easy to carry and move, and can be used in different workplaces.

Fields of application

Multi-function ultrasonic Thickness Gauge canIt is used for thickness measurement of metal products, plastic products, ceramic products and other materials, such as pipes, containers, plates, etc.It is used for thickness measurement of aerospace devices such as aircraft and spacecraft, such as aircraft fuselage, engine parts, etc.It is used for thickness measurement of chemical equipment such as pipelines, containers, storage tanks, etc., such as the wall thickness of chemical pipelines and storage tanks.It is used for thickness measurement of building materials, such as walls, floors, bridges, etc.

Selection points

In the selectionMulti-function ultrasonic Thickness Gauge is requiredAccording to the actual needs, select the ultrasonic Thickness Gauge with the measurement range that meets the requirements to ensure that it can meet the measurement needs of different materials and different thicknesses.Choose an ultrasonic Thickness Gauge with high accuracy and resolution to ensure the accuracy and reliability of your measurements.If you need to measure in different places, you can choose an ultrasonic Thickness Gauge with a portable design that is easy to carry and use.Choose an ultrasonic Thickness Gauge with data processing and storage capabilities to quickly analyze and record measurement data for subsequent data management and analysis.

Epilogue

As an important measuring equipment, multifunctional ultrasonic Thickness Gauge plays an important role in manufacturing, aerospace, chemical industry, construction and other fields. Choosing the right equipment is of great significance to improve work efficiency and product quality.
