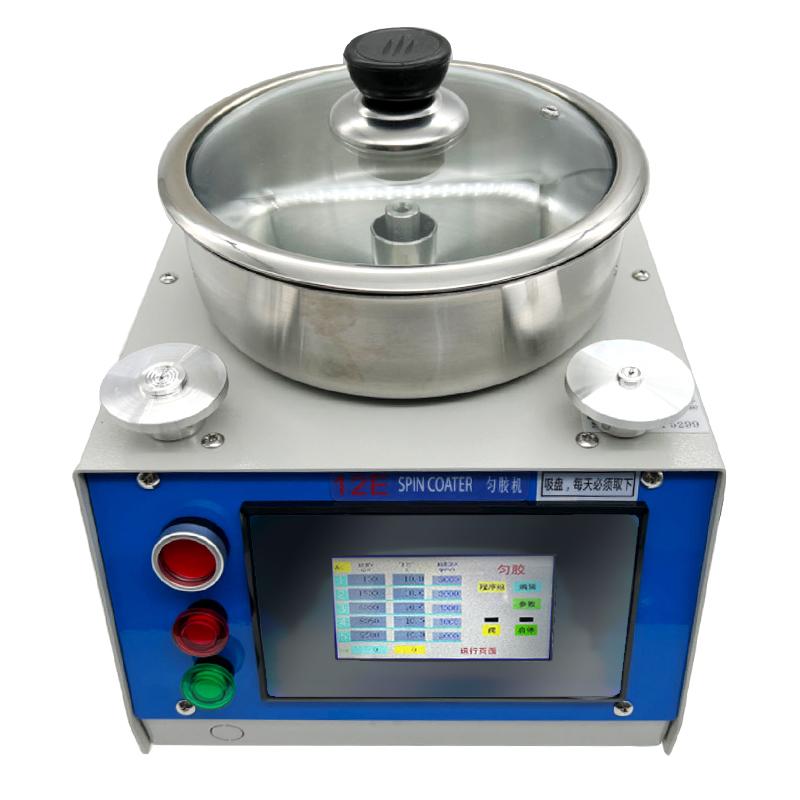

Spin coatings spin coaters: principles, applications, functions and maintenance

The spin coating homogenizer is a highly efficient equipment for industrial production, specially designed to evenly coat glue on the surface of various substrates. With its advanced technology and intelligent control system, this equipment plays an important role in improving production efficiency and ensuring the quality of gluing. Below, we will introduce in detail the working principle, characteristics and advantages of the spin coating and blending machine in different application fields.

How it works

The working principle of the spin coating homogenizer is relatively simple but very efficient. To operate, the object to be glued is first placed on the table of the spin coating homogenizer, and then the machine is started. After the machine is started, the table begins to rotate at high speed while the glue is sprayed evenly from the nozzle onto the surface of the object. The centrifugal force generated by the rotation ensures that the glue covers the entire surface evenly and achieves a good coating result. This process is not only fast, but also effectively controls the thickness and uniformity of the coating.

Intelligent control system

In order to ensure the accuracy and stability of the gluing process, the spin coating homogenizer is equipped with an advanced intelligent control system. The system can adjust the gluing speed and glue thickness according to the specific process requirements. During the operation of the machine, it can automatically detect the flow rate and temperature of the glue, the speed and angle of the worktable, so as to ensure that every gluing operation achieves better results. This intelligent control not only improves production efficiency, but also significantly improves product quality and consistency.

A wide range of applications

Spin coating and leveling machines are suitable for many fields, including microelectronics, semiconductor manufacturing, optical coating, biomaterial surface treatment, etc. Especially in sol-gel technology, it is a key equipment for the preparation of thin films. By adjusting the rotation speed and time, the operator can precisely control the thickness of the layer, which is essential for experiments and production with high precision requirements.

Features:

1. Stable motor control: The spin coating machine adopts an independently powered motor excitation and armature system to ensure a stable speed in the range of 500 to 8000 rpm.

2. Multi-speed adjustment: Start at low speed and then automatically switch to high speed. Both speed and run times can be adjusted to suit different process needs.

3. Accurate photoelectric detection: through photoelectric detection and digital circuit speed measurement, to ensure the speed and accuracy of motor speed detection.

4. Efficient vacuum adsorption system: The design of the solenoid valve controlled by the electronic switch makes the work of the Vacuum Pump more efficient, suitable for assembly line operation, and improves the overall production efficiency.

5. Low-noise design: Special damping measures are adopted to reduce noise during operation, which improves the comfort of the operating environment.

6. Safety interlock function: The interlock design of the solenoid valve and motor operation ensures safety and error-free during operation.

Material selection and maintenance

In the semiconductor and chemical industries, the choice of equipment material is particularly critical. High-quality Spin Coaters are usually made of natural polypropylene or PTFE (Teflon). These materials are not only environmentally friendly, but also have excellent corrosion resistance and high temperature resistance, ensuring long-term stable operation of equipment under a variety of harsh conditions. In addition, the Vacuum Pump must be oil-free and the pressure calibrated accurately to prevent "flying" of the substrate.

In order to ensure the long-term stable operation of the spin coating and blending machine, daily maintenance is very important. After use, the tray and pot body should be cleaned in time, and the vacuum system and motor status should be checked regularly. If you find glue plugging or other faults, do not disassemble them by yourself, and contact the manufacturer for professional maintenance in time.

The advantages of the combination of glue dropping machine and glue leveling machine

Used in conjunction with the glue dropping machine, the spin coating and blending machine can further improve the accuracy and efficiency of the operation. By controlling the pressure and time, the dispensing machine ensures that the amount of glue dripping is equal each time, avoiding errors in manual operation. This combination not only simplifies the operation process, but also greatly improves the accuracy and reproducibility of experimental data.

summary

Through its unique design and intelligent control, the spin coating and blending machine has become an indispensable and important equipment in industrial production. It not only plays a key role in a number of high-tech fields, but also brings significant economic benefits to enterprises by improving production efficiency and ensuring product quality. With the continuous progress of technology, the application prospect of spin coating and blending machine will be broader.
