3Nh general color difference meter operating instructions (NR10QC, SC-10)

This instrument is a color difference meter developed according to CIE (International Commission on Illumination) standards and national standards. It is a color difference meter that is easy to use, stable in performance, fast and accurate in measurement. The instrument is powered by a lithium battery, or it can be powered by a DC external power supply. This operating instruction is applicable to 3nh general color difference meter models: NR10QC general color difference meter, SC-10 general color difference meter.

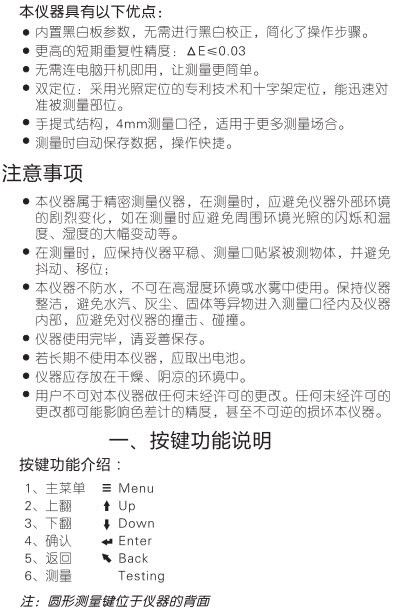

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 1

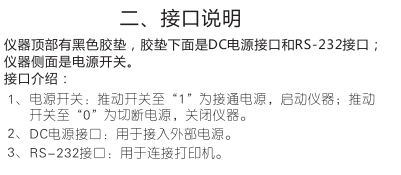

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 2

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 3

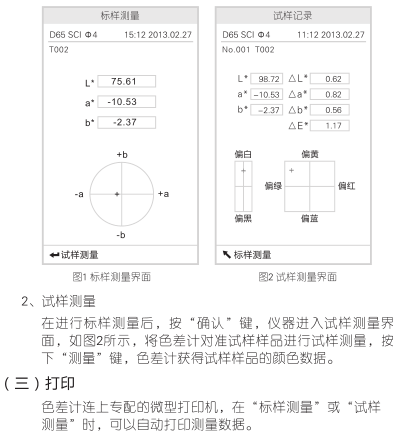

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 4

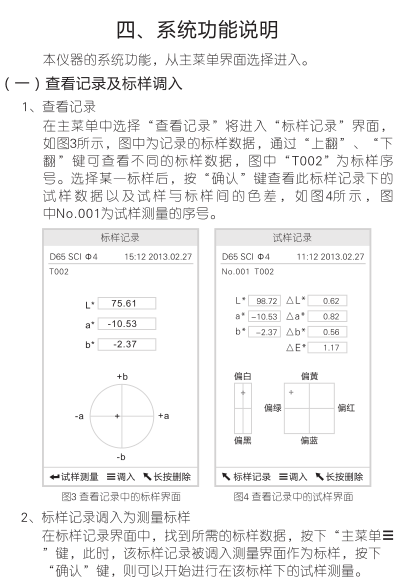

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 5

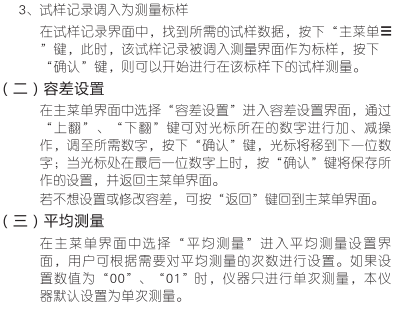

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 6

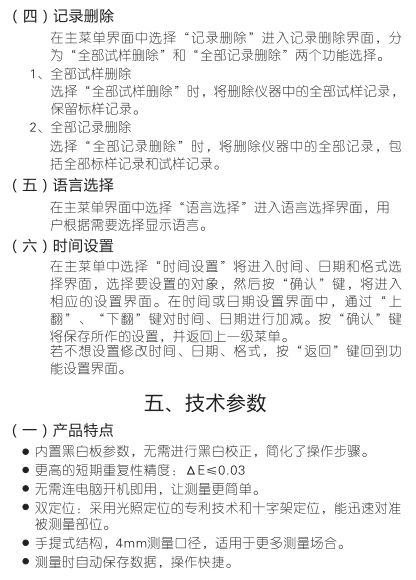

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 7

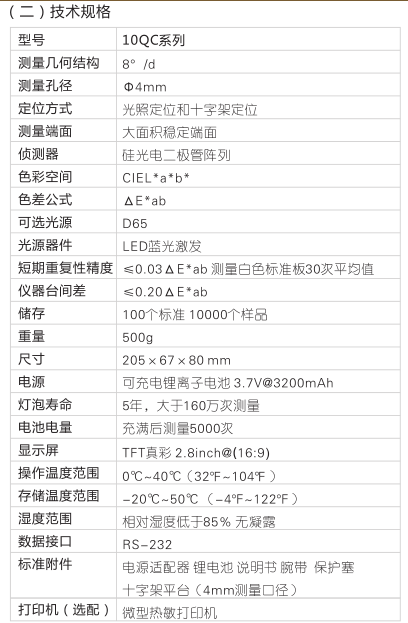

3nh Universal Colorimeter Operating Instructions (NR10QC, SC-10) with Figure 8
