Weifu three-angle (20 °/60 °/85 °) glossiness instrument operating manual

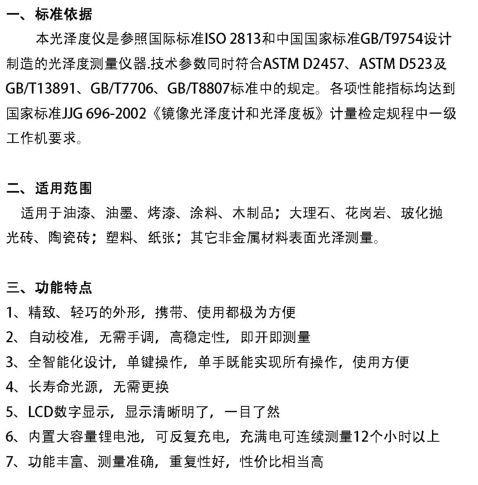

1. Standard basis

This photometric ceremony is a gloss measuring instrument designed and manufactured with reference to the international standard ISO2813 and the Chinese international standard GB/T9754, and its parameters also comply with the provisions of the ASTM2457/ASTMD523, TI13891, and GB/T8807 standards. All performance indicators have reached the requirements of the first-class working machine in the metrological verification regulations of the international standard JJG 696-2002 "Mirror-mirror gloss meter and gloss board".

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 1

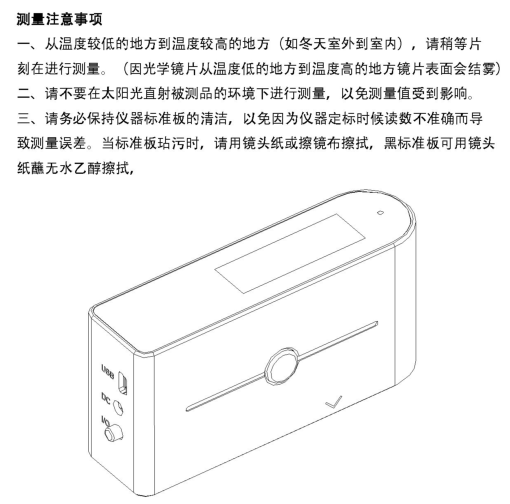

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 2

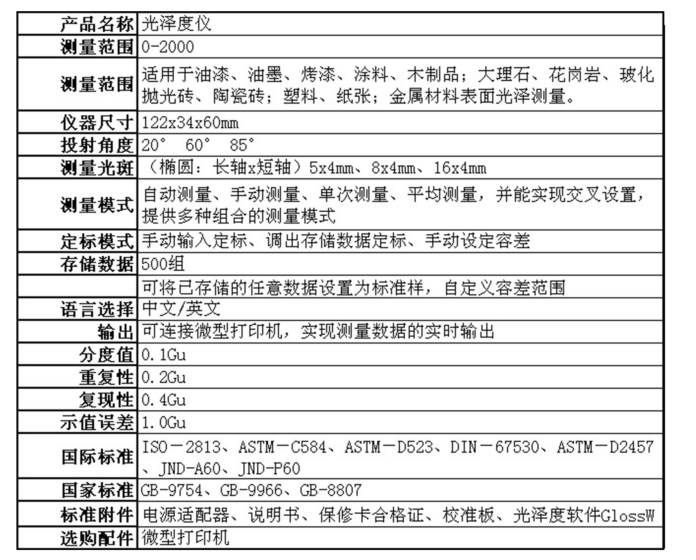

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 3

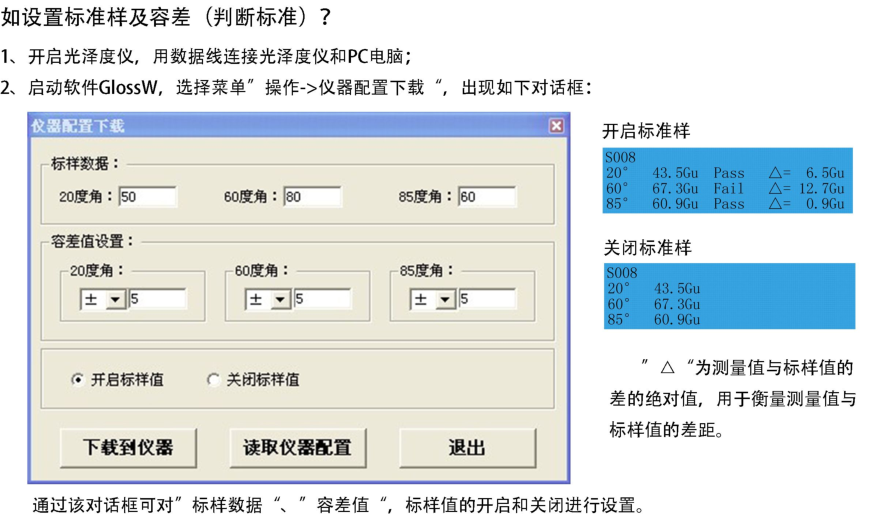

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 4

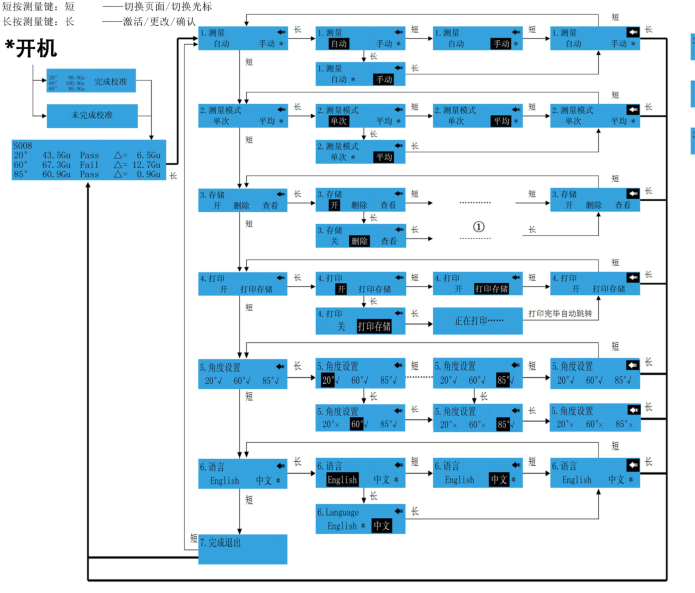

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 5

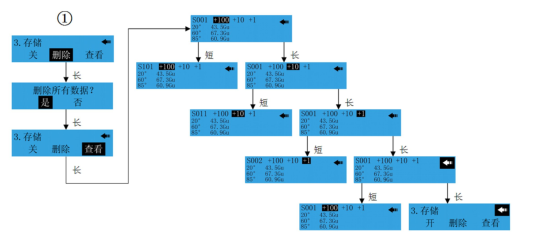

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 6

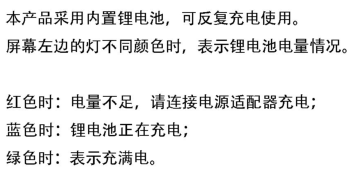

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 7

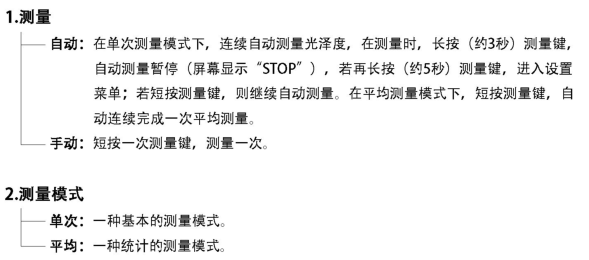

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 8

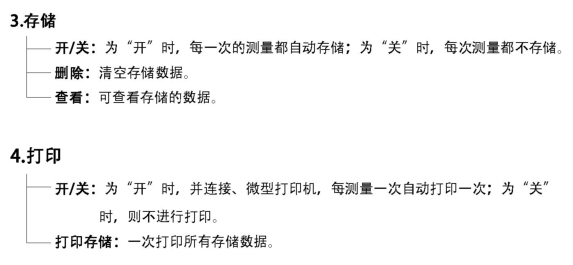

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 9

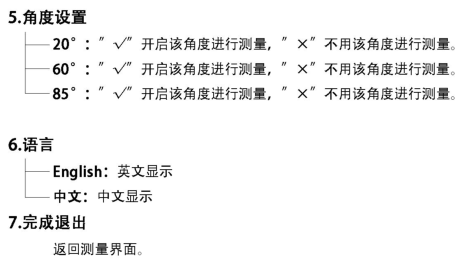

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 10

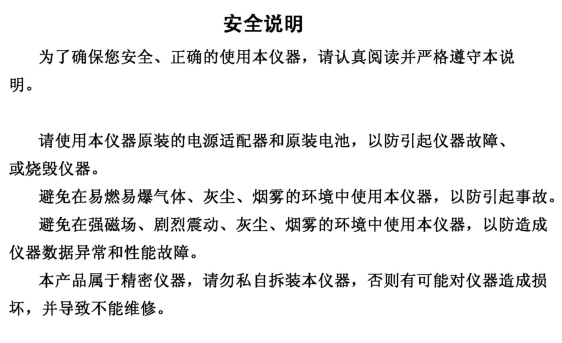

Weifu Three-angle (20°/60°/85°) Gloss Meter Operation Manual with Figure 11
