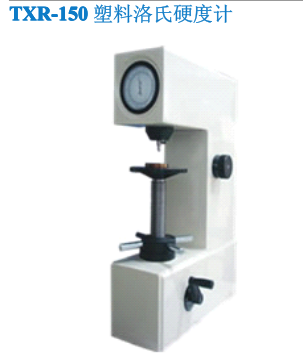

Beijing Infrared Times TXR-150 plastic Rockwell Hardness Tester operating instructions

product description:

TXR-150D Plastic Rockwell Hardness Tester adopts an automatic loading and unloading test force mechanism, and is equipped with a potentiometer that can adjust the total test force holding time. There is no man-made operation error except for the zero alignment of the disk, and it has high sensitivity and stability.

Suitable for factory floor and laboratory. Mainly measure the Rockwell hardness of plastic, hard rubber, aluminum, tin, copper, mild steel, synthetic resin, brake friction material, etc., such as HRE, HRL, HRM, HRR.

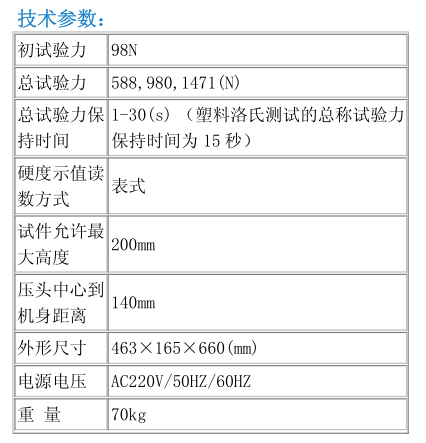

Technical Parameters

Standard configuration:

Host (1 unit), diameter Φ3.175 ball indenter (1 piece), diameter Φ3.175 ball (2 pieces), diameter Φ6.35 ball indenter (1 piece), diameter Φ6.35 ball (2 pieces), Diameter Φ12.7mm ball indenter (1 piece), diameter Φ12.7mm ball (2 pieces), large flat test stand (1 piece), small flat test stand (1 piece), V-type test stand (1 piece), standard Rockwell Block HRE (1 piece), standard Rockwell block HRL (1 piece), dust-proof plastic bag (1 piece), suction hook (1 piece), power cord (1 piece), fuse 0.5A (1 piece), product qualified certificate (1 copy), instruction manual (1 copy)
