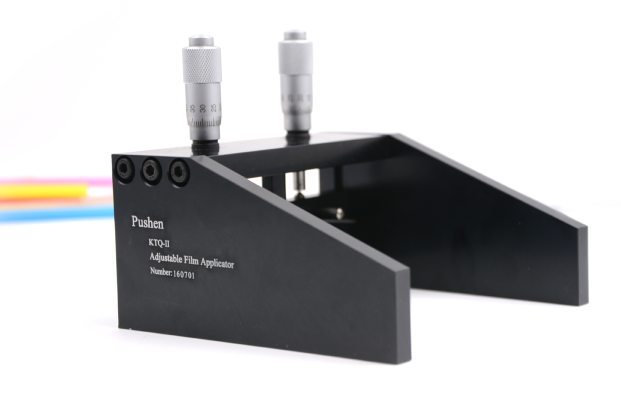

Pushen KTQ Micrometer Film Applicator

Brand: Pushen     Model: KTQ-II

1. Purpose

 The KTQ adjustable Film Applicator adjusts the two differentiators above the Film Applicator and adjusts the scraper below it up and down to control the gap, that is, the thickness of the final coating. When scraping, adjust the gap of the scraper in units of 10 μm, and the coating film ranges from 0-3500 μm.

2. Basic parameters

1. Effective scraping width: 100mm

2. Dimensions: 120×115×105mm

3. Net weight of the instrument: 450g

4. Accuracy: ±2μm

Three, use

1. The instrument is generally adjusted to the "0" position before use. If it is not at the "0" position, the instrument should be adjusted to "0" on the parallel plate. When adjusting to "0", rotate the two differentiators so that the lower end of the scraper is in line with the two The bottom surfaces of the side panels are on the same plane. At this time, the readings of the differentiator should be the same, and the "0" scale at the upper end of the differentiator is aligned with the scale line at the lower end.

2. Rotate the differentiator to adjust the scraper to the required gap, that is, the required coating thickness. Then hold the side plates at both ends and scrape on the sample plate to prepare the required coating.

3. After use, clean and dry the instrument with solvent.

4. Adjust the scraper so that the spring is in a relaxed state to reduce the fatigue of the spring. Put the instrument in the wooden box.
