Painting coating/coating system defect (defect) classification

Author: 齐祥安

Source: 现代涂料与涂装

Various defects (illages) often occur at each stage of the coating/coating system's existence . The author of "Analysis and Treatment of Coating/Coating System Defects (Ills) (I)" divides it into five stages according to the time dimension of " painting coating system". For a summary of various defects (illages), see Tables 1-5 below.

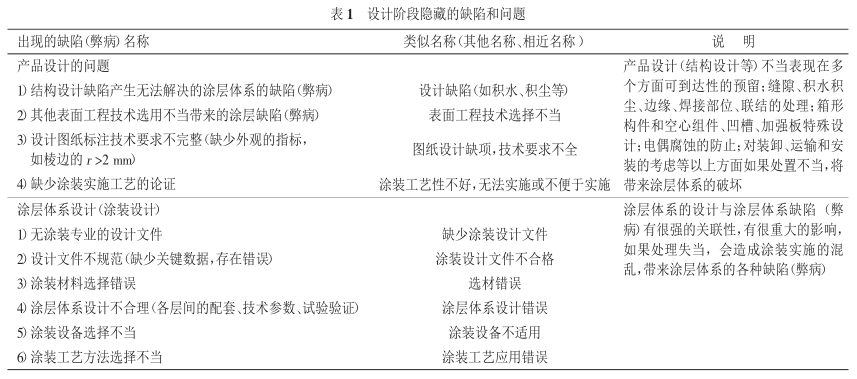

Classification of coating/coating system defects (illages) with Figure 1

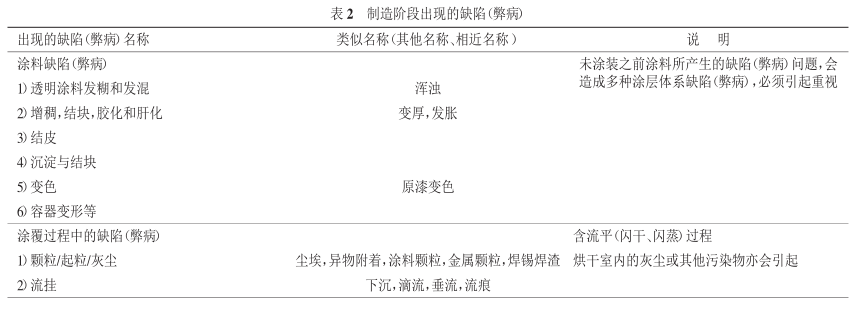

Classification of coating/coating system defects (illages) with picture 2

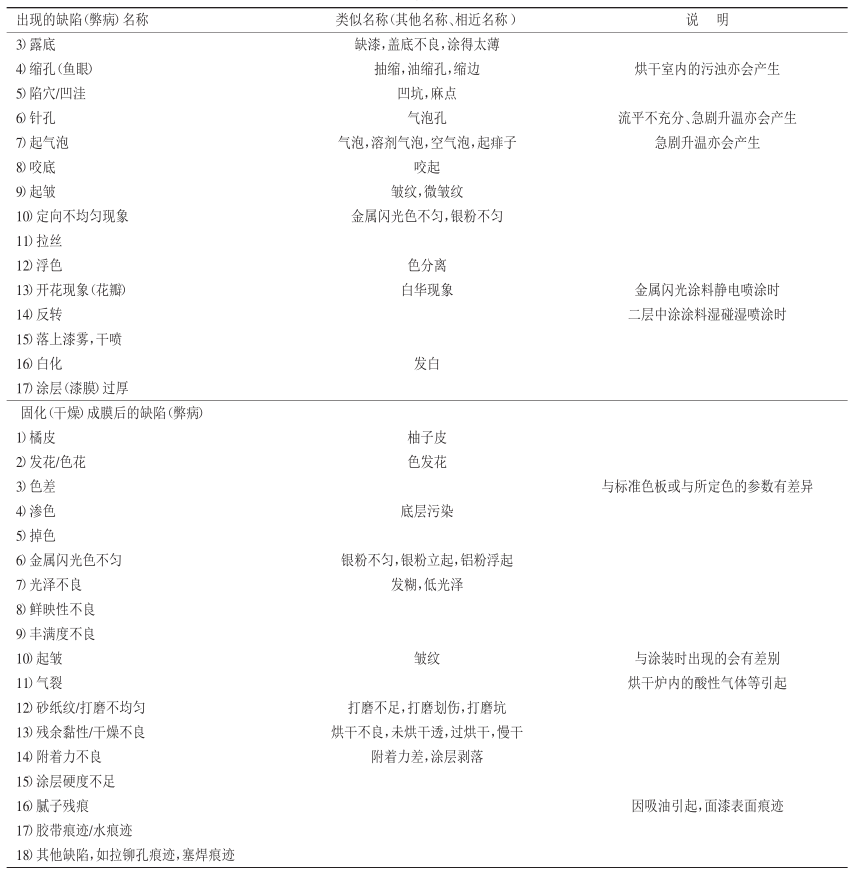

Classification of coating/coating system defects (illages) with Figure 3

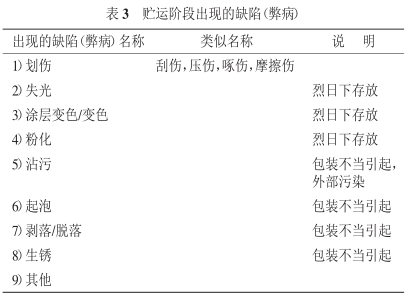

Classification of coating/coating system defects (illages) with Figure 4

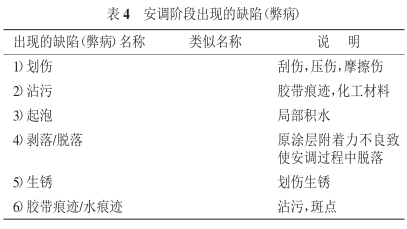

Classification of coating/coating system defects (illages) with Figure 5

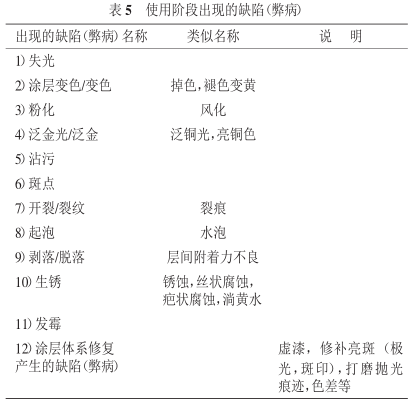

Classification of coating/coating system defects (illages) with Figure 6
