Detailed introduction of Defelsko PosiTector6000 series coating Thickness Gauges (text version)

Defelsko  PosiTector 6000 coating Thickness Gauge is a coating Thickness Gauge imported from the United States, including advanced type and standard type, which are divided into more than 50 types according to the substrate, application and probe type of the test. The host of PosiTector 6000 series Thickness Gauge is compatible with all measuring probes of PosiTector 6000 series .

Test substrate

F - ferrous metal substrate (steel, iron, etc.)

N - non-ferrous metal substrate (aluminum, copper, etc.)

FN - all metal substrates - automatic identification of substrate type and measurement

Function difference between advanced type and standard type

Standard function

★Monochrome display

★ Store 250 readings, which can be browsed or downloaded

advanced features

★High contrast reversible color LCD screen

★ It can store up to 100,000 readings, which can be divided into 1,000 combined subgroups at most.

★ Transfer data to computer via USB or phone or printer via Bluetooth wireless technology.

★Scanning mode——continuous reading without lifting the probe.

★ Multiple calibration data can be stored to facilitate the measurement of different substrates

★ One-handed operation, easy to use - no need for calibration and adjustment for most of the tests,

★SSPC-PA2 function, which can judge whether the coating thickness on the surface of a large area meets the upper/lower limit specified by the user

★PSPC 90/10 function, to judge whether the coating system meets the IMO protective coating performance standard

Features

1. Easy to use

* Ready to use - no calibration adjustment required for most tests

* One-hand operation, menu navigation

* Two-color indicator light, still perform well in noisy environment

* RESET reset feature can quickly restore factory settings

2. Durable quality

* Resistant to solvents, acids, oils, water and dust, rainproof

* With anti-wear probe

* The rubber sheath with belt buckle has two functions of shock absorption and protection

* Two years quality guarantee

3. Accurate measurement

* Certificate of calibration traceable to NIST

* The built-in temperature compensation of Positector 6000 NS3 Thickness Gauge ensures the accuracy of measurement

* High resolution in Hi-RES mode can easily meet the requirements of high precision testing

* Comply with international and domestic testing standards and specifications, such as ISO and ASTM standards

4. Multipurpose

* Probes are interchangeable, compatible with all mainframes

* Multiple calibration options, including one-point and two-point calibration, known thickness, mean zero calibration

* Multiple languages ​​available

* Backlight display, easy to operate in dim environment

* Inverted display, does not hinder the normal reading when flipping the measurement

* Extendable probe cable length (up to 250 feet/75 meters), suitable for remote measurement needs

* Uses alkaline batteries or rechargeable batteries (built-in charger)

5. Powerful functions

*Continuously display/update average value, standard deviation, min/max thickness and number of readings while measuring

* When the measured value exceeds the limit set by the user, automatic sound alarm and visual alarm

* Quick Mode - Quick Test for faster testing

* USB port for quick and easy connection to PC and uninterrupted power supply, standard USB cable

* USB mass storage, stored readings and charts, can be accessed using a common PC/Mac web browser or file reader, no software installation required

* Automatic date and time stamping after each stored measurement

* With software updates, the instrument can be kept up to date

* Connect to Positector.net

Product Structure

Standards compliant

ISO 2178/2360/2808, PrEN ISO 19840, ASTM B499 / D1186 / D1400 / D7091/ E376 / G12, BS3900-C5, SSPC-PA2 and other standards

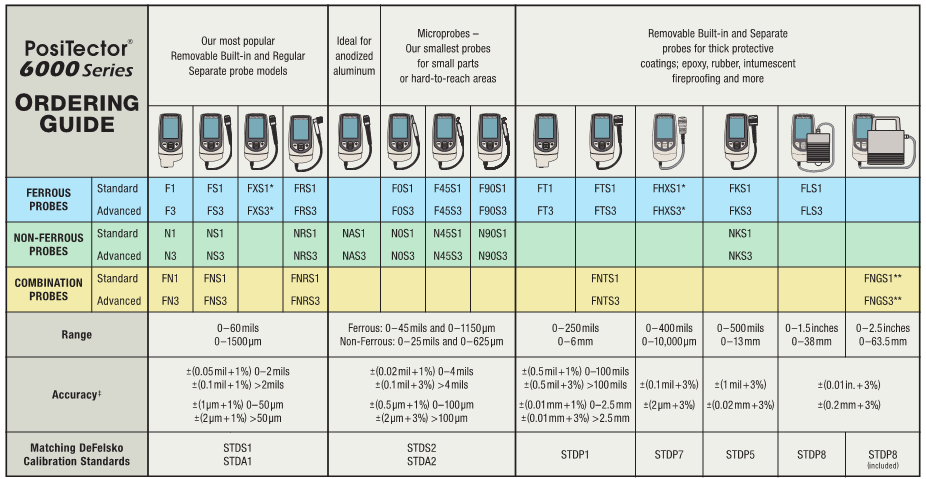

Model table
