PM-5DL Ultrasonic Thickness Gauge Model PK Imported Thickness Gauge

Author: 宇时先锋
Source: 宇时先锋
Product Image

PM-5DL High Precision Ultrasonic Thickness Gauge Model PK Imported Thickness Gauge Matching Figure 1

PM-5DL High Precision Ultrasonic Thickness Gauge Model PK Imported Thickness Gauge Matching Picture 2

PM-5DL High Precision Ultrasonic Thickness Gauge Model PK Imported Thickness Gauge Matching Figure 3

Brand model numberShenyang Yushi Pioneer / PM-5DL modelUS GE/CL5 modelAmerican DAKOTA / PX-7DL
display screen2.4QVGA (320×240) color OLED screen, contrast ratio 10000:1 (high-definition color screen)64×128 pixel LCD screen (black and white screen)4.5-digit LCD display (black and white screen)
Measuring mode and measuring range (material is steel)

The same probe can have the following four modes of measurement range

IE: pulse-echo method, range: 1.5mm-27mm

EE: echo-echo method Range: 0.25mm-13.5mm

ME-E: Multiple Wave Calibration Method Range: 0.25mm-9mm

AUTO: Automatic mode Range: 0.25mm-27mm

The measurement range is related to the selected probe
Alpha 2DFR probe range: 0.18～25.4mm
Alpha 2A Mini-DFR probe range: 0.13～5.1mm
K-Pen probe range: 0.2～4.4mm

The same probe
I-E mode, E-E mode optional
measurement range: 0.15 ~ 25.40mm
Measurement resolution0.001mm or 0.01mm or 0.1mm optional0.001mm or 0.01mm or 0.1mm optional0.001mm below 20.00mm; 0.01mm above 20.00mm
Repeat accuracy error±0.01mm±0.01mm±0.01mm
display mode

A-SCAN: You can view the measurement waveform in real time

B-SCAN: Real-time B-scanning, displaying the profile of the workpiece

A-SCAN: You can view the measurement waveform in real time
without B-scan function		No waveform viewing, B-scan function
Accessibility

Large thickness reading: (regular display view of thickness value)
Difference/reduction rate: (displays the difference between actual thickness and preset thickness and thinning percentage)
Min/max capture: simultaneously displays current thickness value, minimum thickness value and Maximum thickness value)
alarm setting: (When the measured value exceeds the preset upper or lower limit, the color of the thickness reading will be dynamically changed to alarm)

Difference/reduction ratio, Min/Max capture
No alarm setting		Alarm settings and differential mode settings
without max/min capture
Measurement update rate4HZ, 8HZ, 16HZ per second optional4, 8, 32Hz per second optional4HZ, 16HZ per second optional
storage400 files, 100,000 thicknesses and 1,000 waveformsUp to 120 filesStore 1000 measured thickness values
price195003500016900


Function display of PM-5DL ultrasonic Thickness Gauge:

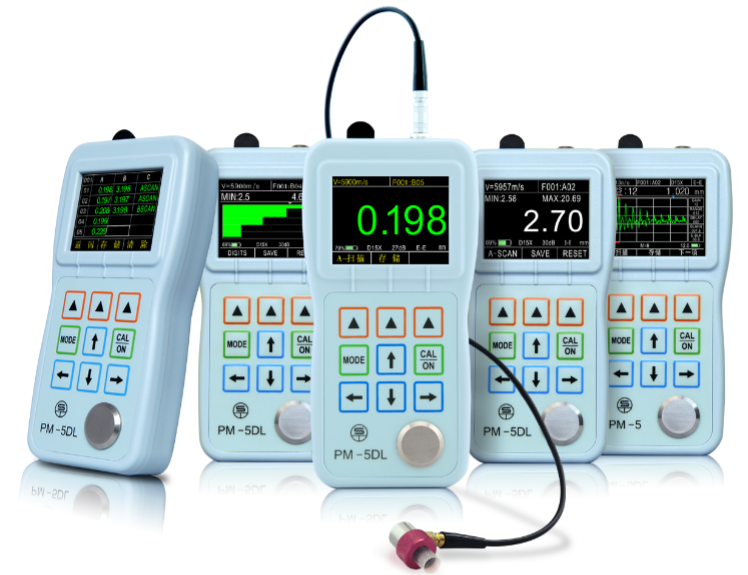

PM-5DL High Precision Ultrasonic Thickness Gauge Model PK Imported Thickness Gauge Matching Figure 4

The picture shows from left to right: storage opening interface; B-SCAN scanning interface; measuring thickness interface; difference/reduction ratio interface; A-SCAN scanning real-time waveform interface;
