TQC Coating Fineness Scraper Model Selection Chart

TQC provides 17 fineness plates with different scraping groove styles and measuring ranges, and these fineness plates provide one or more unit scales to meet a wide range of user needs. These fineness scrapers are suitable for ASTM D 1210, ASTM D 1316, JIS K 5600-2-5, ISO 1524, DIN EN 21524, BS 3900-C6 and other standards. And a detailed calibration certificate is attached to the factory to ensure that the fineness scraper generated by TQC has an accuracy of ≤2μm. Click here to buy

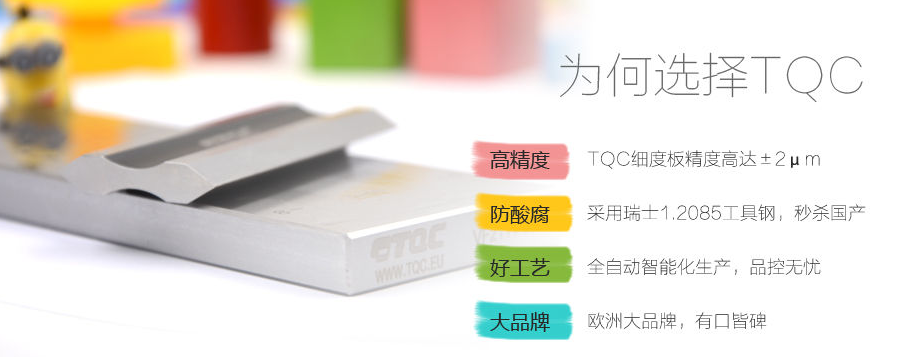

TQC Coating Fineness Scraper Model Selection Table with Figure 1

Scratch style	Range	model	µm	h	PCU
Double	0 – 15	VF2110	x	x	x
Double	0 – 25	VF2111	x	x	x
Double	0 – 50	VF2112	x	x	x
Double	0 – 100	VF2113	x	x	x
Double	0 – 250	VF2118	x	x	x
Double	0 – 500	VF2124	x
Single	0 – 15	VF2104	x
Single	0 – 25	VF2105	x
Single	0 – 50	VF2106	x
Single	0 – 100	VF2107	x
Single	0 – 250	VF2108	x
Single	0 – 500	VF2109	x
wide	0 – 15	VF2120	x	x
wide	0 – 25	VF2121	x	x
wide	0 – 50	VF2122	x	x
wide	0 – 100	VF2123	x	x
wide	0 – 250	VF2125	x	x
