UK RK KPP gravure printing proofer operating instructions

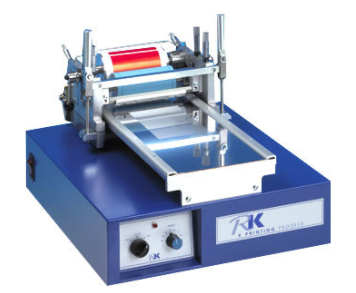

In the case of gravure, indirect gravure or aniline inks, samples can be produced quickly with the K Printing Proofer (KPP); thanks to its laser engraved printing gravure and a high printing speed of up to 40 m/min, the KPP is An important tool for liquid ink manufacturers and users. Customers can choose one or more printing plates carved through fine processing to meet their requirements.

features

• The printing speed of RK proofing machine is as high as 40m/min;

• Suitable for printing on various flexible substrates, including film, paper, sheet and aluminum foil, film, PVC, etc.;

• At the same time, the micrometer is used to control the pressure of the transfer roller and the doctor knife (control accuracy 0.01mm), which has excellent printing and proofing effect;

• For the purpose of comparison, two or more inks can also be used in the same machine at the same time, and it can also be overprinted, with positioning on the rubber roller;

• By replacing the print head assembly, flexographic proofing and composite layer proofing tests can also be realized;

• Easy to operate and clean, the workbench only occupies a space of 400×500 mm;

use

• KPP proofing machine is suitable for the production of printing samples requiring good reproducibility and sample production of computer color matching;

• Make your own product Color Chart in the company;

• R&D research and development of ink products;

• Incoming ink inspection;




Steps

1. Select the required printing plate (generally, the instrument already comes with one, no need to change);

2. Adjust the scraper so that the scraper is just in contact with the printing plate;

3. Push the gravure printing head to the starting position;

4. Put the handle at the starting position, and fix the substrate on the embossing roller with adhesive tape;

5. Set the required printing speed;

6. Turn the rotary switch to "FWD";

7. The machine will automatically stop and return to its starting position after starting and printing;

8. Use an appropriate solution to clean the scraper and printing plate in time, and wait for the next use;

Note: The scraper is very sharp, clean it carefully.
