Netherlands TQC CX2004 Furnace temperature tracker Incubator operation manual

product description

High-quality Incubator, the outer cover is made of high-quality stainless steel. The high-grade stainless steel interior is shielded with a carefully formulated mixture of insulating materials, making it suitable for long-term high-temperature resistance.

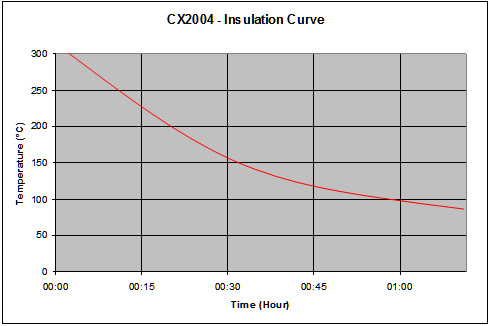

Test Conditions

The test starts at 20°C (68°F).

Specifications

Applications

The CX2004 can be used in all types of ovens up to 300°C (572°F), the recommended temperature is 100°C.

Instructions

In order to use the box correctly and prevent damage to the Curve-X2, please follow the steps below:

step one:

The following items are required

1) CX2004 insulation box

2) CX1002 Curve-X2

3) Suitable for probes with temperatures up to 300°C

Step two:

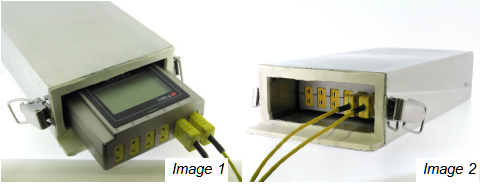

Connect the probe to the Curve-X2 and put it in the insulating box. (Figure 1 + 2)

Step three:

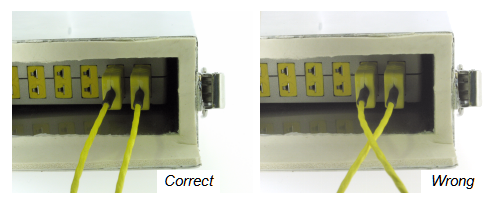

Make sure the probe's wires don't go inside - or over the edge of the box.

Step four:

Place the lid properly on top of the box. (image 3)

Make sure the lock is closed properly. (Figure 4)

Safety Instructions

Silicon is a very fragile material. Therefore, avoid touching with sharp objects as this may cause a leak.

It is recommended to wear insulating gloves when handling the Incubator.

Do not exceed the specified time under temperature limits to protect the equipment.

Always use all specified tools and follow instructions to protect equipment.

Do not overheat, crush, puncture, or otherwise damage the device, as leakage or explosion may result.
