How to choose the right model for Jinfulun JFL gloss meter?

Jinfulun has produced the JFL series specular gloss meter according to the national verification regulation JJG696 standard, which is divided into 6 different types and 16 different models according to different applications and types. Long-life light sources are used, with good repeatability, small size, high precision and good stability. It is mainly suitable for measuring the specular gloss value of coatings, painted products, printed products, stone materials, ceramics, plastics, paper, metals, enamel, decorative materials and craft accessories.

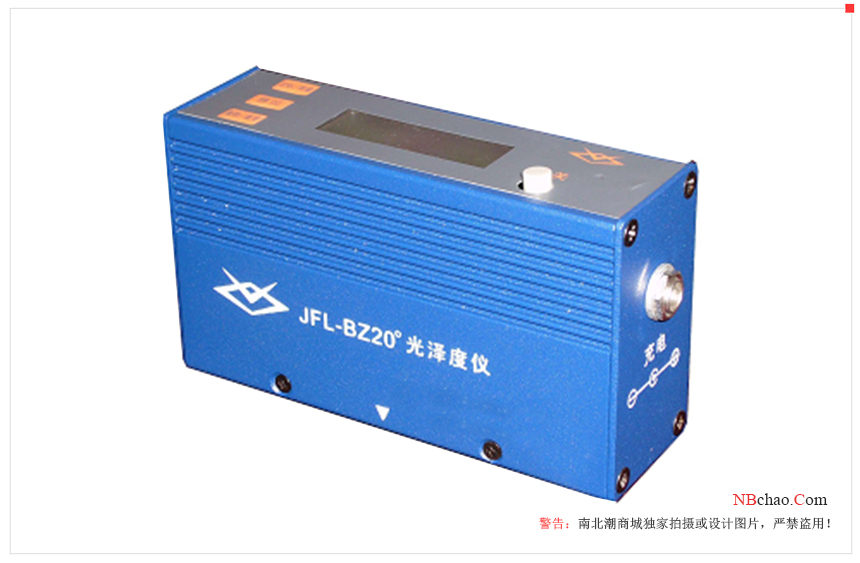

How to choose a suitable model for JFL gloss meter? Picture 1

With so many types of gloss meters from Jinfulan Gloss Meter, the average user will be confused, how to choose a model? All seem to be suitable for use, which one is more suitable?

Choose from the application

1. Universal type can measure paint, coating, printing, decoration, plastic, etc.

JFL-B60 type (60°common type), JFL-BZ60 type (60°intelligent type), JFL-BZ20 type (20°high light intelligent type), JFL-B206085 type (20°60°85°portable three-angle one common type), JFL-BZ206085 type (20°60°85° portable three-angle integrated intelligent type), JFL-BZ45 type (45° intelligent type)

JFL-B45(45°common type)

2. Used to measure stone

JFL-B60 type (60°stone)

3. Used to measure metal

JFL-B60 type (ordinary type for 60° metal), JFL-BZ60 type (smart type for 60° metal)

4. Used to measure ceramics, plastic films, enamel

JFL-B45 (45°common type), JFL-BZ45 type (45°intelligent type)

5. Used to measure paper

JFL-BZ20 type (intelligent type for 20° paper), JFL-BZ75 type (intelligent type for 75° paper)

6. Used to measure small measuring holes on curved surfaces

JFL-B60 type (60° small hole), JFL-BZ60 type (60° intelligent small hole)

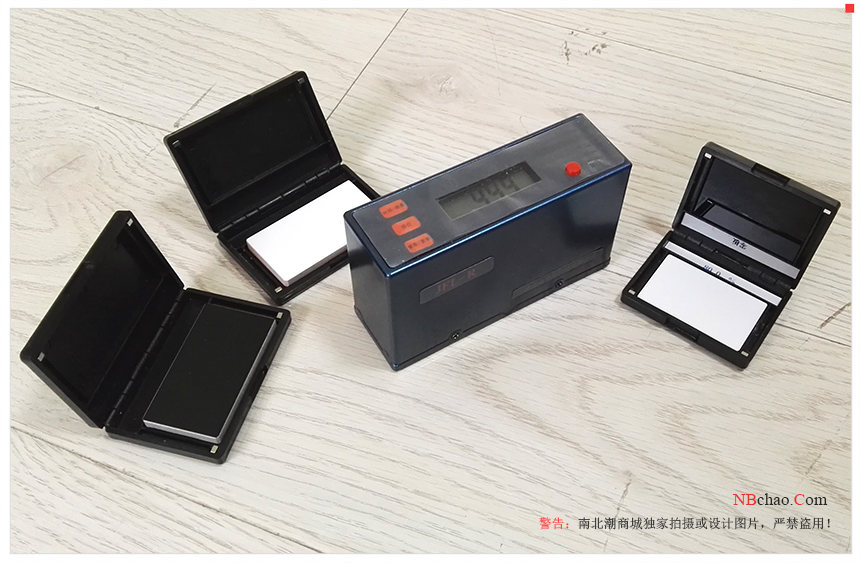

How to choose a suitable model for JFL gloss meter? Picture 2

Choose from range and function

JFL-B series is an ordinary portable specular gloss meter with a small and portable body. It can work with one AA alkaline battery and automatically adjusts to zero. JFL—BZ series is an intelligent portable specular gloss meter. It uses four small Ni-MH rechargeable batteries. It combines a single-chip microcomputer into the circuit. The display range: 0.0-300.0 (Gs) is larger than that of ordinary gloss meters. 50% (in use, no need to calibrate the nominal value as frequently as the ordinary type) is more convenient to use than the ordinary type.
三角度便携式一体智能型镜向光泽度计JFL-BZ20°60°85°，使用单片机作为电路的控制处理元件，使得切换不同角度测量时不需像普通三角度一体光泽度仪那样（每切换不同角度测量时需要重新校对标称值的繁琐工作），因此使用起来更加方便。
金属用光泽度仪JFL-BZ60的显示范围可达3000光泽度单位，基本可满足所有金属高光泽表面的测量，同时亦可适用于0-199普通光泽范围的涂料、油漆、塑料等制品表面光泽单位的测量。

从具体技术参数上选择

JFL-B型光泽度仪

	通用型60	石材用60	金属用60	塑料陶瓷45	小孔60	通用三角度
投射角度	60°	60°	60°	45°	60°	20°60°85°
显示范围（Gs）	0.0-199.9	0-199	0-1999	0.0-199.9	0.0-199.9	0.0-199.9
示值误差（Gs）	<1.2	<2	<2	<1.2	<1.2	<1.2
稳定度（Gs）	<0.4/30min	<2/30min	<2/30min	<0.4/30min	<0.4/30min	<0.4/30min
测量窗口尺寸（mm）	14 × 28 椭圆	14 × 28椭圆	14 × 28椭圆	14 × 20椭圆	1.5 × 3椭圆	16 × 48矩形
测量面积(mm)	10 × 20	10 × 20	10 × 20	10 ×14	1.5 × 3	20°:10×11；60°:10×20；85°:7×24
体积(mm)	114×35×65	114×35×65	114×35×65	114×35×65	114×35×65	138×36×82
机身重量（g）	300					400
工作电压	1.5V					4.8V
国外标准	ISO-2813、ASTM-D2457	ISO-2813、ASTM-D2457	ISO-2813、ISO-7668	ASTM-C346、ASTM-D2457	ISO-2813、ASTM-D2457	ISO-2813、ASTM-D2457
国内标准	GB9754、GB9966、GB8807	GB9754、GB9966、GB8807、GB/T13891	GB8807	GB/T3295、GB8807	GB9754、GB9966、GB8807	GB9754、GB9966、GB8807
适合测量物体（选型必看）	涂料、油漆、油墨、塑料、石材、地板、木器家俱表面	建筑饰面、石材、板材表面	主测金属同时也可测0-199范围的涂料、油漆、油墨、塑料、石材、地板、木器	塑料薄膜、陶瓷、搪瓷、漆器	钢笔、圆珠笔等笔身曲面光泽度值，以及汽车涂层表面、塑料、装饰、试验样品等被测表面具有复杂形状的表面	涂料、油漆、油墨、塑料、陶瓷、石材、纸张、金属对野外操作及无电源场地尤为方便

JFL-BZ (intelligent) gloss meter

	Universal 60	Universal 20	metal 60	paper 20	Paper 75	Small hole 60	ceramic plastic 45	Universal Triangle
projection angle	60°	20°	60°	20°	75°	60°	45°	20°60°85°
Display range (Gs)	0.0-300.0	0.0-300.0	0-3000	0.0-300.0	0.0-300.0	0.0-300.0	0.0-300.0	0.0-300.0
Indication error (Gs)	<1.2	<1.2	<2	<1.2	<1.2	<1.2	<1.2	<1.2
Stability (Gs)	<0.4/30min	<0.4/30min	<2/30min	<0.4/30min	<0.4/30min	<0.4/30min	<0.4/30min	<0.4/30min
Measuring window size (mm)	14 x 28 oval	14 x 15 oval	14 x 28 oval	14 x 15 oval	16 x 48 rectangle	1.5 x 3 ellipse	14 x 20 ellipse	16 x 48 rectangle
Measuring area (mm)	10 x 20	10×11	10 x 20	10×11		1.5 × 3	10 x 14	7×24
Volume (mm)	114×35×65				128×35×67	114×35×65		138×36×82
Body weight (g)	300							400
Operating Voltage	4.8V
foreign standards	ISO-2813, ASTM-D2457	ISO-2813, ASTM-D2457	ISO-2813, ISO-7668	TAPPI-T653, ASTM-D1834, ISO-8254.3	ISO-8254, TAPPI-T480	ISO-2813, ASTM-D2457	ASTM-C346, ASTM-D2457	ISO-2813, ASTM-D2457
domestic standard	GB9754, GB9966, GB8807	GB9754, GB8807	GB8807	GB8941.1	GB8941.3	GB9754, GB9966, GB8807	GB/T3295, GB8807	GB9754, GB9966, GB8807
Suitable for measuring objects (must see for model selection)	Coatings, varnishes, inks, plastics, stone, floors, wood and furniture surfaces	High-gloss coatings, paints, inks, plastics, stone, floors, wood furniture	(Ultra high gloss display range ) It is mainly used to measure metals, and it can also measure paints, paints, inks, plastics, stones, floors, and woods in the range of 0-199.	Paper surfaces such as high-gloss stencils	Paper surface such as coated paper	Gloss value of curved surfaces of pens, ballpoint pens, etc., and surfaces with complex shapes such as automotive coating surfaces, plastics, decorations, test samples, etc.	Plastic films, ceramics, enamel, lacquerware	Coatings, paints, inks, plastics, ceramics, stone, paper, metals It is especially convenient for field operations and places without power supply
