American RDS forming coating bar selection table [Model Daquan]

In addition to the conventional wire winding series, American RDS wire rod coaters also have forming process wire rods. Currently, there are two types of 1/4 diameter and 3/8 diameter to meet the needs of different users, of which 3/8 diameter It can be assembled and used on domestic automatic coating machines.

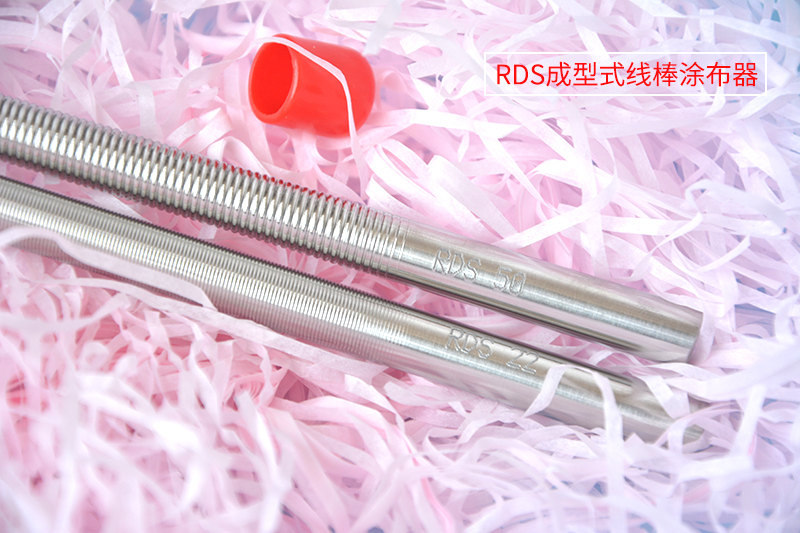

American RDS Forming Coating Rod Selection Table [Model Encyclopedia] with Figure 1

RDS Formed Coating Rod Model List

stick number	Steel wire diameter mm	wet film thickness μm	3/8"(9.50mm)	1/4"(6.35mm)
stick number	Steel wire diameter mm	wet film thickness μm	3/8"(9.50mm)	1/4"(6.35mm)
0	0	0
2	0.05	5	order	order
3	0.08	7	order	order
4	0.10	9	order	order
5	0.13	11	order	order
6	0.15	14	order	order
7	0.18	16	order	order
8	0.20	18	order	order
9	0.23	20	order	order
10	0.25	twenty two	order	order
11	0.28	25	order	order
12	0.30	27	order	order
13	0.33	30	order	order
14	0.36	32	order	order
15	0.38	34	order	order
16	0.41	36	order	order
17	0.43	39	order	order
18	0.46	40	order	order
19	0.48	43	order
20	0.51	45	order	order
twenty one	0.53	48	order	order
twenty two	0.56	50	order	order
twenty three	0.58	52	order	order
twenty four	0.61	55	order	order
25	0.64	57	order	order
26	0.66	60	order	order
28	0.71	64	order	order
30	0.76	68	order	order
32	0.81	73	order	order
33	0.84	75		order
34	0.86	77	order	order
35	0.89	80	order	order
36	0.91	82	order	order
37	0.94	85		order
38	0.97	87	order	order
40	1.02	91	order	order
42	1.07	96	order	order
44	1.12	100	order	order
45	1.14	103	order	order
46	1.17	105	order
47	1.19	107		order
48	1.22	110	order	order
49	1.24	112		order
50	1.27	114	order	order
52	1.32	120	order
54	1.37	123
55	1.40	125	order	order
60	1.52	137	order	order
65	1.65	150	order	order
70	1.78	160	order	order
75	1.91	171	order	order
80	2.03	183		order
85	2.16	194		order
90	2.29	205		order
95	2.41	217		order
The total length of the RDS coating rod is 400mm, the effective coating width is 300mm, and it is made of stainless steel.
