Which wire rod applicator can be used interchangeably with the OSP-30/400?

Abstract: 本文讨论了与OSP-30/400线棒涂布器可替换使用的其他型号及其区别。OSP-30/400是一款不锈钢涂布线棒，涂膜厚度为30μm，涂布宽度为300mm。除了OSP的同类产品（如OSP-30/60和OSP-30/250），还有来自RDS的几种型号，包括绕丝式和挤压式工艺的涂布棒，这些型号具有不同的涂布宽度和工艺特点。还有来自永潮科技的D10-YC030-L400mm实验涂布计量棒，具有相似的涂膜厚度，但在长度和手握宽度上有所不同。这些不同的型号提供了多种选择，以满足用户在涂布实验中的具体需求。

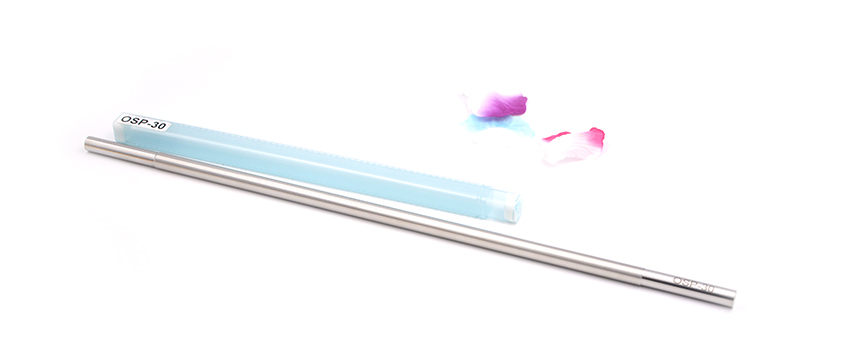

Which wire Bar Coater can be used instead of OSP-30/400? Picture 1

OSP wire Bar Coater is an extruded stainless steel coating wire bar. OSP-30/400 has a coating film thickness of 30μm and a coating width of 300mm. And it can be coated on an automatic film coating machine. Although many coating experiments require the same 30μm, but because different users have different perceptions and trusts in brands, different requirements for coating, and different requirements for grades, there are many types of wire Bar Coaters that need to be selected. Different brands and models are used for reference, and the model that meets the overall needs of users is selected.

This issue of the editor is mainly to share which other models in the industry can be replaced with OSP-30/400, and what are the specific differences.

At present, imported American RDS, British RK and domestic wire rods all have rod numbers that can scrape and coat 30μm film thickness, and have the following rod numbers.

Membrane Proofing- Membrane
Which wire Bar Coater can be used instead of OSP-30/400? Picture 2OSP OSP-30/60 Wire Bar Coater L60
Specification parameters: production process extrusion type, wet film thickness 30μm, diameter 10mm, total length 60mm, coating width 60mm, hand grip width 0, material 304 stainless steel
Which wire Bar Coater can be used instead of OSP-30/400? Picture 3OSP OSP-30/250 Coating Stick L250
Specification parameters: production process extrusion type, wet film thickness 30μm, diameter 10mm, total length 250mm, coating width 250mm, hand grip width 0, material 304 stainless steel
Which wire Bar Coater can be used instead of OSP-30/400? Picture 4RDS 13# 1/4" coating stick 1/4"
Specification parameters: production process wire winding type, wet film thickness 29.7μm, diameter 6.35mm, total length 400mm, steel wire diameter 0.33mm, coating width 300mm, hand grip width 50mm, material stainless steel
Which wire Bar Coater can be used instead of OSP-30/400? Picture 5RDS 13# 3/8" coating stick 3/8"
Specification parameters: production process wire winding type, wet film thickness 29.7μm, diameter 9.52mm, total length 400mm, coating width 300mm, hand grip width 50+50mm, material stainless steel, steel wire diameter 0.33mm
Which wire Bar Coater can be used instead of OSP-30/400? Picture 6RDS 13# 1/4" Form Coating Stick 1/4"
Specification parameters: production process extrusion type, wet film thickness 29.7μm, diameter 6.35mm, total length 400mm, coating width 300mm, hand grip width 50+50mm, material stainless steel
Which wire Bar Coater can be used instead of OSP-30/400? Picture 7RDS 13# 3/8" Form Coating Rod 3/8"
Specification parameters: production process extrusion type, wet film thickness 29.7μm, diameter 9.52mm, total length 400mm, coating width 300mm, material stainless steel
Which wire Bar Coater can be used instead of OSP-30/400? Picture 8Yongchao Technology D10-YC030-L400mm experimental coating metering rod
Specification parameters: production process extrusion type, wet film thickness 30μm, diameter 10mm, total length 400mm, coating width 310mm, hand grip width 45+45mm, material stainless steel 304, surface technology chrome plating

The film thickness of the above wire Bar Coaters is 30μm, but the length and process of the wire bar are different. For example, RDS has a wire-wound process, and OSP has two coating widths of 60mm and 250mm.
