Tide Review: Coating Thickness Gauge PosiTector 6000 FS1

Abstract: 本文介绍了来自美国Defelsko的PosiTector 6000 FS1涂层测厚仪的主要特点和技术参数。这款测厚仪符合多项标准，包括ISO 2178/2360/2808和ASTM B499/D1186等，适用于钢铁基材和各种涂层（如醇酸、丙烯酸、环氧等），其测量范围为0~1500μm，误差范围为±1%，分辨率为0.1μm。设备配备FS1探头，具有高精度、良好的密封性和防水能力，适合各种测试环境。PosiTector 6000 FS1使用3节AAA碱性电池，具备数据存储和统计功能，操作界面为2.8英寸彩色触摸屏，并支持USB数据接口。文章还提到该仪器具有IP65防护等级，并配有PosiSoft软件套件用于数据处理。总的来说，PosiTector 6000 FS1以其高性价比和耐用性受到了用户的好评。

Does this coating Thickness Gauge meet ASTMB499 standards? The substrate is: steel (tinplate); can the multilayer coating be tested? (Generally alkyd, acrylic, epoxy, etc.) The coating thickness ranges from 25-200 microns. Is this paint Film Thickness Gauge suitable? How many batteries do I need for the PosiTector 6000 FS1 Coating Thickness Gauge? Users often come to Xiaochao with questions. In this issue, Beichao also complains about this American-made coating Thickness Gauge.

The technical parameters of the coating Thickness Gauge are like the measurements of a person.

Measuring principlemagnetic induction
Measuring range0~1500μm
tolerance scope±1%
resolution0.1μm
probeFS1 probe (general purpose)
Statistical functionContinuously displays/updates average, standard deviation, min/max and number of readings
Icon functionnone
power supply3*AAA alkaline batteries
fulfill the standardISO 2178/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2, etc.
Calibration certificatehave
system languageChinese English
display screen2.8 inch color touch screen
Data interfaceUSB
supporting softwarePosiSoft software suite
Total Weight137g (without battery)
Overall size127*66*25.4mm
data storage1000 measured values
test environmentFerrous metal substrates Non-magnetic coating environment
screen image save100
degree of protectionIP65
measuring speed60+ readings per minute

6000 FS1 Coating Thickness Gauge Specification Parameter Sheet

Through the big data of the northern and southern tides, similar specifications include the MC-2000A Thickness Gauge of Kedian Instrument, the PosiTector 6000 FS3 coating Thickness Gauge of Defelsko and the PosiTector 6000 FNS1 coating Thickness Gauge of Defelsko, etc. The technical comparison can be made through the north and south tide system In direct comparison, the coating Thickness Gauge PosiTector 6000 FS1 impresses deeply as the classic and best-selling model of Defelsko. The standard probe is well sealed and waterproof, with high precision and low fluctuation, and is particularly durable. The whole machine is cost-effective. Table name: PosiTector

In the past year, 7587 users have learned about Beichao in detail. Xiaochao’s brothers and sisters also took a set of physical pictures of PosiTector 6000 FS1 for you, let’s enjoy together!

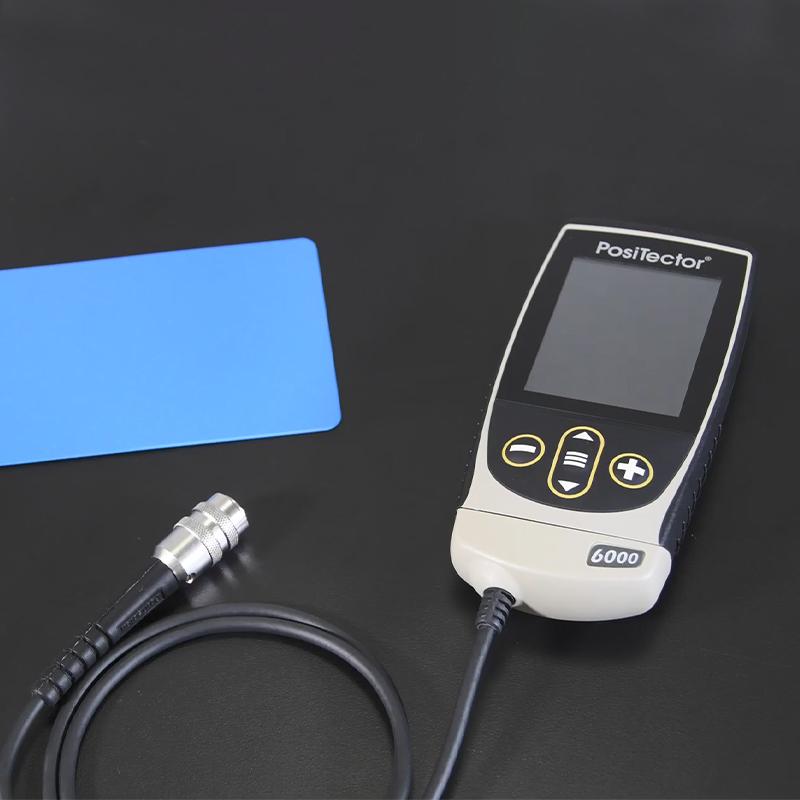

Tide review: Coating Thickness Gauge PosiTector 6000 FS1 with picture 1

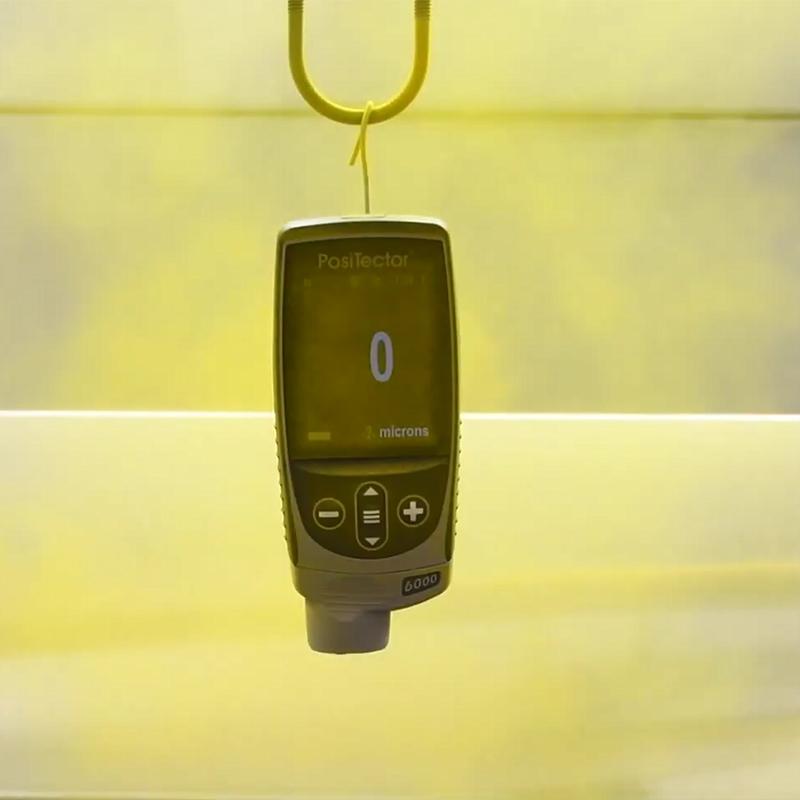

Tide review: Coating Thickness Gauge PosiTector 6000 FS1 with picture 2

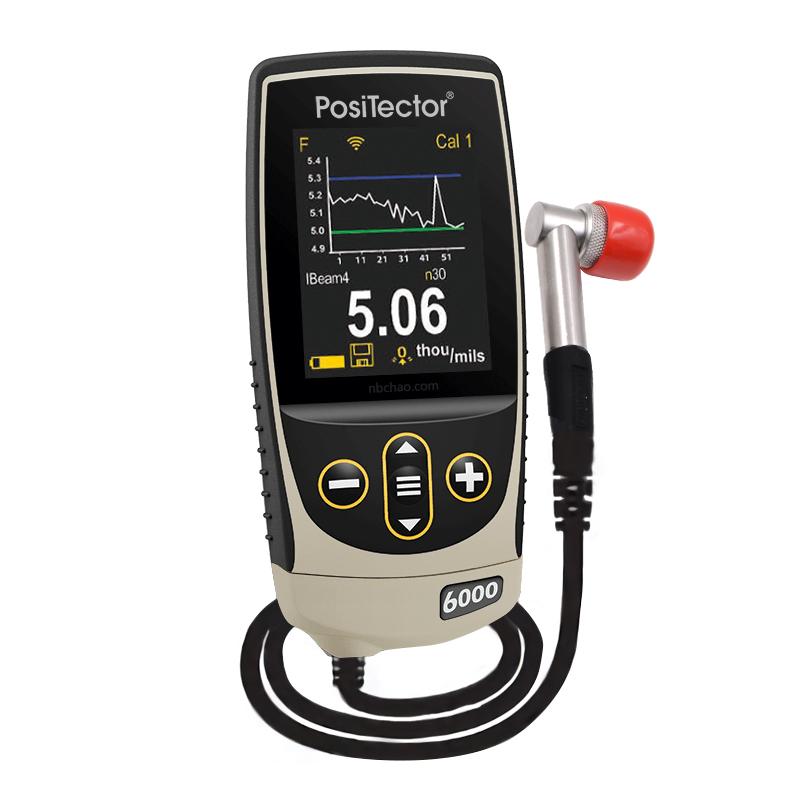

Tide review: Coating Thickness Gauge PosiTector 6000 FS1 with picture 3

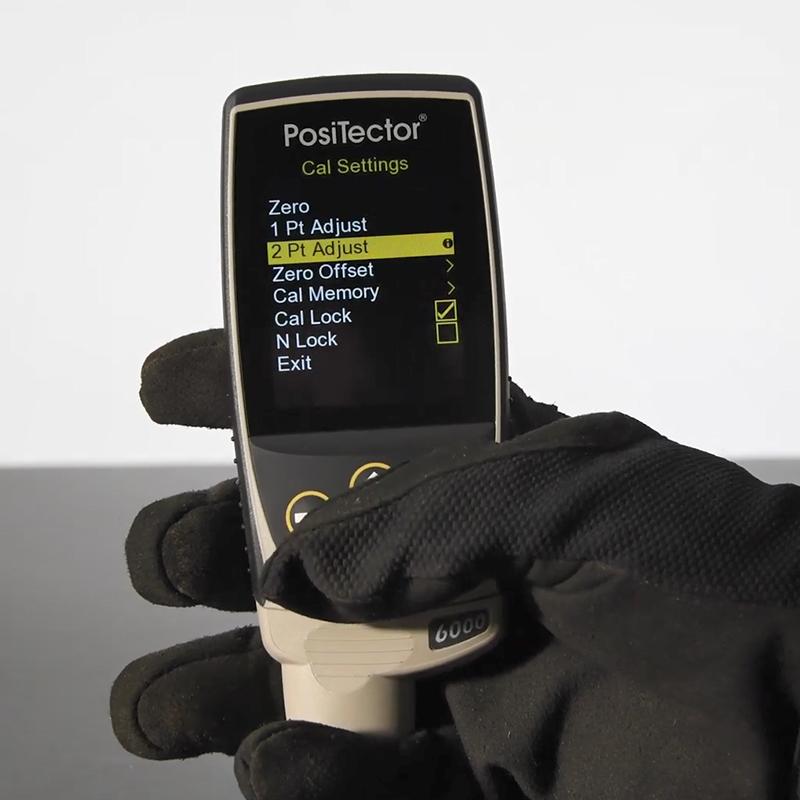

Tide review: Coating Thickness Gauge PosiTector 6000 FS1 with picture 4

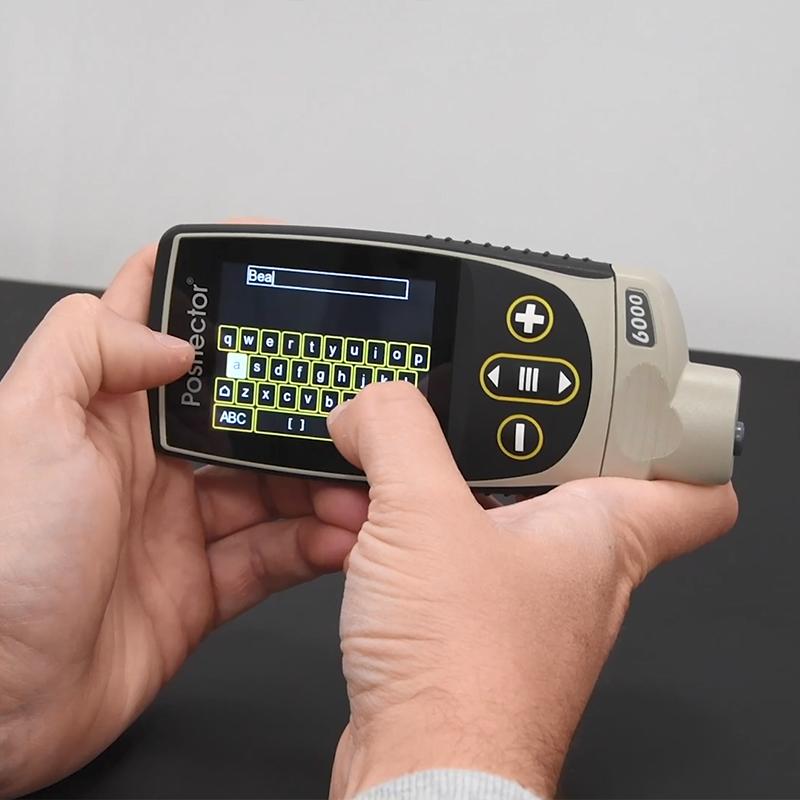

Tide review: Coating Thickness Gauge PosiTector 6000 FS1 with picture 5

So, is this Defelsko coating Thickness Gauge good or not, and what is its quality? Xiaochao is not stupid, brothers and sisters say that existence is useful. Different coating Thickness Gauges are used in different conditions and environments, and the right one is the best. Also remember that the PosiTector 6000 FS1 has a 365-day warranty period in Beichao, including host x1, split probe x1, standard test piece (set) x1, rubber protective case with waist clip x1, AA battery x3, certificate x1, Manual x1, nylon bag x1, don't say I didn't tell you!
