Tide Review: Spectrophotometer Ci60

Abstract: 本文评测了爱色丽Ci60分光光度计,详细介绍了其技术规格和功能。Ci60符合GB/T 1766标准,具有d/8°测量结构,能够进行光泽度检测和色彩分析。该仪器的测量口径为8mm,光谱范围为400~700nm,光谱间隔为10nm。它支持存储多达4000个样品和1000个标准数据,数据格式为CSV。Ci60配备充气钨丝灯光源,具有约500,000次的光源寿命。该分光光度计提供多种颜色空间和观测光源,操作语言包括多种国际语言,电池寿命可达1000次测量。设备在南北潮平台上已有1064个用户关注,提供365天质保,包括相关配件和操作手册。

Does X-Rite Spectrophotometer meet the standard of GB/T1766? How much data can this X-Rite Spectrophotometer store? Users often come to Xiaochao with questions. In this issue, Beichao also complains about this Spectrophotometer made in the United States.

The technical parameters of the Spectrophotometer are like the measurements of a person, so Xiaochao is too lazy to waste his words and directly exposes the table

Short Term Repeatability - White10 ΔE*ab (on white tile)
measurement structured/8°
Difference between stationsΔE*ab≈0.4
Lighting Caliber14mm
Light source lifeApproximately 500,000 measurements
Observe the light sourceGas-filled tungsten lamp
Measuring cycle time≈ 2 seconds
Measuring caliberΦ8mm
measure time≈ 2 s
Photometric range0~200%T
Photometric resolution0.0001
Spectrum AnalyzerBlue Enhanced Silicon Photodiode
spectral interval10nm
wavelength range400~700nm
Spectrum report10nm
color difference[√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, ΔL*C*h°, ΔL*u*v*, text difference
color spaceLab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v*
Observe the light sourceA, C, D50, D65, F2, F7, F11 & F12
viewing angle2°&10°
reflective aperture1
humidity range5~85% (non-condensing)
Operating temperature10~40°C
storage environment-20~50℃
Dimensions213*91*109mm
weight1.06kg
input/output formatCSV
display screenBacklit color graphic LCD
operating languageEnglish, German, French, Spanish, Italian, Portuguese, Simplified Chinese, Traditional Chinese, Korean, and Japanese
software development kitXDS4
voltagelithium battery
Battery Life1000 measurements @ 10 second interval
voltage100-240VAC 50/60Hz, 12VDC @ 2.5A
Sample/Measurement4000
standard1000
Calibration methodwhite, zero
sample previewtarget window
Conformity inspectionhave
conversion supportEmbedded

Table name: Ci60 Spectrophotometer specification parameter table

Through the big data of the northern and southern tides, CS-410 Spectrophotometer with similar specifications, BYK's BYK 6801 spectroscopic color wizard and 3nh's TS7030 Spectrophotometer , etc., technical comparison can be directly compared through the north and south tide system, the Ci60 The most impressive Spectrophotometer is the entry-level integrating sphere Spectrophotometer , which can detect gloss, with a test aperture of 8mm; d/8 measurement structure; X-Rite’s hot-selling entry-level Spectrophotometer , with simultaneous output SPIN / SPEX measurement capacity; gas-filled tungsten light source.

In the past year, 1064 users have learned about Beichao in detail. Xiaochao’s brothers and sisters also took a set of pictures of the Ci60 for everyone, let’s enjoy together!

Tide review: Spectrophotometer Ci60 with picture 1

Tide review: Spectrophotometer Ci60 with picture 2

Tide Review: Spectrophotometer Ci60 with Figure 3

Tide review: Spectrophotometer Ci60 with picture 4

Tide Review: Spectrophotometer Ci60 with Figure 5

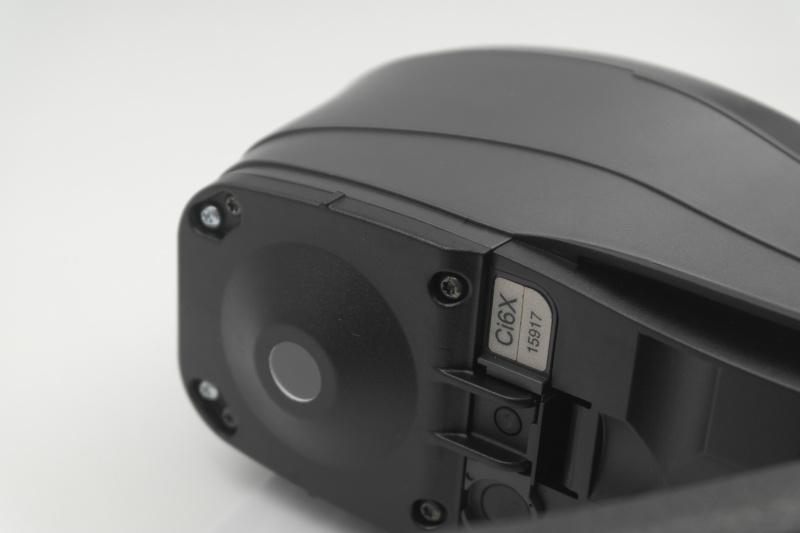

Tide Review: Spectrophotometer Ci60 with Figure 6

Tide Review: Spectrophotometer Ci60 with Figure 7

Tide Review: Spectrophotometer Ci60 with Figure 8

So, is this X-Rite Spectrophotometer good or not, and what is its quality? Xiaochao is not stupid. Brothers and sisters say that existence is useful. Different conditions and environments use different Spectrophotometer s, and the right one is the best. Also remember that the Ci60 has a 365-day warranty period in the North and South Tide, including white calibration standard instrument X1, black tube X1, operation manual (CD) X1, AC adapter X1, suitcase X1, don’t say I didn’t tell you!
