Tide review: Gloss meter YG268

Abstract: 本文评测了3nh的YG268三角度光泽仪。该光泽仪具备20°、60°和85°三种测量角度，支持测量范围从0到2000GU，分度值为0.1GU，并且可以存储多达35,000条数据。其校准方式包括开机自动检验和手动校准，符合JJG 696一级工作光泽度仪要求。YG268具备自动关机功能，操作语言支持简体中文、英语和繁体中文，且配有GQC6品质管理软件，支持多种测量模式。该仪器的存储容量和精准度使其适用于广泛的应用领域，包括油漆、涂料、纸张、塑料、家具等。文章还提到，YG268在南北潮平台上已有1049个用户详细了解，并提供了实物图和质保信息。

How many sets of measurement data can 3nh's YG268 three-angle gloss meter store? Our laboratory technology requires a large capacity. What is the calibration of the three-angle gloss meter of Sanenchi? automatic? Does the 3nh gloss meter meet the ISO2813 standard? Users often come to Xiaochao with questions. In this issue, Beichao also complains about this gloss meter made in CHINA.

The technical parameters of the gloss meter are like the measurements of a person, so Xiaochao is too lazy to talk about it and just shows the meter directly

measuring angle20°/60°/85°
Measuring spot9*10mm(20°); 9*15mm(60°); 5*38mm(85°)
Measuring range20°: 0~2000GU 60°: 0~1000GU85°: 0~160GU
Division value0.1GU
characteristicIt can be used for gloss measurement and gloss data transmission in paint ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
measurement modeBasic mode, statistical mode, continuous mode, quality control mode
measure time0.5s
repeatability0~100GU:±0.2GU ; 100~2000GU:±0.2%GU
accuracyMeet the requirements of JJG 696 first-class working gloss meter
Auto shutdown time30~120 seconds optional
calibrationAutomatically check and calibrate after power on/manually calibrate
operating languageSimplified Chinese, English, Traditional Chinese
data storage35,000 records (15,000 records in basic mode and continuous mode, 10,000 records in quality control mode, and 10,000 records in statistical mode)
display screen2.3 inch black and white display
Dimensions160*52*84mm
weightAbout 300g (including calibration box and battery)
power supply1 AA battery (AA alkaline battery or Ni-MH rechargeable battery), which can be tested more than 10,000 times; or use the USB port
Data interfaceUSB, Bluetooth® 2.1
softwareGQC6 quality management software, quality inspection report printing, more function expansion
Operating temperature0~40°C (32~104°F)
storage temperature-20~50°C (-4~122°F)
Working humidityLess than 85%RH, no condensation

Table name: YG268 gloss meter specification parameter table

Through the big data of the North and South Tide, similar specifications include Lantai's GM-2000 gloss meter, Caipu's CS-380 gloss meter and Keshijia's MG268-F2 intelligent gloss meter, etc. Technical comparisons can be made directly through the North and South Tide system In comparison, the YG268 gloss meter is impressed by the three-angle detection and automatic calibration, which meets the requirements of JJG696 first-class gloss meter; 35,000 large-capacity storage; standard quality management software, supporting multiple measurement modes.

In the past year, 1049 users have learned about Beichao in detail. Xiaochao’s brothers and sisters also took a set of physical pictures of YG268 for everyone, let’s enjoy together!

Tide review: Gloss meter YG268 with picture 1

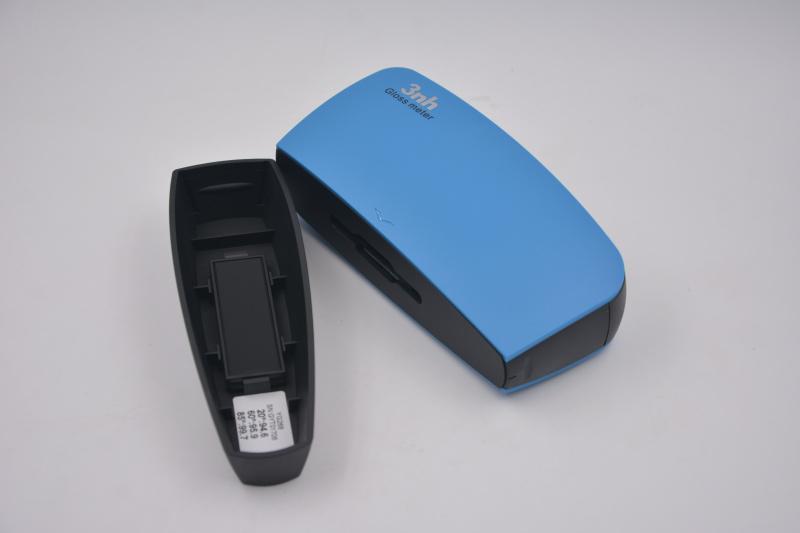

Tide review: Gloss meter YG268 with picture 2

Tide review: Gloss meter YG268 with picture 3

Tide review: Gloss meter YG268 with picture 4

Tide review: Gloss meter YG268 with picture 5

Tide review: Gloss meter YG268 with picture 6

So, is this 3nh gloss meter good or not, and what is its quality? Different conditions and environments use different gloss meters, and the right one is the best. In addition, remember that the warranty period of YG268 in Beichao is 730 days, including gloss meter, USB data cable, manual, GQC quality management software (download required), calibration board, don’t say I didn’t tell you!
