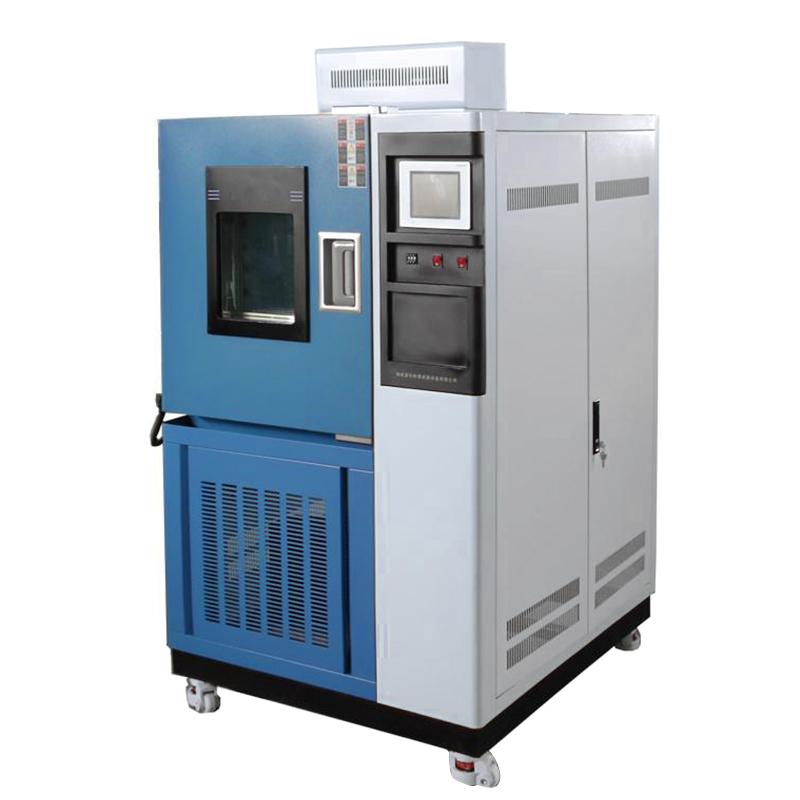

Main parameters and operation of temperature and humidity Test Chamber

Abstract: 温湿度试验箱的主要参数包括温度范围从-70°C到+150°C，湿度范围从20% RH至98% RH，具备0.1°C的温度波动精度。设备可以以每分钟3°C到5°C的速率升温，并通过微电脑控制系统实现精确的温湿度设定和自动调节。试验箱的结构包括空气循环系统、加热和冷却系统、加湿和除湿系统、供水系统（带缺水报警）、控制面板、数据存储装置等。操作时，用户可根据需求选择不同型号，以满足特定测试条件。温湿度试验箱广泛应用于实验室测试、过程工业和其他工业领域，具有结构紧凑、安装方便和维护简单的特点。

The main parameters

  • There are many functions and characteristics of the temperature and humidity cabinet, but the most important points are as follows:

  • Temperature range: -70°C+150°C (-40°F300°F).

  • Humidity range: 20% RH to 98% RH

  • 0.1°C temperature fluctuation

  • Heating rate (average): 3°C/min 5°C/min(3°C/min 5°C/min)

  • The microcomputer control system in the humidity control room can set different working conditions through the simple operation interface and self-diagnosis function.

  • The humidity environment Test Chamber realizes automatic control through the built-in microcomputer system, which not only can set the size of the three working conditions (temperature and humidity) according to the requirements of the test samples, but also can automatically adjust the output power in real time. Time changes according to the ambient temperature, so that the sample is controlled in a constant temperature and humidity state.

  • In addition, it is also equipped with a high-precision digital display indicating device. The whole machine is compact in structure, easy to install and easy to maintain.

operate

  • Air circulation system, heating system, cooling system, humidification system (dehumidification system), water supply system (water shortage alarm), control panel display device, data storage device, etc. constitute the Temperature Test Chamber.

  • Customers can choose different models according to their specific needs to meet their needs.

  • The Incubator consists of air circulation system, heating system, cooling system, humidification system (dehumidification system), water supply system (with water shortage alarm), control panel display device, data storage device, etc.

  • Customers can choose models that meet specific needs according to their own needs.

  • The temperature chamber is equipped with an air circulation system that can replace external air.

  • The heating/cooling system keeps the chamber at a constant temperature;

  • Humidification/dehumidification system to maintain constant indoor relative humidity;

  • Water supply system (water shortage alarm), to ensure the smooth operation of all circuit components specified by customers;

  • A device that displays real-time data such as temperature and relative humidity values of the entire Test Chamber on the control panel;

  • Data storage devices are used to save data for future use.

  • Temperature stabilization chambers are used in a wide variety of applications including laboratory testing, process industry testing, and other industrial applications.
