Electrophoresis film defects (defects) and their prevention

Due to the uniqueness of the electrophoretic coating method, although the defects of the coating film produced are the same as those of the general paint film, the etiology and prevention methods are different, and some disadvantages are unique to the electrophoretic coating. The names, phenomena, causes and prevention methods of common electrophoretic coating defects (14 types) are listed in Table 7-1-2, and the inspection points when electrophoretic coating defects occur are listed in the table.

For example: the PH value of the bath solution (relevant instrument: PH meter) is too high, and alkaline substances are mixed in, as if the coating film is too thick (relevant instrument: coating Thickness Gauge), etc., see the following table for details:

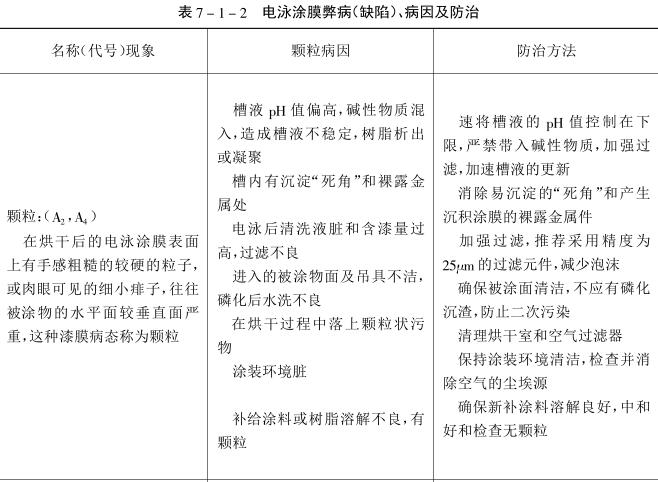

Electrophoretic coating disadvantages (defects) and their prevention with Figure 1

Defects (defects) of electrophoretic coatings and their prevention with Figure 2

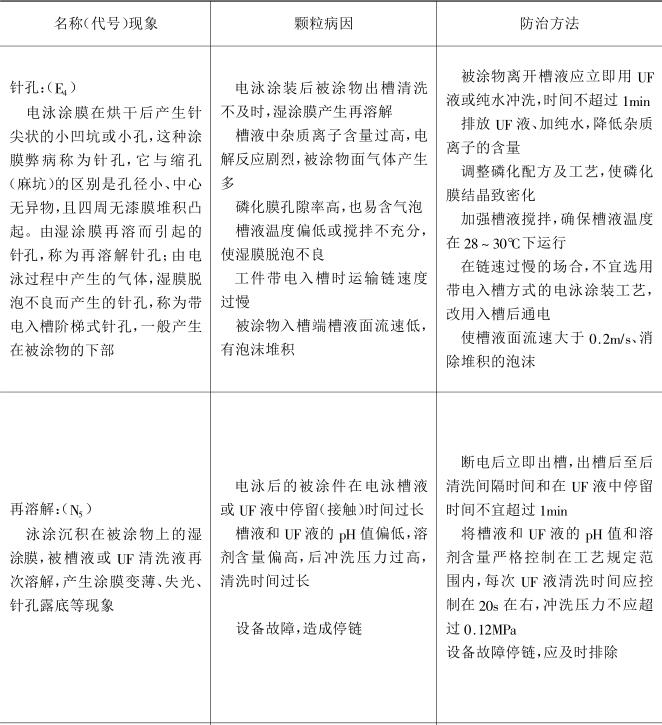

Defects (defects) of electrophoretic coatings and their prevention with Figure 3

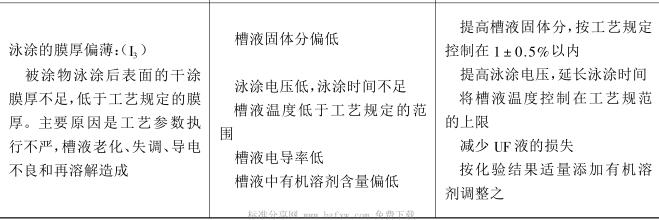

Defects (defects) of electrophoretic coatings and their prevention with Figure 4

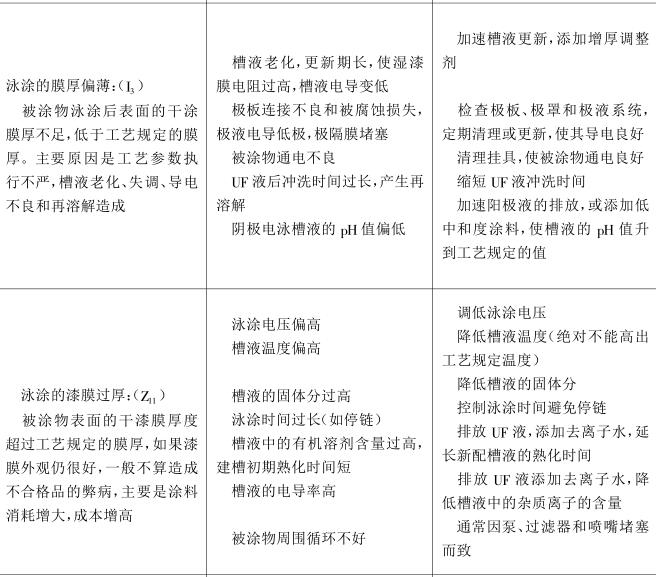

Electrophoretic coating disadvantages (defects) and their prevention and control Figure 5

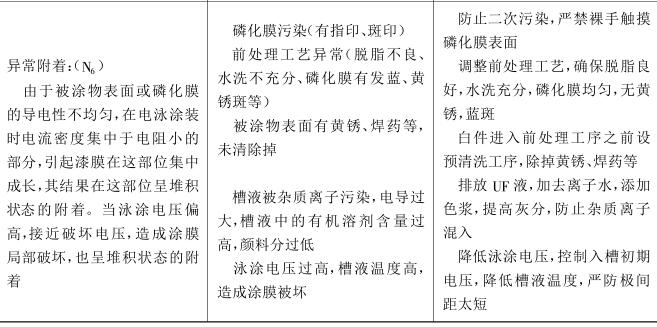

Electrophoretic coating disadvantages (defects) and their prevention with Figure 6

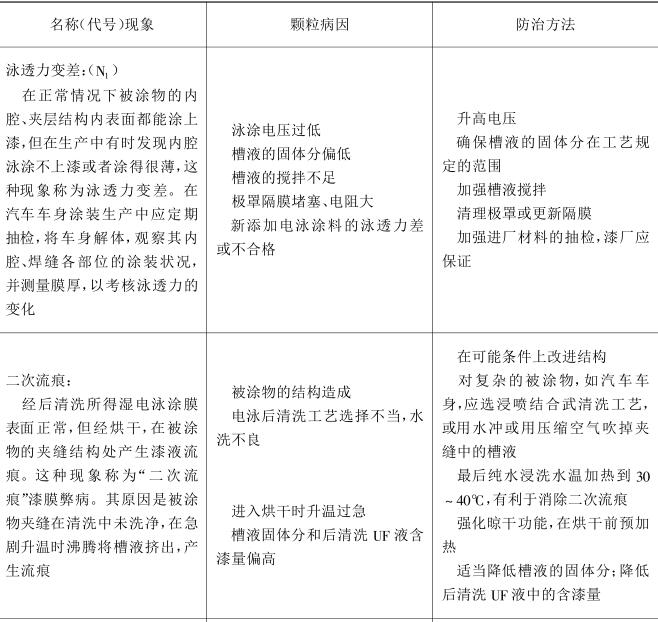

Electrophoretic coating disadvantages (defects) and their prevention with Figure 7

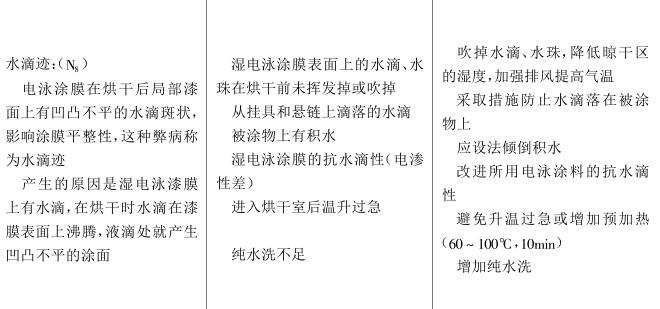

Defects (defects) of electrophoretic coatings and their prevention with Figure 8

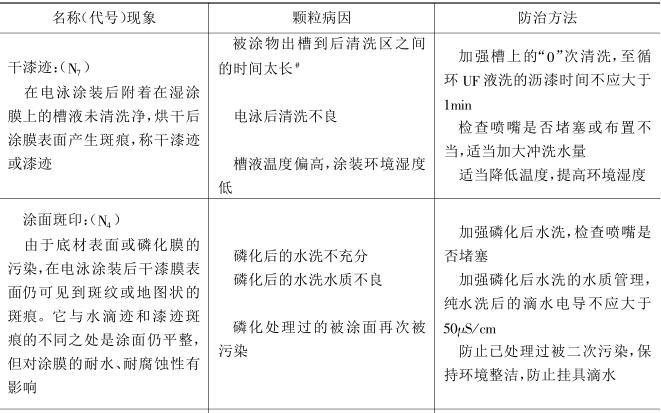

Electrophoretic coating disadvantages (defects) and their prevention with Figure 9

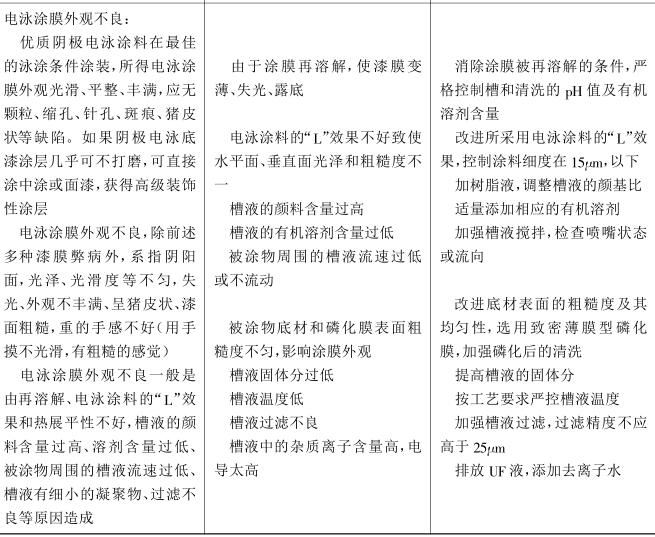

Defects (defects) of electrophoretic coatings and their prevention with Figure 10

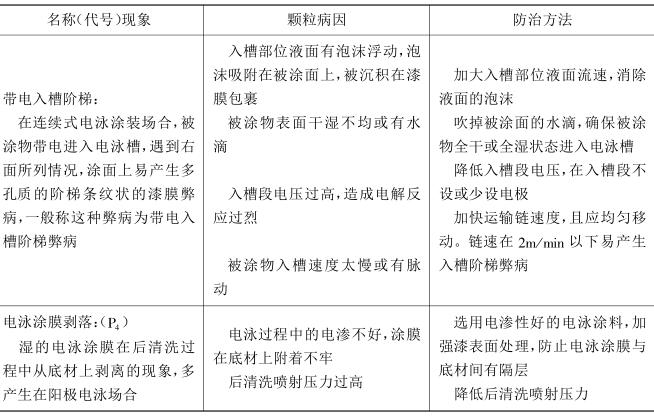

Electrophoretic coating disadvantages (defects) and their prevention with Figure 11

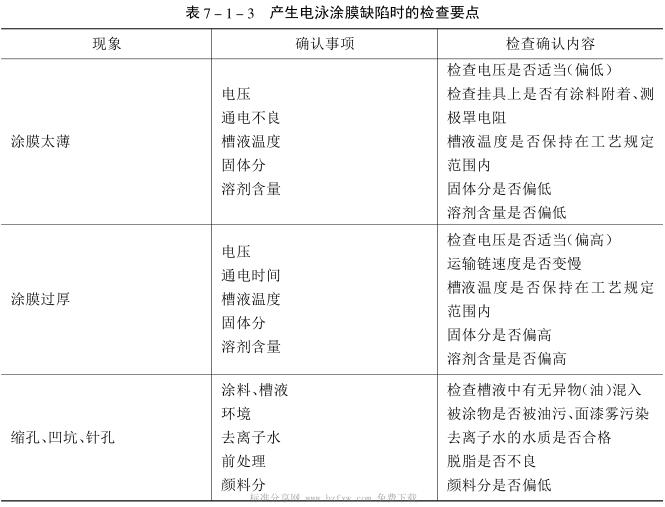

Electrophoretic coating disadvantages (defects) and their prevention with Figure 12

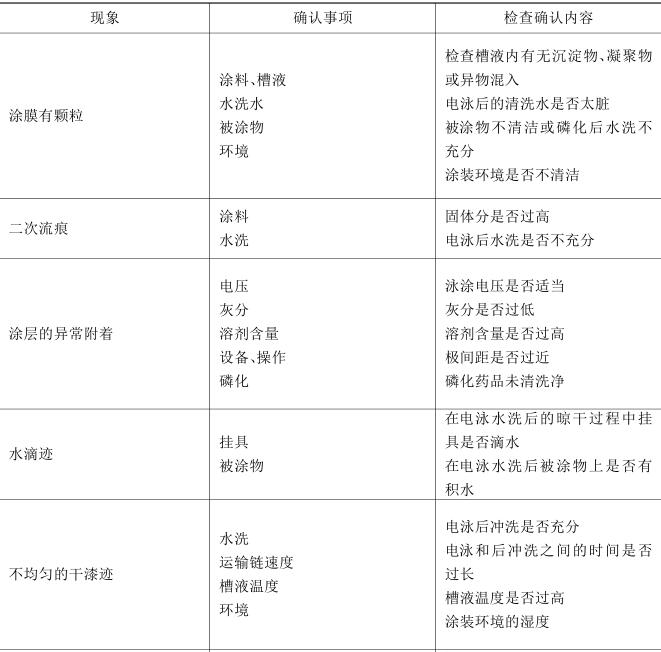

Electrophoretic coating disadvantages (defects) and their prevention and control Figure 13

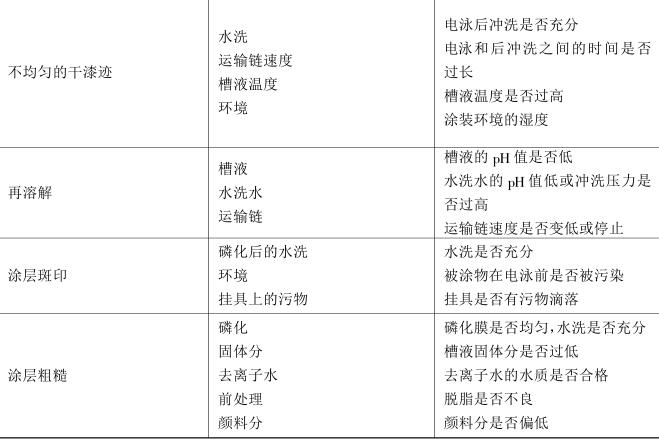

Electrophoretic coating disadvantages (defects) and their prevention and control Figure 14

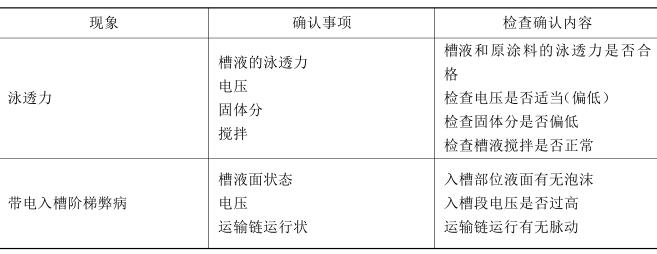

Electrophoretic coating disadvantages (defects) and their prevention and control Figure 15
