Working Principle, Failure and Application of Thermal and Cold Shock Test Chamber

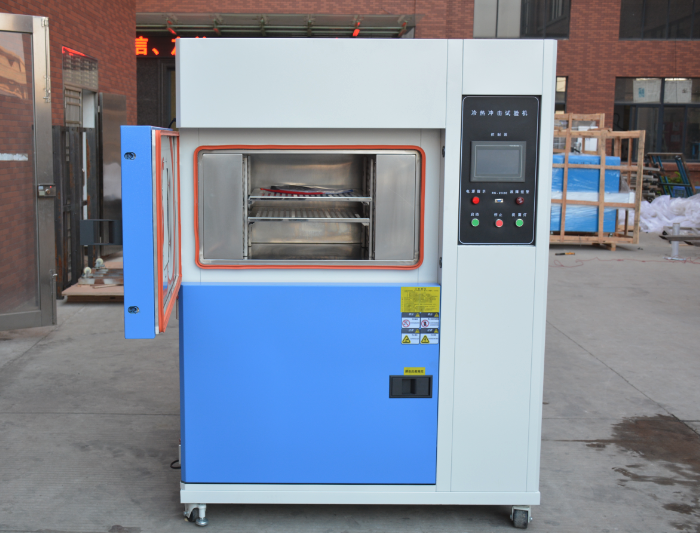

The thermal shock Test Chamber is a device used to test the durability of materials, products or components in a changing environment of cold and heat. It can simulate environments with different temperatures to test the durability of materials, as well as the durability and reliability of products.

Its application is very wide, it can be used in aerospace, automotive, electronics, electrical appliances, medical equipment, construction and other industries to test the durability of various materials, products or components in environments with extreme temperature changes. For example, the thermal shock Test Chamber can be used to test the heat resistance and cold resistance of auto parts, so as to ensure the normal use of parts in extreme temperature environments; the thermal shock Test Chamber can also be used to test the heat resistance of electronic components and cold resistance to ensure their reliability and safety in extreme temperature environments; in addition, thermal shock Test Chambers can also be used to test the heat resistance and cold resistance of building materials to ensure that buildings can withstand extreme temperatures lower reliability.

working principle

The detection principle process of the thermal shock Test Chamber is mainly as follows: first, put the sample into the Test Chamber, and set the required temperature and humidity to simulate different temperature environments. Then, the samples were exposed to different temperature environments for a period of time to test their durability. Next, record the changes in appearance of the samples after being subjected to cold and heat shocks, as well as changes in their physical properties, such as strength, hardness, gloss, etc. Finally, the test results are compared with the standard to determine whether the sample meets the requirements.

Common malfunctions

The common faults of the thermal shock Test Chamber are:

1. The temperature control is inaccurate, which may be due to the failure of the temperature sensor or temperature controller, or the inaccurate temperature control due to too large changes in the ambient temperature.

2. There is water leakage in the test box, which may be due to a problem with the seal of the test box, or a problem with the joint of the water pipe.

3. The bulb of the ultraviolet lamp is burnt out, which may be caused by poor quality of the bulb or excessive use of time, causing the bulb to burn out.

In short, the thermal shock Test Chamber is a very useful testing equipment, which can test the durability of materials, as well as the durability and reliability of products by simulating different temperature environments, thus effectively helping enterprises improve product quality, Improve product reliability and service life.
