Qiwei PHS-3C desktop precision pH meter Range 0~14pH

PHS-3C

pH Meter (desktop precision type)

Introduction

Qiwei PHS-3C  pH meter (desktop precision type) adopts white backlight, which can display pH value or potential mV value at the same time. It is suitable for sampling and measuring the pH value and potential (mV) value of water u solution in laboratories of universities, research institutes, environmental monitoring, industrial and mining enterprises and other departments.

Product principle

The PHS-3C  pH meter converts the activity of hydrogen ions in the aqueous solution into electrical energy by the sensor (pH composite electrode), and the electrical energy is input to the instrument, which is converted into digital display by A/D after operation and current detection. The above electrical energy conforms to the Nernst equation.

Operating Environment

(1) Relative Humidity: ≤80%;

(2) Ambient temperature: 5~40℃;

(3) Measured solution temperature: 5~60°C;

(4) Power supply: 220V/50Hz power supply;

(5) Do not be disturbed by large vibrations and strong electromagnetic fields.

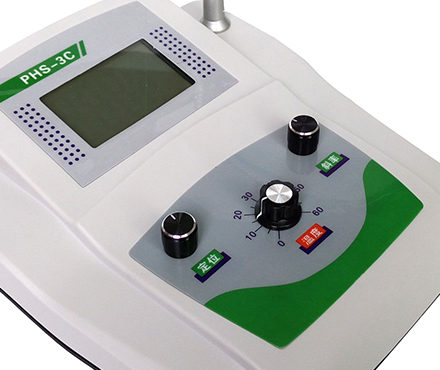

Parts and Functions

Positioning knob: Adjust the value of the pH6.86 standard buffer solution according to the corresponding temperature during calibration.

Temperature Knob: Set the temperature value of the solution to be tested.

Slope knob: adjust the value of pH4.00 or pH9.18 standard buffer according to the corresponding temperature during calibration.

Electrode socket: connect pH compound electrode (interface model: Q9)

pH/mV switch: choose to measure pH value or mV value

Power switch: turn on or off the power of the instrument

Power socket: Connect the regulated power adapter or power cord.

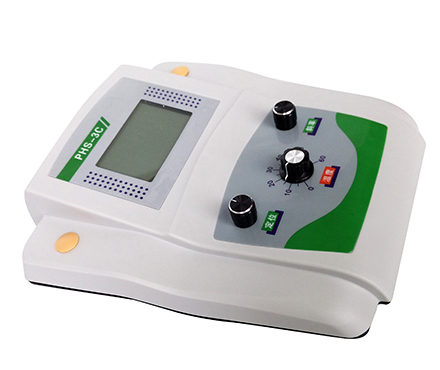

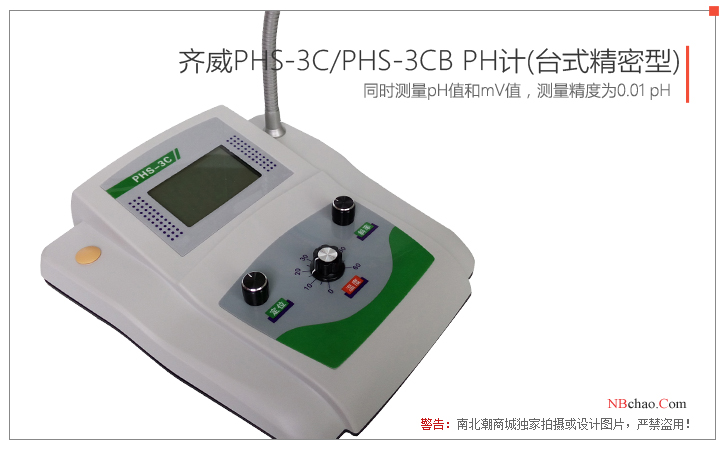

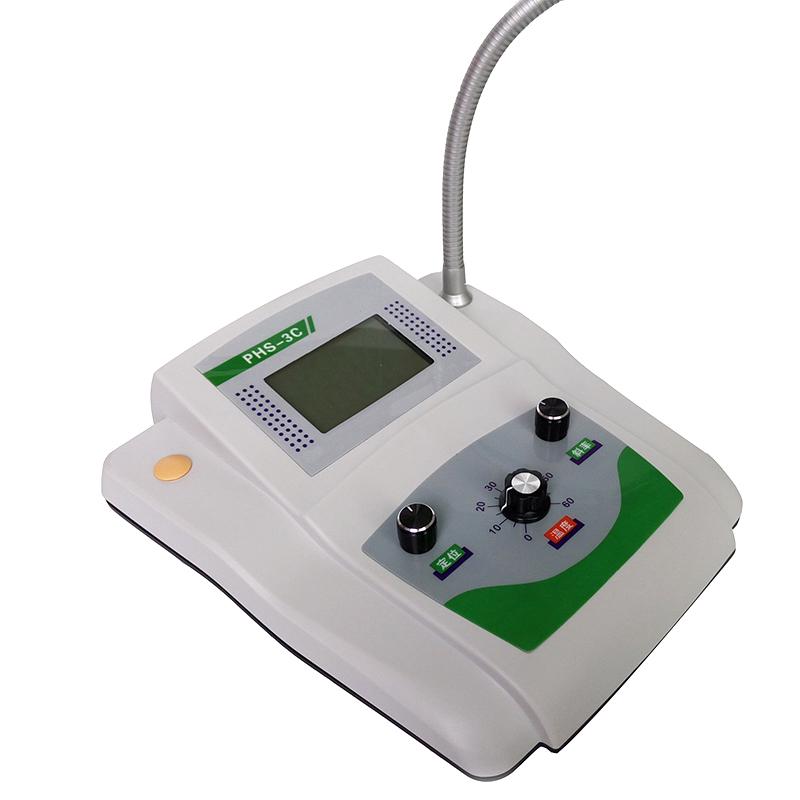

Pictures

Packing list：Host x1, Buffer reagent x3, Encasement box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
