Germany HTechMT CO300 Destructive Thickness Gauge

SE
Germany HTechMT CO300 Destructive Thickness Gauge with 50x Microscope, CO300 Destructive Thickness Gauge is suitable for Coating thickness measurement on plastic, wood, metal, concrete, Glass or Miscellaneous Non-metallic substrates.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

HTechMT CO300 Destructive Thickness GaugeSPEC

HTechMT CO300 Destructive Thickness GaugeDetails

HTechMT CO300 Destructive Thickness GaugePacking list

SKU
NB010230
Measurement principle
destructive
Measurement range
2~200μm
Machine Weight
260g
Machine size
100*80*21mm
CO300
Destructive Thickness Gauge

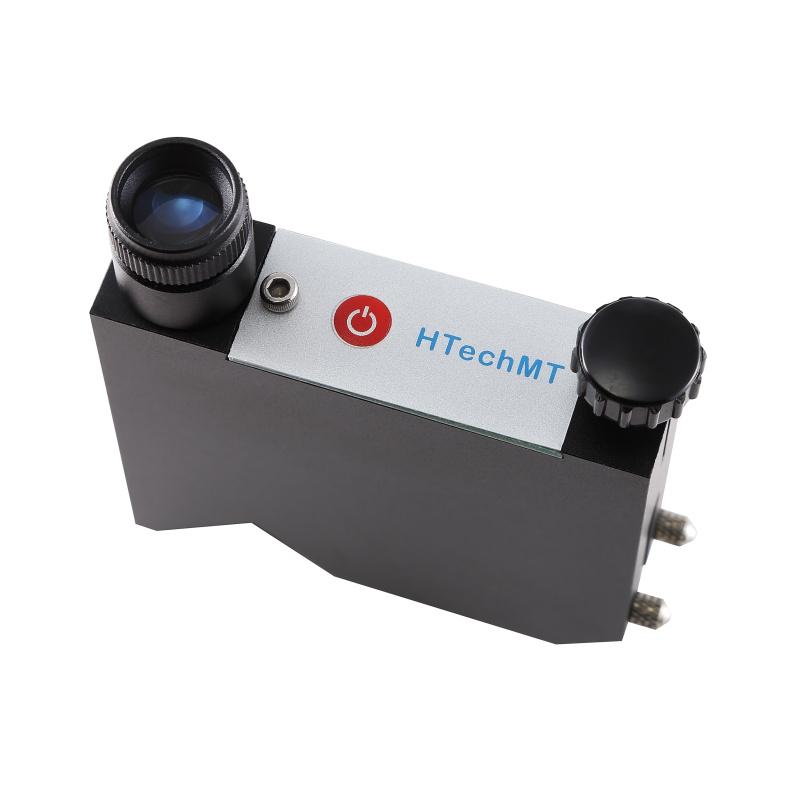

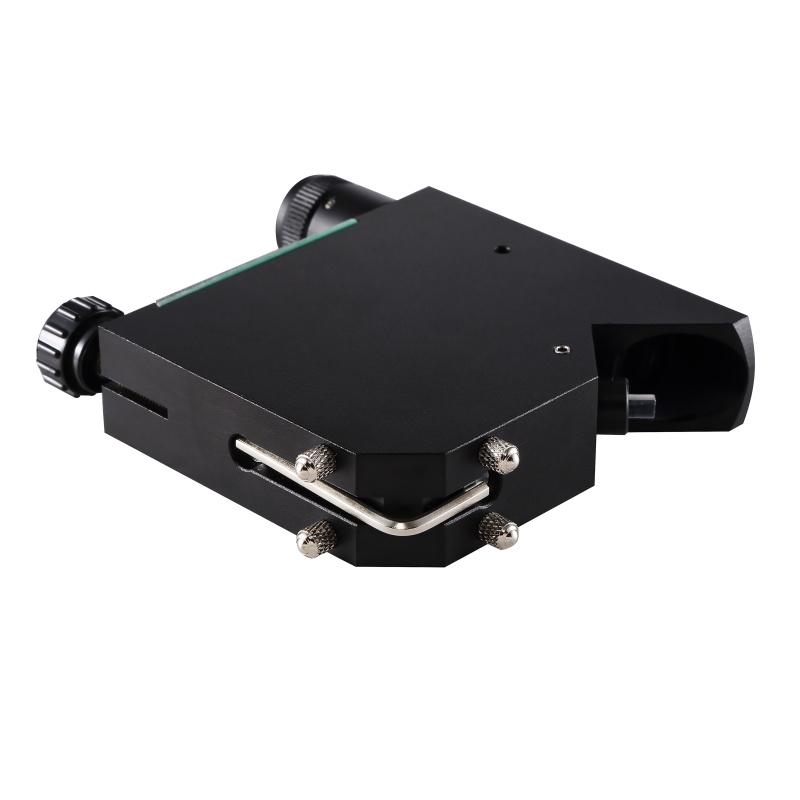

Germany HTechMT CO300 Destructive Thickness Gauge Picture

Introduction

The CO300 destructive Thickness Gauge uses a carbon steel cutter to test the thickness of single or multi-layer coatings on plastic, wood, metal, concrete, glass or other non-metallic substrates.

Features

- Easy to operate

- Compact and lightweight

- wide field of view

- Highly bright LED lights and clear scale lines

- Built-in screwdriver

- 50x microscope

- Metric and Imperial

Accessories

Accessory model     describe

Measuring range

anglecoefficient
CO300-1   Cutter No.120-2000 μm (1-80 mils)45°20 μm (1 mils)
CO300-4   Cutter No.410-1000 μm (0.5-40 mils)26.6°10 μm (0.5 mils)
CO300-6   Cutter No.62-200 μm (0.1-8 mils)5.7°2 μm (0.1 mils)
CO300-2   Microscope components
FAQ
QWe want to test the coating thickness of the concrete. We have bought the ultrasonic principle before, but because the substrate is rough, the measurement is uncertain, and the data fluctuates very much. Is there a needle probe?
A Needle probe is destructive, through the destruction of coating thickness, the use of Pythagorean theorem to calculate the coating depth, the error of this equipment is mainly from human error, mainly human reading error and scratch coating error
QIs the film thickness test of plastic substrate and Glass substrate OK?
A Destructive can ignore the substrate
QResin Coating thickness measurement on graphite is OK?
A Testing substrate is hard, and the Color between the substrate and the coatings should be clearly distinguished, so as to see the bottom material and the coatings under magnifying glass Otherwise, if the Color is the same, you can't distinguish which layer, each layer of coating and substrate, you can't read
QHow does this CO300 destructive thickness gauge work? It doesn't work a little bit.
A Hello, for the specific operation method, please refer to the detailed steps of the operation manual. The manual is downloaded from the "Operation Manual" column on the right side of the product page.
QCan all destructive thickness gauges be used for inspection in the ASTMB487 standard?
A Not necessarily, but this CO300 destructive thickness gauge can be considered.
