Germany HTechMT AT200-10 Digital Adhesion Tester Range 2.5-60MPa

SE
Germany HTechMT AT200-10 digital Adhesion Tester accuracy is 2.5-60MPa, full scale +/- 2%, AT200-10 digital Adhesion Tester with a stator paste to the coating surface test coating and substrate adhesion.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

HTechMT AT200-10 Digital Adhesion TesterSPEC

HTechMT AT200-10 Digital Adhesion TesterDetails

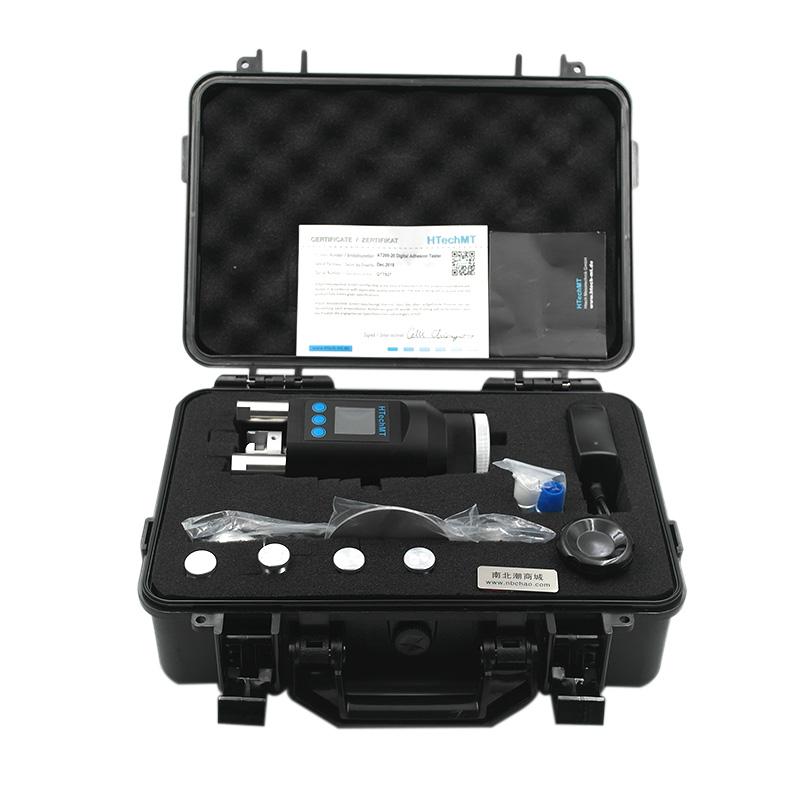

HTechMT AT200-10 Digital Adhesion TesterPacking list

SKU
NB010232
Kit diameter
10mm
Range
2.5~60MPa
Accuracy
±2%
Display
digital explicit
Force unit
MPa、psi、bar
Power
1 rechargeable battery
meet the standard
ASTM D 4541、ISO 4624、 ISO16276-1
Weight
2.5Kg
size
86*53mm
AT200-10
Digital Adhesion Tester

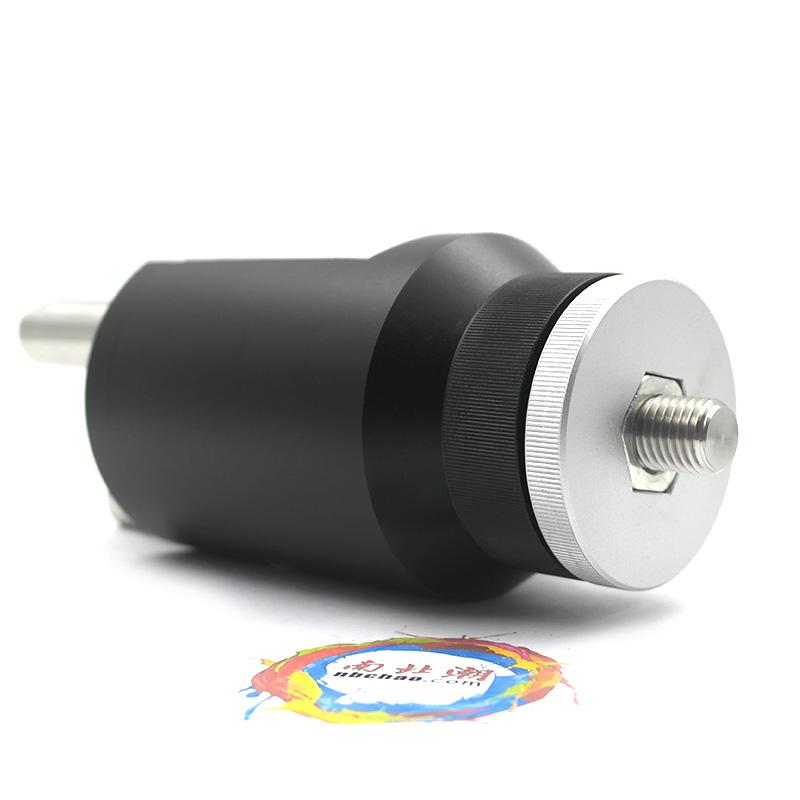

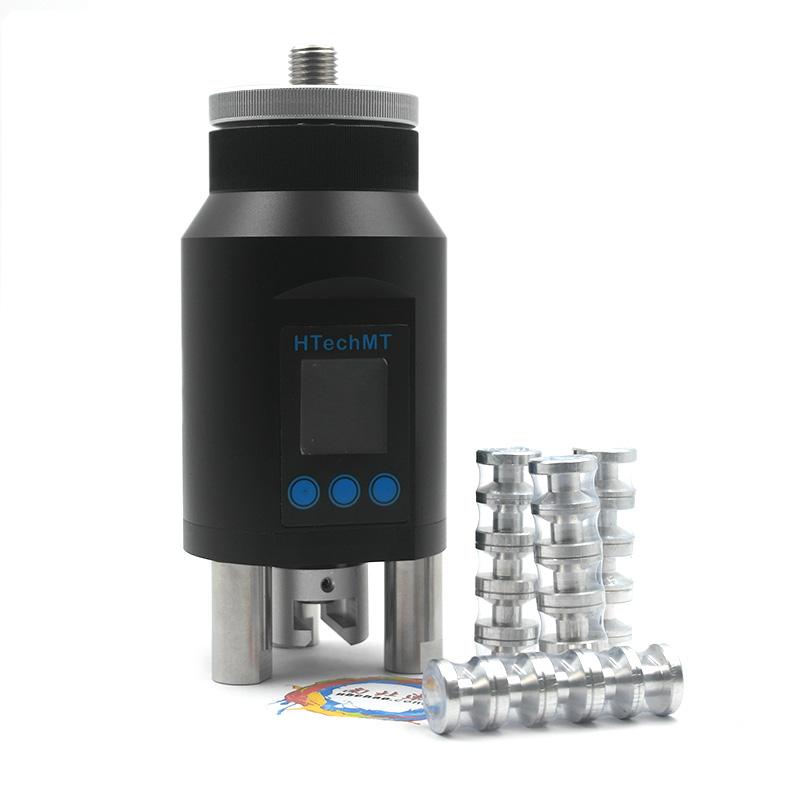

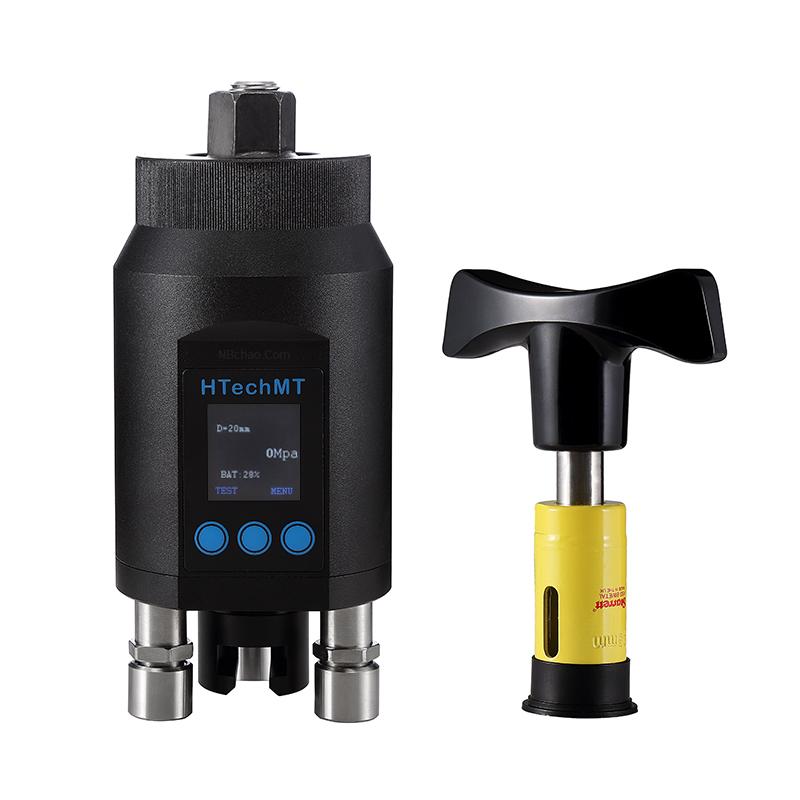

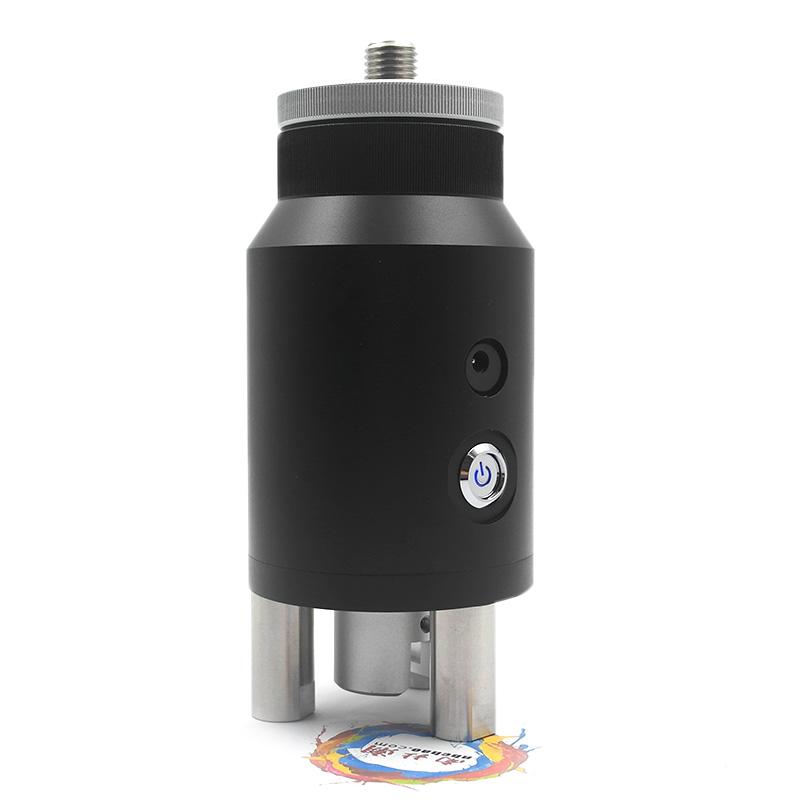

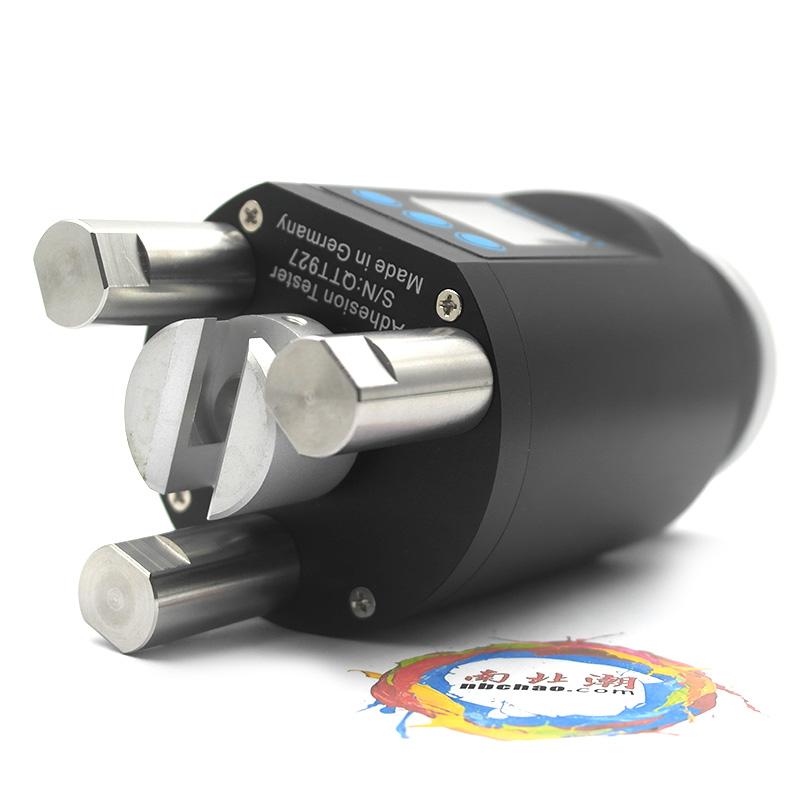

Germany HTechMT AT200-10 Digital Adhesion Tester Range 2.5-60MPa Picture

A stator is applied to the surface of the coating to test the adhesion of the coating to the substrate.Executive Standards:ASTM D 4541, ISO 4624, ISO16276-1

Product Features

- Easy to use

- Suitable for both laboratory and field use

- Four stators are available

- The measuring range can reach 60MPa, and the accuracy is ±2% of the full scale

- Units: MPa, psi, and bar

- Audible alarm when the limit value is approaching

- Rechargeable battery powered

Product Structure

AT200 Adhesion Tester Series

Product model  AT200-10AT200-14AT200-20AT200-50
Range10mm stator14mm stator20mm stator50mm stator
2.5 - 60 MPa1.3 - 30 MPa0.8 - 15 MPa0.2 - 2.4 MPa
precision  2% of full scale ±

fittings

Accessory model  description
AT200-10D  10mm stator (5pcs/pack)
AT200-14D  14mm stator (5pcs/pack)
AT200-20D  20mm stator (5pcs/pack)
AT200-50D  50mm stator (2pcs/pack)
AT200-50F  Retaining rings
AT200-AD  glue


FAQ
QCan you test the adhesion of 0-0.2mpa?
A 0.1-0 above can be measured, less than 0.1 can not be measured.
QHow big is the top of this Adhesion Tester?
A Hello, the size of the top is 10mm.
QIs there an ISO4624 standard adhesion instrument?
A This HTechMT adhesion instrument is fine!
