Germany HTechMT AT200-14 Digital Display Adhesion Tester Range 1.3-30 MPa

SE
The accuracy of the German HTechMT AT200-14 digital display Adhesion Tester is 1.3-30 MPa, and the accuracy is +/- 2% of the full scale. The AT200-14 digital display Adhesion Tester is suitable for laboratory and field use.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

HTechMT AT200-14 Digital Adhesion TesterSPEC

HTechMT AT200-14 Digital Adhesion TesterDetails

HTechMT AT200-14 Digital Adhesion TesterPacking list

SKU
NB010233
Measurement mode
manual
Kit diameter
14mm
Range
1.3~30MPa
Accuracy
±2%
Display
digital explicit
Force unit
MPa、psi、bar
Power
1 rechargeable battery
meet the standard
ASTM D 4541、ISO 4624、ISO16276-1
Weight
2.5Kg
size
86*53mm
AT200-14
Digital Adhesion Tester

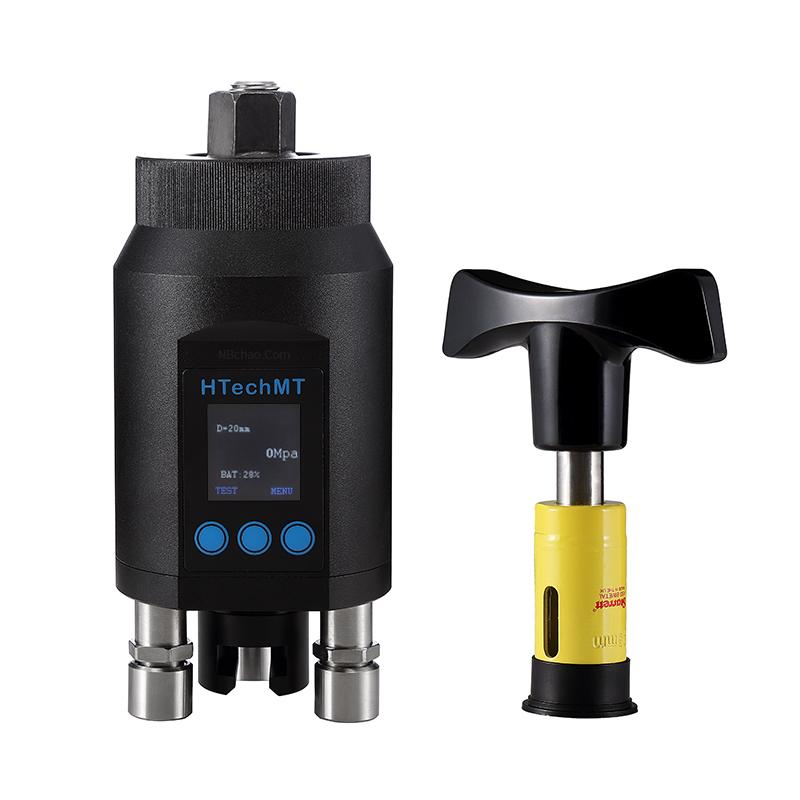

Germany HTechMT AT200-14 Digital Display Adhesion Tester Range 1.3-30 MPa Picture

A stator is applied to the surface of the coating to test the adhesion of the coating to the substrate.Executive Standards:ASTM D 4541, ISO 4624, ISO16276-1

Product Features

- Easy to use

- Suitable for both laboratory and field use

- Four stators are available

- The measuring range can reach 60MPa, and the accuracy is ±2% of the full scale

- Units: MPa, psi, and bar

- Audible alarm when the limit value is approaching

- Rechargeable battery powered

Product Structure

AT200 Adhesion Tester Series

Product model  AT200-10AT200-14AT200-20AT200-50
Range10mm stator14mm stator20mm stator50mm stator
2.5 - 60 MPa1.3 - 30 MPa0.8 - 15 MPa0.2 - 2.4 MPa
precision  2% of full scale ±

fittings

Accessory model  description
AT200-10D  10mm stator (5pcs/pack)
AT200-14D  14mm stator (5pcs/pack)
AT200-20D  20mm stator (5pcs/pack)
AT200-50D  50mm stator (2pcs/pack)
AT200-50F  Retaining rings
AT200-AD  glue


FAQ
QIt is recommended to use the pulling method for Coating to measure the adhesion equipment. I originally wanted to measure it on the tinplate iron sheet, but it is said that the iron sheet is easy to bend and cannot be determined.
A Recommendation HTechMT AT200-14
QWhat is the measurement range of AT200-14 Digital Adhesion Tester?
A Hello, the measurement range is 1.3~ 30MPa.
QDoes the HTechMT adhesion machine meet the ASTMD 4541 standard?
A The AT200-14 adhesion instrument can refer to
