Germany HTechMT AT200-50 digital display Adhesion Tester range 0.2-2 MPa

SE
The German HTechMT AT200-50 digital display Adhesion Tester has a range of 0.2-2 MPa, and the AT200-50 digital display Adhesion Tester is equipped with a stator specification of 50mm, which is suitable for laboratory and field use.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

HTechMT AT200-50 Digital Adhesion TesterSPEC

HTechMT AT200-50 Digital Adhesion TesterDetails

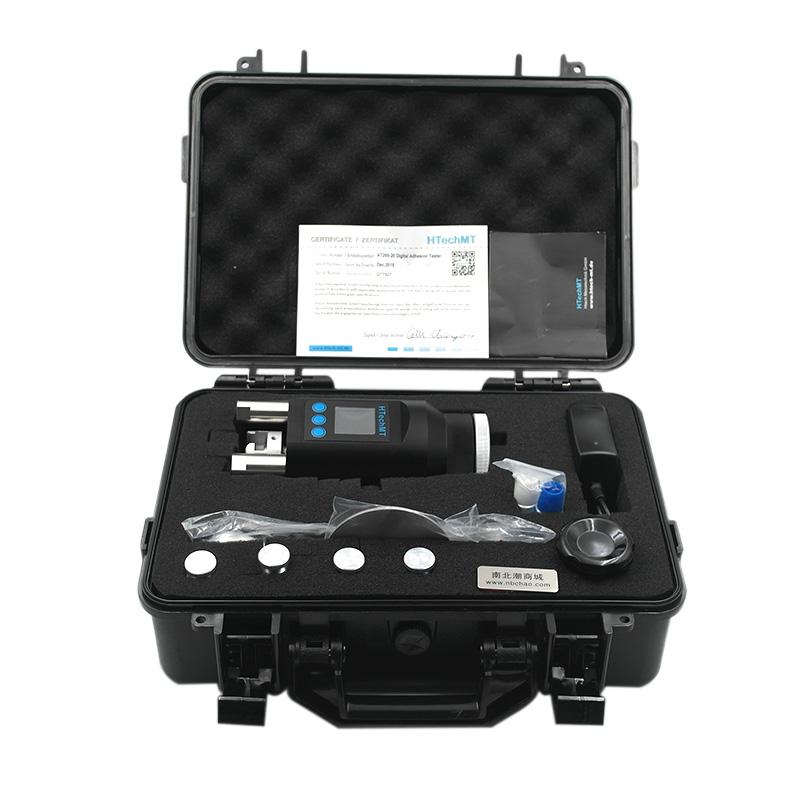

HTechMT AT200-50 Digital Adhesion TesterPacking list

SKU
NB010235
Measurement mode
manual
Kit diameter
50mm
Range
0.2~2.4MPa
Accuracy
±2%
Display
digital explicit
Force unit
MPa、psi、bar
Power
1 rechargeable battery
meet the standard
ASTM D 4541、ISO 4624、ISO16276-1
Weight
2.5Kg
size
86*53mm
AT200-50
Digital Adhesion Tester

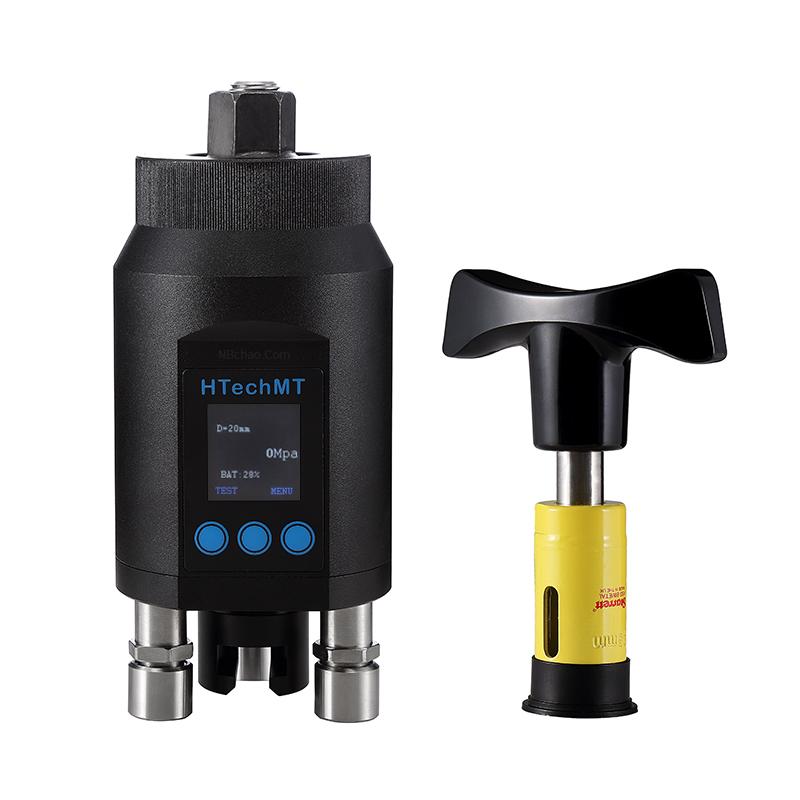

Germany HTechMT AT200-50 digital display Adhesion Tester range 0.2-2 MPa Picture

A stator is applied to the surface of the coating to test the adhesion of the coating to the substrate.Executive Standards:ASTM D 4541, ISO 4624, ISO16276-1

Product Features

- Easy to use

- Suitable for both laboratory and field use

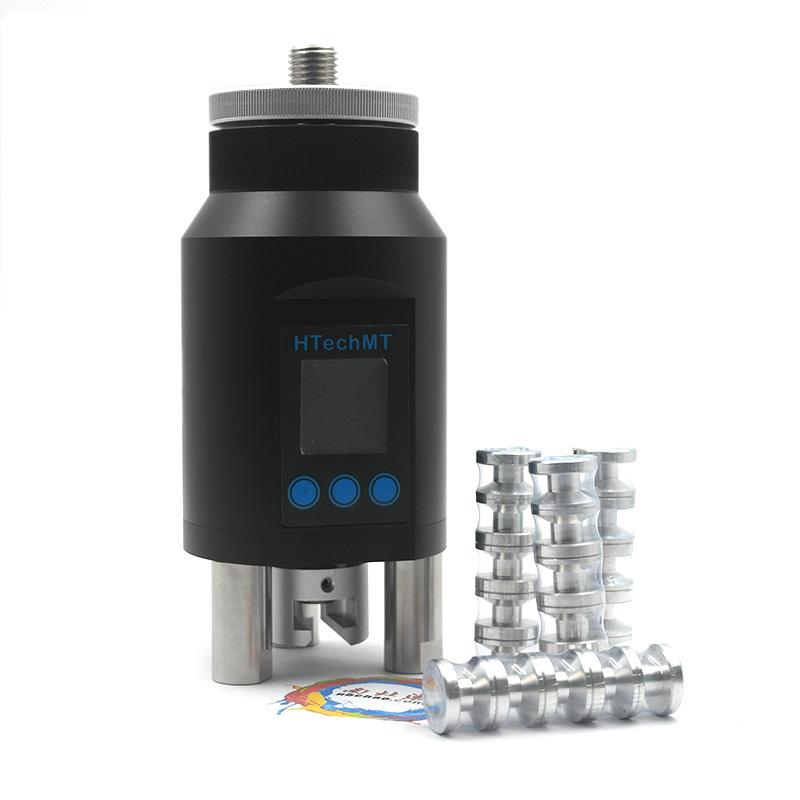

- Four stators are available

- The measuring range can reach 60MPa, and the accuracy is ±2% of the full scale

- Units: MPa, psi, and bar

- Audible alarm when the limit value is approaching

- Rechargeable battery powered

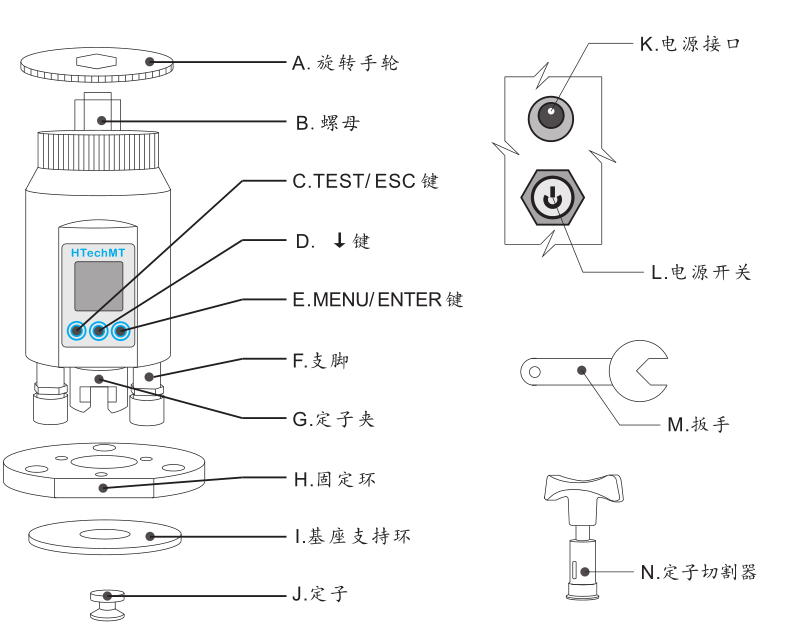

Product Structure

AT200 Adhesion Tester Series

Product model  AT200-10AT200-14AT200-20AT200-50
Range10mm stator14mm stator20mm stator50mm stator
2.5 - 60 MPa1.3 - 30 MPa0.8 - 15 MPa0.2 - 2.4 MPa
precision  2% of full scale ±

fittings

Accessory model  description
AT200-10D  10mm stator (5pcs/pack)
AT200-14D  14mm stator (5pcs/pack)
AT200-20D  20mm stator (5pcs/pack)
AT200-50D  50mm stator (2pcs/pack)
AT200-50F  Retaining rings
AT200-AD  glue


FAQ
QCan the HTechMT AT200-50 test the adhesion of epoxy paint and tile glue?
A This one is OK, but it depends on the Measurement range and how much adhesion you want to measure.
QWhat is the accuracy of AT200-50 Adhesion Tester?
A Hello, the accuracy is ± 2%.
QCan this HTechMT adhesion instrument correspond to GB/T14616?
A Yes, please refer to the NBchao standards page for specific standards.
