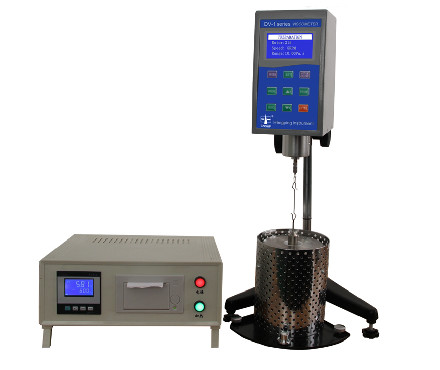

CNSHP hengping DV-1C Rotational Viscometer temperature control accuracy +/- 0.1 ℃

DV-1C

Brinell Rotational Viscometer

Digital display, Measurement range 100~200000mPa · s, Rotor specification 21 #, 27 #, 28 #, 29 #, Rotor speed 5/10/20/50rpm, Measurement accuracy +/- 1% F.S, Power supply Voltage AC 220V +/- 10%, 50Hz, Interface PC, RS-232, Application standard JTJ052, Allow Operating temperature 5 ℃~ 35 ℃, Allow Relative Humidity ≤ 80%, Temperature range RT +~ 200 ℃, Sample cylinder volume 20ml, Measurement mode Manual, Automatic, Measurement accuracy +/- 1% F.S.

Introduction

DV-1C Brinell Rotational Viscometer is designed and manufactured in accordance with the requirements of T0625 "Asphalt Brinell Rotational Viscosity Test (Brockfield Viscometer Method)" in the People's Republic of CHINA Transportation Industry Standard JTJ052 "Test Regulations for Highway Engineering Asphalt and Asphalt Mixture", and is an upgraded product of the company's DV-1C Rotational Viscometer and NDJ-1B Rotational Viscometer, which is suitable for measuring the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.

This instrument adopts professional mechanical design technology and manufacturing process, and uses microcomputer technology for temperature control, data acquisition and data processing; The display adopts a white backlight, high-brightness LCD display; Equipped with a micro dot matrix printer output device. The test results can be displayed in real time on the display or printed out by the printer. In addition, it can be connected to a personal computer through the RS232 data communication port of this instrument.

Features

New design: high-brightness LCD display, easy and convenient operation

Display information: viscosity (mPa.S, Pa.S), % torque, speed/rotor, shear rate/shear stress range

Accuracy: ±1.0% of the measuring range

Optional PC connection port and viscosity host computer software: optional RS-232 communication interface to connect to PC and optional viscosity host computer software can automatically produce viscosity-temperature curves

Other optional accessories: heating oven: operating temperature< 250°C, external circulation type 20ML small sample adapter: operating temperature<120°C, special thermostatic bath for viscometer: DC-0506W, DC-130B, CH-1006, etc., micro printer: can print results directly

Scope of application

This instrument has the characteristics of high measurement sensitivity, reliable test results, easy use and operation, and beautiful appearance. It can be widely used to measure the viscosity of various fluids such as asphalt, hot melt adhesives, paraffin, polymers, etc.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
