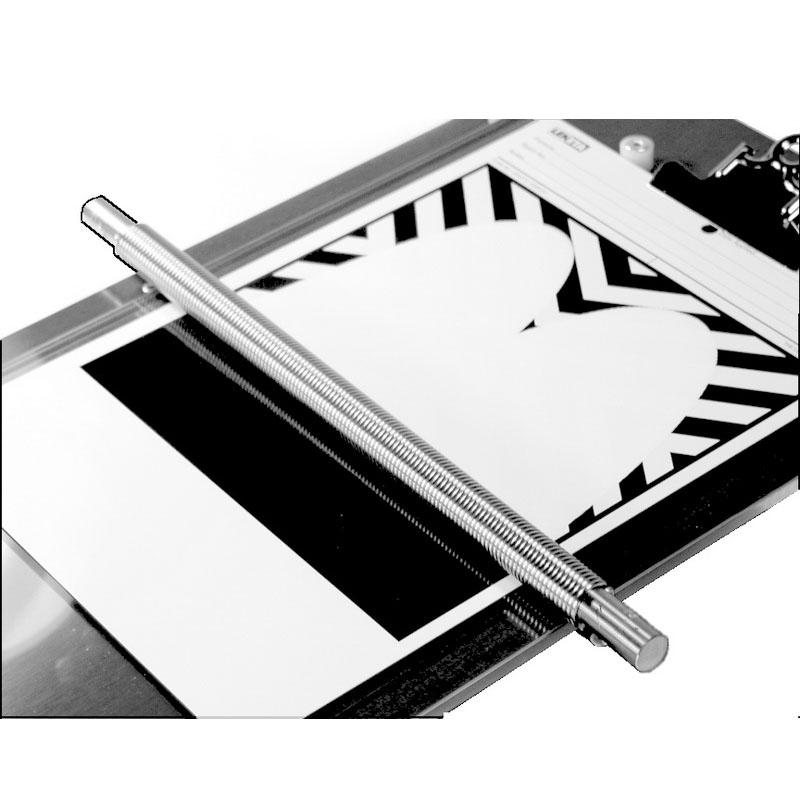

LENETA WC-10 Mayer Rods film thickness 16µm
LENETA WC-10 Mayer Rods are made of all stainless steel, WC-10 Mayer Rods Wire diameter 0.25mm
Model：
WC-10
LENETA WC-10 Mayer RodsSPEC
LENETA WC-10 Mayer RodsDetails
LENETA WC-10 Mayer RodsPacking list
- SKU
- NB010365
- Production process
- Wire-wound
- WFT
- 16µm
- diameter
- 12.7mm
- Total length
- 305mm
- Wire diameter
- 0.25mm
- Application width
- 254mm
- grip width
- 25+25mm
- material
- stainless steel
WC-10
Mayer Rods
Wire bar applicator
The coating is prepared into a film of a certain thickness, also known as a wire rod applicator, Meyer rod, and winding rod.
Features
Wire Diameter: 0.064~1.9mm(2.5~75mils)
Prepared coating film thickness: 4.5~150μm (0.18~6mils)
Coating Width: 254mm (10inches) long enough to meet most standard size baseplates and cardboards.
Bar length: 305mm (12inches). There are 25mm long grip parts at each end.
Bar diameter: 12.7mm (1/2inch). Thick enough to provide basic good rigidity.
Material: All stainless steel. Even water-based paints do not rust or corrode. Non-magnetic, allowing for use with steel plates on magnetic cards.
Parameters
| Model | Wire diameter | Coating film thickness | Coating width |
| WC-2.5 | 0.064mm(2.5mil) | 4.5µm(0.18 mil) | 254mm(10 in) |
| WC-3 | 0.075mm(3mil) | 5µm(0.2 mil) | 254mm(10 in) |
| WC-4 | 0.10mm(4mil) | 8µm(0.3 mil) | 254mm(10 in) |
| WC-6 | 0.15mm(6mil) | 10µm(0.4 mil) | 254mm(10 in) |
| WC-8 | 0.20mm(8mil) | 13µm(0.5 mil) | 254mm(10 in) |
| WC-10 | 0.25mm(10mil) | 16µm(0.65 mil) | 254mm(10 in) |
| WC-12 | 0.30mm(12mil) | 20µm(0.8 mil) | 254mm(10 in) |
| WC-14 | 0.36mm(14mil) | 24µm(0.95 mil) | 254mm(10 in) |
| WC-16 | 0.41mm(16mil) | 28µm(1.1 mil) | 254mm(10 in) |
| WC-18 | 0.46mm(18mil) | 32µm(1.25 mil) | 254mm(10 in) |
| WC-20 | 0.51mm(20mil) | 35µm(1.4 mil) | 254mm(10 in) |
| WC-22 | 0.56mm(22mil) | 38µm(1.5 mil) | 254mm(10 in) |
| WC-24 | 0.61mm(24mil) | 42µm(1.7 mil) | 254mm(10 in) |
| WC-26 | 0.66mm(26mil) | 47µm( 1.8mil) | 254mm(10 in) |
| WC-28 | 0.71mm(28mil) | 50µm(2.0 mil) | 254mm(10 in) |
| WC-30 | 0.76mm(30mil) | 55µm(2.2 mil) | 254mm(10 in) |
| WC-32 | 0.81mm(32mil) | 59µm(2.3 mil) | 254mm(10 in) |
| WC-34 | 0.86mm(34mil) | 63µm(2.5 mil) | 254mm(10 in) |
| WC-36 | 0.91mm(36mil) | 68µm(2.7 mil) | 254mm(10 in) |
| WC-38 | 0.97mm(38mil) | 72µm(2.8 mil) | 254mm(10 in) |
| WC-40 | 1.02mm(40mil) | 75µm(3.0 mil) | 254mm(10 in) |
| WC-42 | 1.07mm(42mil) | 81µm(3.2 mil) | 254mm(10 in) |
| WC-44 | 1.12mm(44mil) | 85µm(3.3 mil) | 254mm(10 in) |
| WC-46 | 1.17mm(46mil) | 89µm(3.5 mil) | 254mm(10 in) |
| WC-48 | 1.22mm(48mil) | 93µm(3.7 mil) | 254mm(10 in) |
| WC-50 | 1.27mm(50mil) | 98µm(3.8 mil) | 254mm(10 in) |
| WC-52 | 1.32mm(52mil) | 100µm(4.0 mil) | 254mm(10 in) |
| WC-55 | 1.40mm(55mil) | 106µm(4.2 mil) | 254mm(10 in) |
| WC-60 | 1.52mm(60mil) | 114µm(4.5 mil) | 254mm(10 in) |
| WC-65 | 1.65mm(65mil) | 125µm(5.0 mil) | 254mm(10 in) |
| WC-70 | 1.78mm(70mil) | 138µm(5.5 mil) | 254mm(10 in) |
| WC-75 | 1.91mm(75mil) | 150µm(6.0 mil) | 254mm(10 in) |
| WC-212 | N/A | N/A | 254mm(10 in) |
Optional
|
|
|
FAQ
QIs there an ASTMD5007 standard for Mayer Rods?
A
This LENETA Mayer Rods is fine!
QCan silicone coatings be applied to quartz Glass substrates?
A
Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
QThe solid content of the paint is 45%. If you want to scrape the ink and dry 7 microns, can this be done?
A
Can be done
