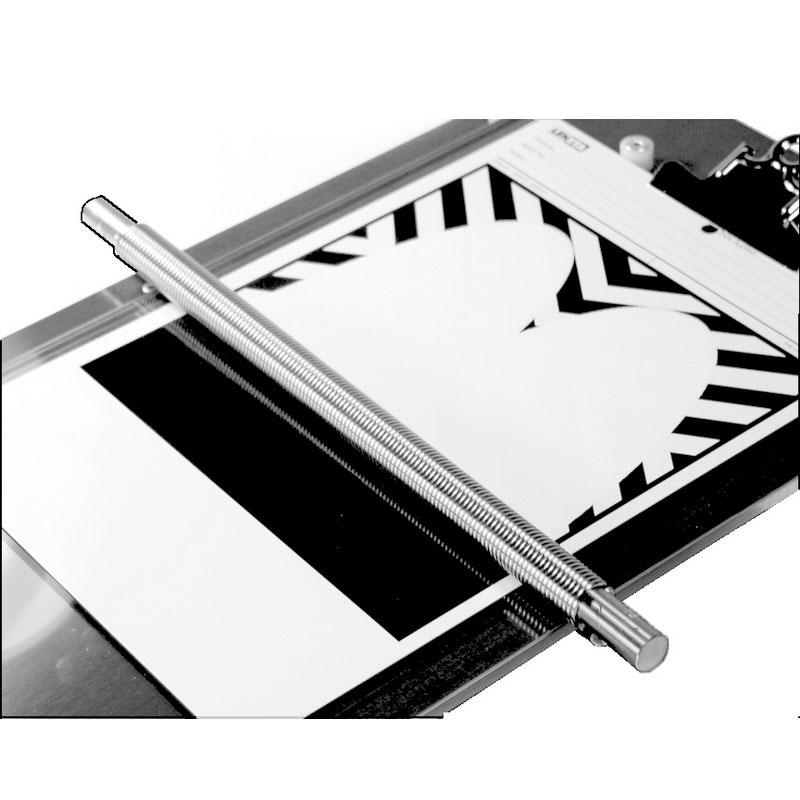

LENETA WC-60 Mayer Rods film thickness 114µm
LENETAWC-60 Mayer Rods Wire diameter 1.52mm, WC-55 Mayer Rods are made of all stainless steel
Model：
WC-60
LENETA WC-60 Mayer RodsSPEC
LENETA WC-60 Mayer RodsDetails
LENETA WC-60 Mayer RodsPacking list
- SKU
- NB010388
- Production process
- Wire-wound
- WFT
- 114µm
- diameter
- 12.7mm
- Total length
- 305mm
- Wire diameter
- 1.52mm
- Application width
- 254mm
- grip width
- 25+25mm
- material
- stainless steel
WC-60
Mayer Rods
Wire bar applicator
The coating is prepared into a film of a certain thickness, also known as a wire rod applicator, Meyer rod, and winding rod.
Features
Wire Diameter: 0.064~1.9mm(2.5~75mils)
Prepared coating film thickness: 4.5~150μm (0.18~6mils)
Coating Width: 254mm (10inches) long enough to meet most standard size baseplates and cardboards.
Bar length: 305mm (12inches). There are 25mm long grip parts at each end.
Bar diameter: 12.7mm (1/2inch). Thick enough to provide basic good rigidity.
Material: All stainless steel. Even water-based paints do not rust or corrode. Non-magnetic, allowing for use with steel plates on magnetic cards.
Parameters
| Model | Wire diameter | Coating film thickness | Coating width |
| WC-2.5 | 0.064mm(2.5mil) | 4.5µm(0.18 mil) | 254mm(10 in) |
| WC-3 | 0.075mm(3mil) | 5µm(0.2 mil) | 254mm(10 in) |
| WC-4 | 0.10mm(4mil) | 8µm(0.3 mil) | 254mm(10 in) |
| WC-6 | 0.15mm(6mil) | 10µm(0.4 mil) | 254mm(10 in) |
| WC-8 | 0.20mm(8mil) | 13µm(0.5 mil) | 254mm(10 in) |
| WC-10 | 0.25mm(10mil) | 16µm(0.65 mil) | 254mm(10 in) |
| WC-12 | 0.30mm(12mil) | 20µm(0.8 mil) | 254mm(10 in) |
| WC-14 | 0.36mm(14mil) | 24µm(0.95 mil) | 254mm(10 in) |
| WC-16 | 0.41mm(16mil) | 28µm(1.1 mil) | 254mm(10 in) |
| WC-18 | 0.46mm(18mil) | 32µm(1.25 mil) | 254mm(10 in) |
| WC-20 | 0.51mm(20mil) | 35µm(1.4 mil) | 254mm(10 in) |
| WC-22 | 0.56mm(22mil) | 38µm(1.5 mil) | 254mm(10 in) |
| WC-24 | 0.61mm(24mil) | 42µm(1.7 mil) | 254mm(10 in) |
| WC-26 | 0.66mm(26mil) | 47µm( 1.8mil) | 254mm(10 in) |
| WC-28 | 0.71mm(28mil) | 50µm(2.0 mil) | 254mm(10 in) |
| WC-30 | 0.76mm(30mil) | 55µm(2.2 mil) | 254mm(10 in) |
| WC-32 | 0.81mm(32mil) | 59µm(2.3 mil) | 254mm(10 in) |
| WC-34 | 0.86mm(34mil) | 63µm(2.5 mil) | 254mm(10 in) |
| WC-36 | 0.91mm(36mil) | 68µm(2.7 mil) | 254mm(10 in) |
| WC-38 | 0.97mm(38mil) | 72µm(2.8 mil) | 254mm(10 in) |
| WC-40 | 1.02mm(40mil) | 75µm(3.0 mil) | 254mm(10 in) |
| WC-42 | 1.07mm(42mil) | 81µm(3.2 mil) | 254mm(10 in) |
| WC-44 | 1.12mm(44mil) | 85µm(3.3 mil) | 254mm(10 in) |
| WC-46 | 1.17mm(46mil) | 89µm(3.5 mil) | 254mm(10 in) |
| WC-48 | 1.22mm(48mil) | 93µm(3.7 mil) | 254mm(10 in) |
| WC-50 | 1.27mm(50mil) | 98µm(3.8 mil) | 254mm(10 in) |
| WC-52 | 1.32mm(52mil) | 100µm(4.0 mil) | 254mm(10 in) |
| WC-55 | 1.40mm(55mil) | 106µm(4.2 mil) | 254mm(10 in) |
| WC-60 | 1.52mm(60mil) | 114µm(4.5 mil) | 254mm(10 in) |
| WC-65 | 1.65mm(65mil) | 125µm(5.0 mil) | 254mm(10 in) |
| WC-70 | 1.78mm(70mil) | 138µm(5.5 mil) | 254mm(10 in) |
| WC-75 | 1.91mm(75mil) | 150µm(6.0 mil) | 254mm(10 in) |
| WC-212 | N/A | N/A | 254mm(10 in) |
Optional
|
|
|
FAQ
QIs this Mayer Rods ASTMD5007 compliant?
A
This wire rod coating applicator is suitable for ASTMD5007. Please consult customer service for detailed application definition.
QSolid content 40%, expected to make Dry-Film 46 microns, this stick number can?
A
Sure
