INGERSOLL RAND v5-7 Air Compressor, displacement 830L/min Motor Power 5.5KW
SE
Ingersoll Rand v5-7 Air CompressorSPEC
Ingersoll Rand v5-7 Air CompressorDetails
Ingersoll Rand v5-7 Air CompressorPacking list
- SKU
- NB010396
- type
- fuel injection
- compression method
- screw type
- exhaust pressure
- 700kpa
- Displacement
- 830L/min
- output power
- 5.5KW
- noise value
- 65±3dB(A)
- Dimensions
- 826*759*782mm
- Weight
- 280Kg
- Cooling mode
- A/C
Innovative modular design, high integration leads to high reliability

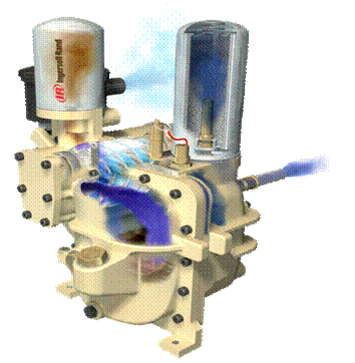

| Host module — Durable Ingersoll Rand main engine: effective and stable, its performance has been verified and recognized by millions of Air Compressor customers equipped with modified main engine in Chinese market — Fully integrated host, discrete system, and internal connection piping — Built-in piping eliminates leakage at hoses and fittings — Effective separation system with rotatable detachable oil separator core |
|
Cooling module — Integrated cooler integrates oil cooling and aftercooling — Top exhaust air to avoid hot gas backflow and optimize cooling efficiency — Centrifugal integrated cooling fan, eliminating the need for a fan motor and saving energy — Low operating noise
|

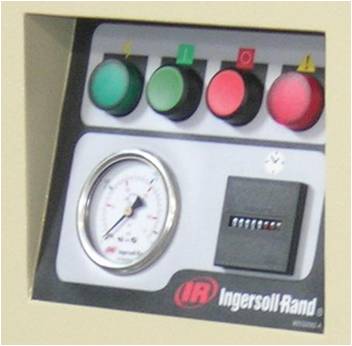

| Control module — High temperature shutdown protection — Motor overload protection — Overpressure safety decompression system |
|

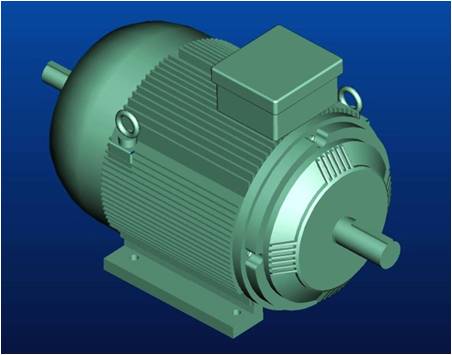

Transmission drive module — Imported Poly-V belt, longer life than traditional belt — Four shock absorbing pads are standard to reduce vibration and noise — Long-term lubrication of the front and rear bearings of the motor |
Silent design
| — Centrifugal cooling fan for optimal cooling and reduced noise and vibration — Adopt closed silent box design, sheet metal soundproof cover, 3-5dB (A) lower than general Air Compressor. |

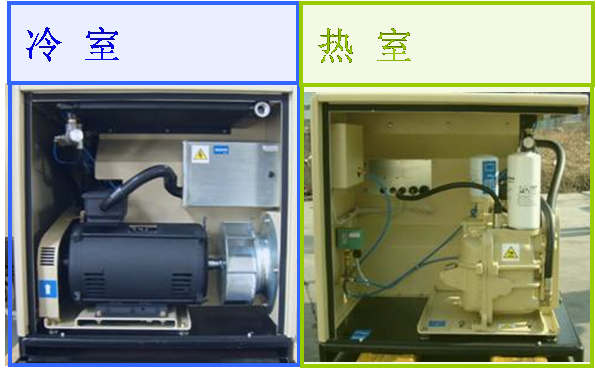

Independent system of hot and cold chambers
| — Unique independent system design of cold and hot chambers, the internal layout of the unit is more reasonable — Placing electrical components and oil separation and filtration modules, which are susceptible to damage from high temperatures, in a cold chamber increases the service life of the unit |
User-friendly design, fast self-service
