JINGRUI SX2-10-12GJ Box-Type Resistance Furnace operating temperature ≤ 1100 ℃ Heating power 10KW

JINGRUI Box-Type Resistance Furnace SX2-10-12GJ is a SX-GJ series smart Box-Type Resistance Furnace. The design temperature of SX2-10-12GJ is 1200 ℃, and the operating temperature is ≤ 1100 ℃.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

JingRui SX2-10-12GJ Box-Type Resistance FurnaceSPEC

JingRui SX2-10-12GJ Box-Type Resistance FurnaceDetails

JingRui SX2-10-12GJ Box-Type Resistance FurnacePacking list

SKU
NB001051
maximum temperature
1200℃
Temperature range
≤1100℃
Heating workpiece
Iron chromium aluminum alloy heating wire
Furnace Volume
13L
Heating power
10KW
Temperature control Accuracy
±1℃
Heating rate
≤15℃/min
Temperature control instrument
LCD/smart PID temperature control
Thermocouple
Thermocouple K
Furnace size
400*200*160mm
Power supply Voltage
Three-phase AC380V/50Hz
Dimensions
820*650*730mm
SX2-10-12GJ
Box-Type Resistance Furnace

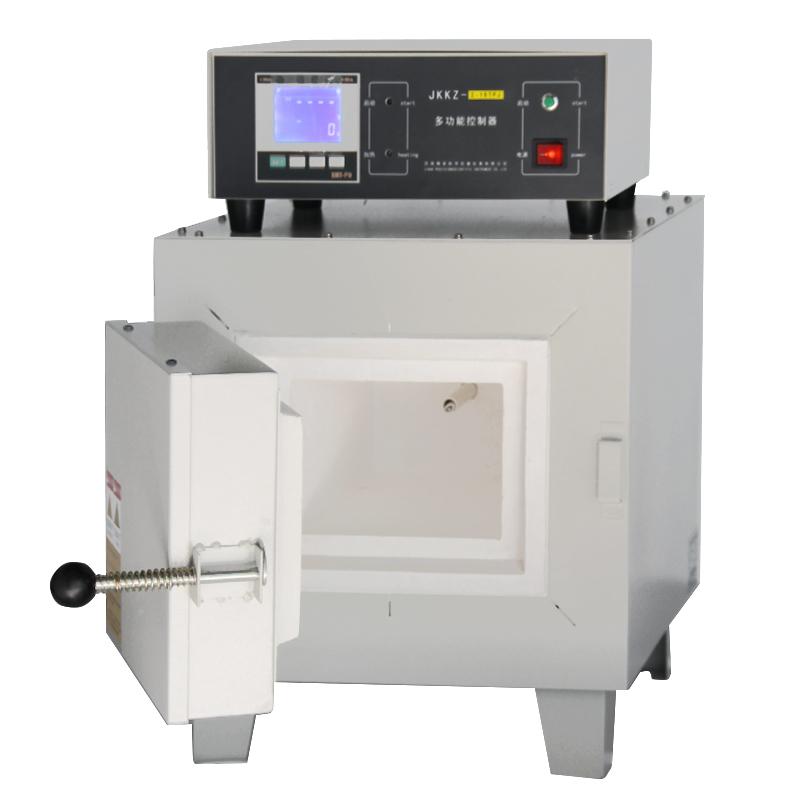

JINGRUI SX2-10-12GJ Box-Type Resistance Furnace operating temperature ≤ 1100 ℃ Heating power 10KW Picture

SX2-10-12GJ muffle furnaceIntroduction

Jingrui SX2-10-12GJ muffle furnace is a simple structure of split Box-Type Resistance Furnace, the maximum temperature is 1200 °C (the recommended temperature should not exceed 1100 °C), using ordinary refractory furnace, iron-chromium-aluminum alloy heating wire as heating element, high temperature resistance, chemical stability. The muffle furnace is a temperature controller with liquid crystal display, with a timing switch function, and the general Timer Setting is 99 hours.

Features

1、The elite SX2-10-12GJ muffle furnace has a white metal case.

2. Ordinary Al is used2O3Refractory material, cost-effective, widely used,

3. The heating element is an iron-chromium-aluminum alloy heating wire.

Actual picture of the product

Elite SX2-10-12GJ muffle furnace real picture 1

Elite SX2-10-12GJ muffle furnace real photo 2


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
