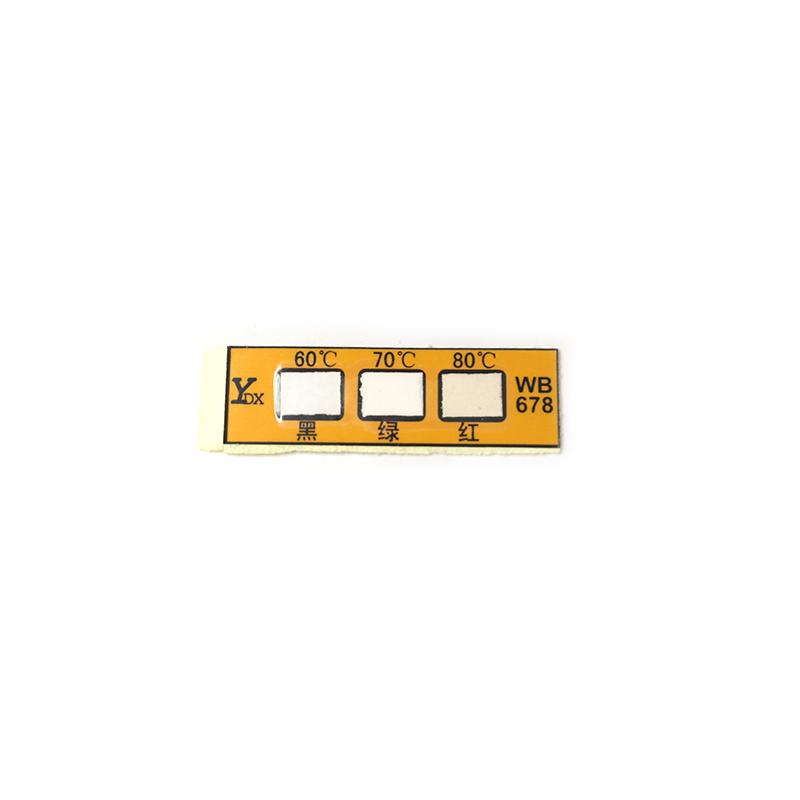

3 grid temperature label, Yadongxing WB678 temperature measurement range is 60/70/80 ℃ (60 pieces)

WB678

Thermometric Paper

Introduction

Yadongxing WB678 temperature label is a WB type temperature label with three temperature grids of 60°C, 70°C, and 80°C. It is upgraded on the basis of the WA type, and the size is increased to 1.4x4.6cm/piece. In addition, the white window of the WB678 temperature label will turn into three colors after overheating, black at 60 degrees, green at 70 degrees, and red at 80 degrees. The temperature change of the device can be monitored more clearly through the indication of the three colors. The WB678 temperature label belongs to the series of Yadongxing's window-type multi-temperature anti-fouling series. The surface is attached with a protective film, which can prevent pollution, oil and water well.

Specifications

Judgment method of equipment overheating state

When the Yadongxing WB678 temperature label is overheated, the color of the temperature measuring paper changes from white to black to green to red. If the discoloration of the temperature measuring sticker is very bright and bright, it means that the temperature measuring equipment is overheating; if the color of the temperature measuring paper is a light mid-tone, it means that the equipment has been overheated, but returned to normal temperature .

Instructions

Yadongxing WB678 temperature label comes with pressure-sensitive adhesive. To make the temperature measuring paper stick firmly on the equipment for a long time, you must first choose a smooth and clean temperature measuring part to paste. Before pasting, you should clean the dust or It's oily. Avoid touching the adhesive side of the patch with your hands, so as not to affect the adhesion of the adhesive.

Pictures

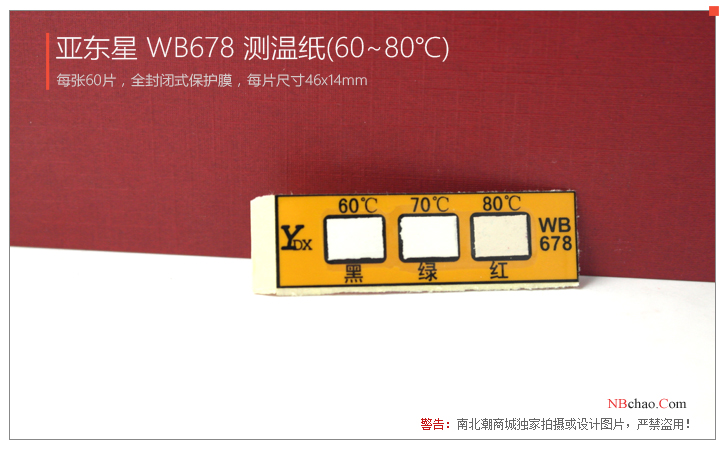

Yadongxing WB678 temperature measuring paper display

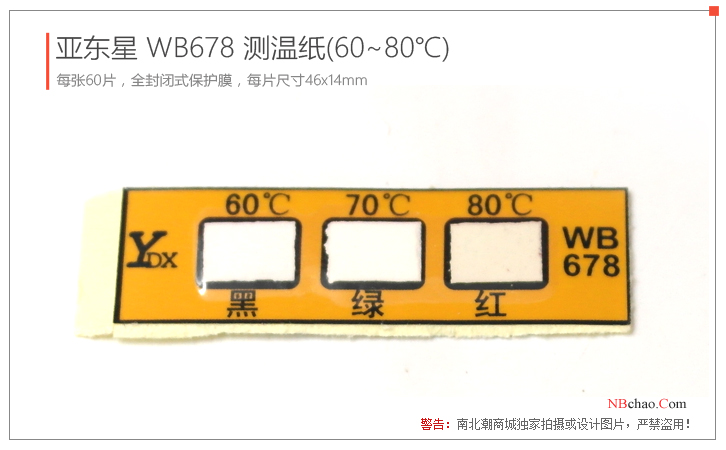

Yadongxing WB678 temperature measuring paper display

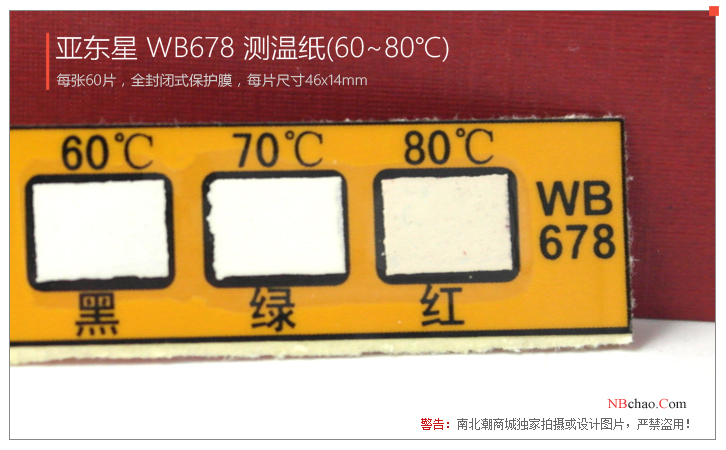

Details of Yadongxing WB678 temperature measuring paper - with protective film on the surface

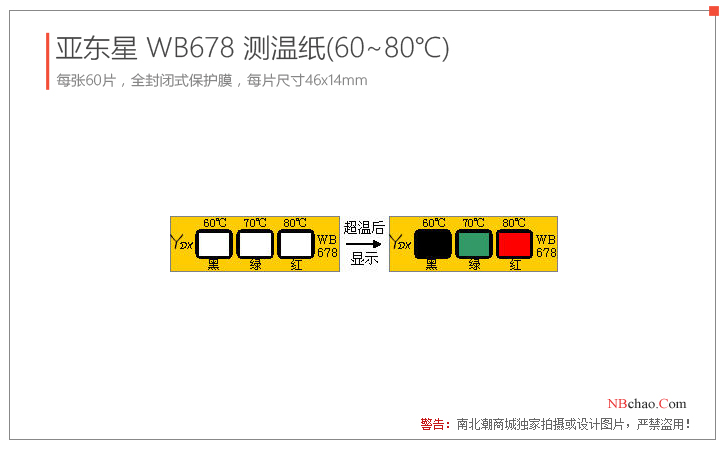

Yadongxing WB678 temperature label over-temperature change chart

Packing list：Thermometric Paper x1 (60 pieces/sheet)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
