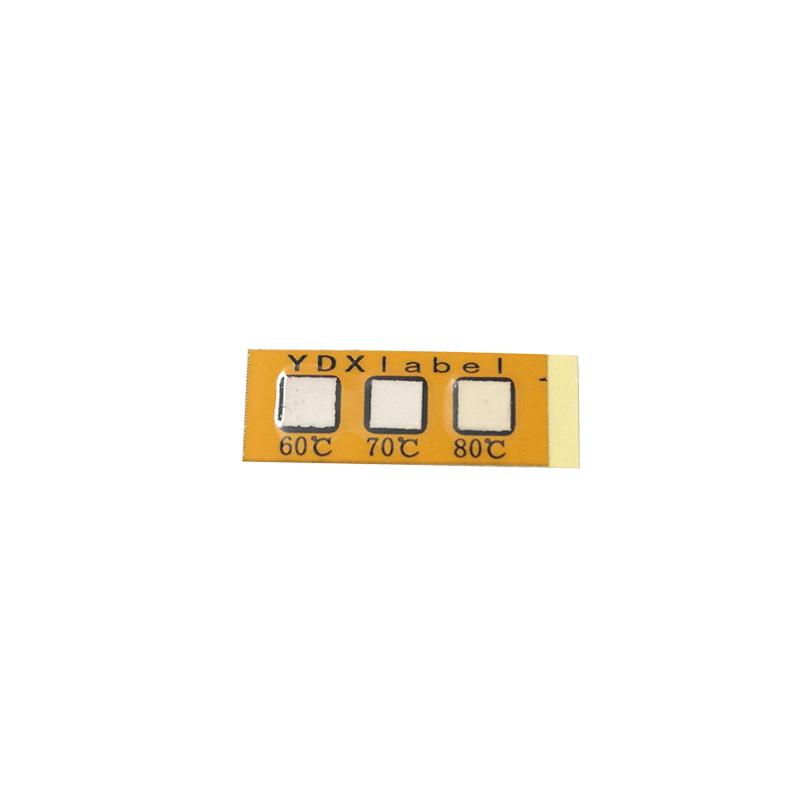

Thermometric Paper Yadongxing DW-3 (60.70.80) 120 pieces

Yadongxing DW-3 (60.70.80) Thermometric Paper is a temperature strip with a minimum temperature of 60 ℃, which can measure the temperature of component equipment, also known as Temperature Indicator Label.

$145.00/sheet

PromotionLoading...

Coupon

Model：

DW-3(60.70.80)

Certificate

YDX

Manufacturer authorization

Contact

Details SPEC Con

YDX DW-3(60.70.80) Thermometric PaperSPEC

YDX DW-3(60.70.80) Thermometric PaperDetails

YDX DW-3(60.70.80) Thermometric PaperPacking list

SKU: NB001071

Reversibility: Irreversible

number of temperature grids: 3 squares

Measurement temperature ℃: 60℃|70℃|80℃

Specifications and Dimensions: 12*30mm

Temperature grid shape: rectangle

Encasement Specifications: 120 pieces/sheet

DW-3(60.70.80)

Thermometric Paper

product description

The temperature measuring range of Yadongxing DW-3 (60.70.80) temperature measuring paper is 60°C, 70°C, 80°C. The temperature measuring sticker is a new temperature measuring tool produced to make up for some deficiencies in thermometers, thermometers, thermistors, etc. It is easy to carry, small and light, and can accurately record temperature changes. At present, temperature measuring paper is widely used in various industries.

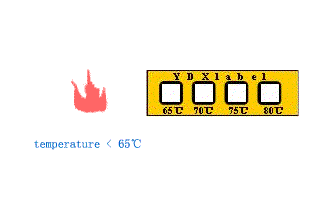

Yadongxing DW-3 (60.70.80) thermometer paper color change animation

Applications

Yadongxing DW-3 (60.70.80) temperature measuring paper can be used to measure components, external surfaces and objects in life-threatening environments, such as transistors, integrated circuits, chemical reaction tanks, engine bearings, conductive busbars, switches, joints, Temperature measurement of transformers, etc., to monitor the temperature, so that corresponding measures can be taken in time through the color change on the temperature measuring paper.

Product parameters

model	temperature range	Number of temperature grids	Sheets per sheet	Size of each piece
DW-3(60.70.80)	60 °C, 70 °C, 80 °C	3 grids	120 tablets	12x30mm
DW-3 (60.85.120)	60 °C, 85 °C, 120 °C	3 grids	120 tablets	12x30mm

Pictures

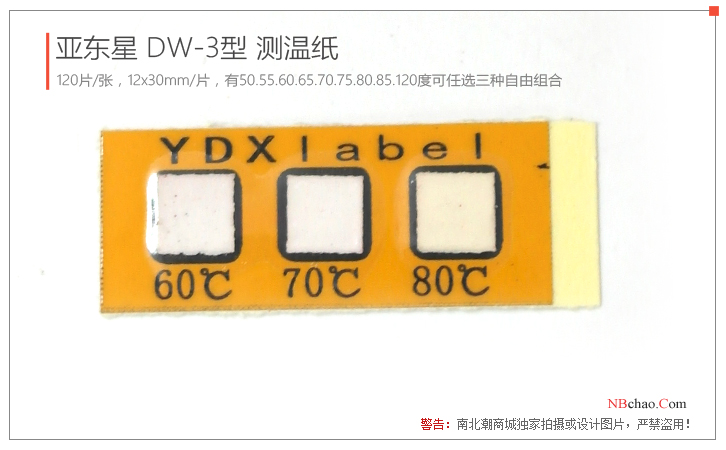

Yadongxing DW-3 (60.70.80)/(60.85.120) temperature measuring paper display Figure 1

Yadongxing DW-3 (60.70.80)/(60.85.120) thermometer paper display

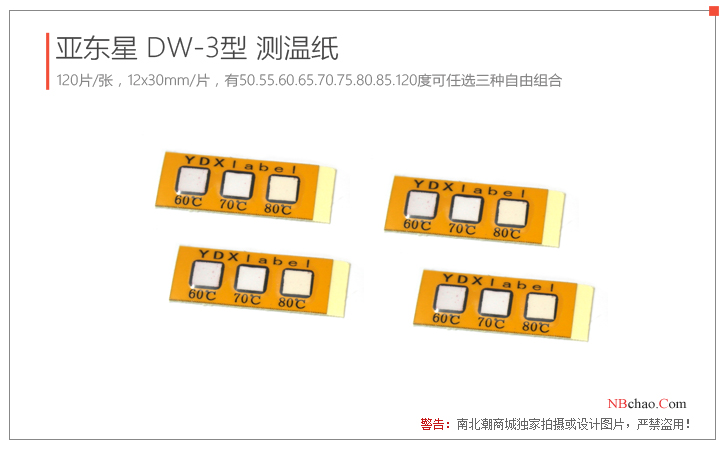

Yadongxing DW-3 (60.70.80)/(60.85.120) temperature measuring paper display picture 2

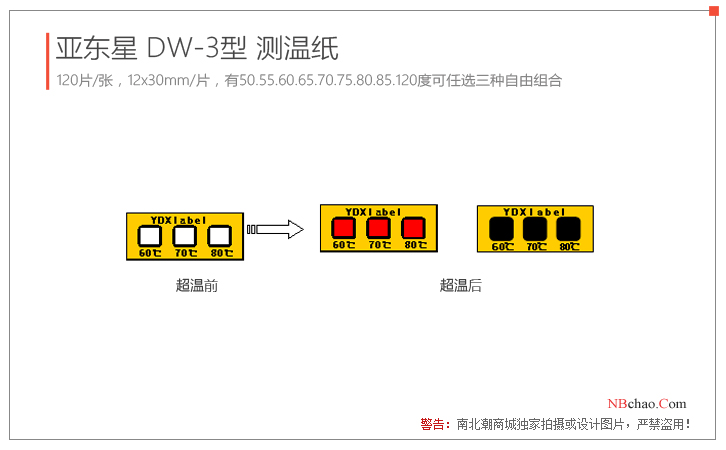

Yadongxing DW-3 (60.70.80)/(60.85.120) color change before and after overheating

Note: This display of temperature measuring papers takes 60~80°C temperature measuring papers as an example. The DW-3 model has 120 sheets per sheet, and 50.55.60.65.70.75.80.85.120 degrees are optional, such as 50.60.70. 80 combinations etc. The shape is long, and each piece has three temperatures (can be customized).

FAQ

QHow long does this Thermometric Paper need to be kept warm before it changes color?

A When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.

QHow long is the lifespan of the temperature measuring patch (temperature recording label) of Yadongxing?

A Yadongxing's temperature measuring patch can last for many years as long as it is not over-heated, especially indoors. It can be stored for 4-5 years or even longer under normal environment at room temperature. Considering that the industrial site is more complicated and the environment is harsh, we stipulate that as long as the temperature measuring patch is kept white and not over-heated, it can be used for 2-3 years. Patches that have been over-heated and discolored are better replaced in time with maintenance. When storing, it should be stored in a cool and airtight place, and it is forbidden to approach high temperature to prevent over-temperature discoloration; avoid mechanical damage such as direct scratching, scratching, and smashing.
