Thermometric Paper Yadongxing DW-3 (55.65.75) The starting point temperature is 55 ℃ (120 pieces)

SE
Yadongxing Thermometric Paper DW-3 (55.65.75) is an irreversible temperature strip with self-adhesive on the back. The temperature range of temperature measurement is 55 ℃, 65 ℃, and 75 ℃.
$145.00/sheet
PromotionLoading...
Coupon
Certificate

YDX DW-3(55.65.75) Thermometric PaperSPEC

YDX DW-3(55.65.75) Thermometric PaperDetails

YDX DW-3(55.65.75) Thermometric PaperPacking list

SKU
NB001073
Reversibility
Irreversible
number of temperature grids
3 squares
Measurement temperature ℃
55℃|65℃|75℃
Specifications and Dimensions
12*30mm
Temperature grid shape
rectangle
Encasement Specifications
120 pieces/sheet
DW-3(55.65.75)
Thermometric Paper

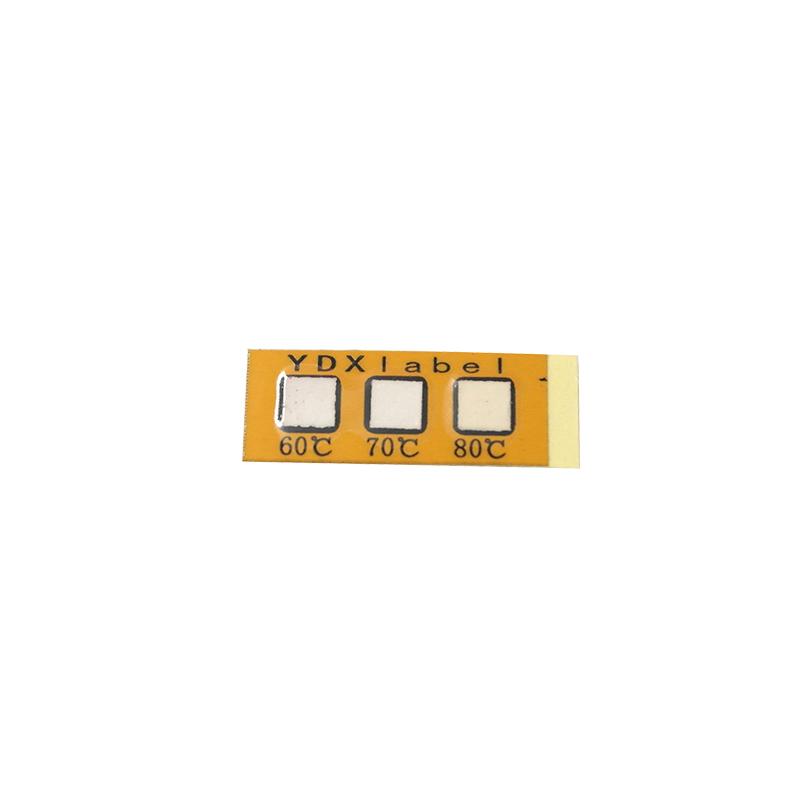

Thermometric Paper Yadongxing DW-3 (55.65.75) The starting point temperature is 55 ℃ (120 pieces) Picture

Introduction

Yadongxing temperature measuring paper DW-3 (55.65.75) is an irreversible temperature measuring sticker with self-adhesive on the back. The temperature ranges of temperature measurement are 55 ℃, 65 ℃ and 75 respectively . is 55°C. Yadongxing temperature measuring paper has the advantages of intuitiveness, easy operation, small error, and recording function. By recording the temperature, the temperature measuring sticker can find fault points that cannot be found by the thermometer. It is also convenient to carry and has a long storage life. , under normal environmental conditions, DW-3 (55.65.75) thermometer paper can be stored for 2 to 3 years.

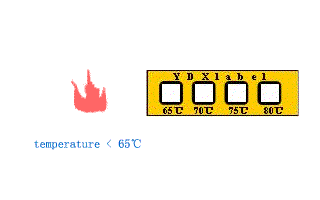

Yadongxing temperature paper DW-3 (55.65.75) color change animation

Product parameters

modeltemperature rangeNumber of temperature gridsSheets per sheetSize of each piece
DW-3(55.65.75)55 °C, 65 °C, 75 °C3 grids120 tablets12x30mm
DW-3 (55.85.120)55 °C, 85 °C, 120 °C3 grids120 tablets12x30mm

Features

1,The starting temperature of Yadongxing temperature measuring paper DW-3 (55.65.75) is 55°C.

2. The temperature measuring paper can record the temperature, which is convenient for the staff to analyze later.

3. When the temperature is overheated, the temperature window of the temperature measuring paper will change from white to red or other colors, and the color change is obvious before and after, which is easy to observe.

4. The surface of the temperature measuring paper has a protective film, which can prevent oil and water. With self-adhesive on the back, it can be easily pasted on the temperature measuring equipment.

Pictures

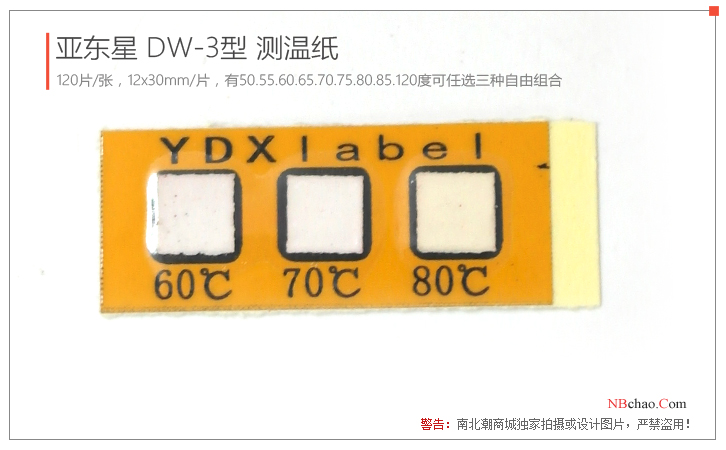

Yadongxing temperature measuring paper DW-3 (55.65.75)/(55.85.120) display picture 1

Yadongxing temperature measuring paper DW-3 (55.65.75)/(55.85.120) display picture 1

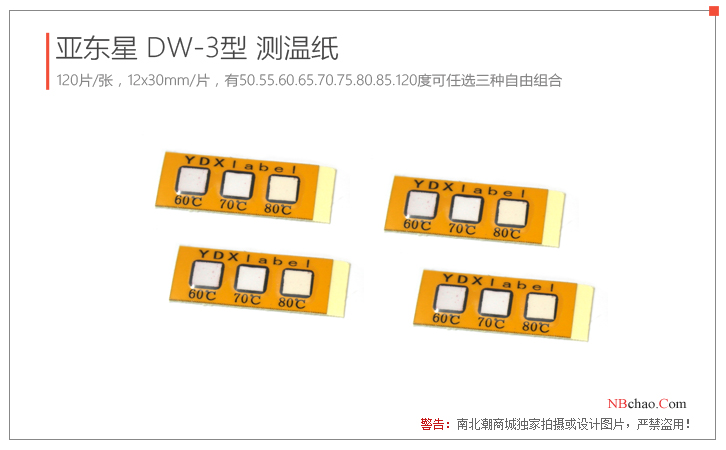

Yadongxing temperature measuring paper DW-3 (55.65.75)/(55.85.120) display picture 2

Yadongxing temperature measuring paper DW-3 (55.65.75)/(55.85.120) display picture 2

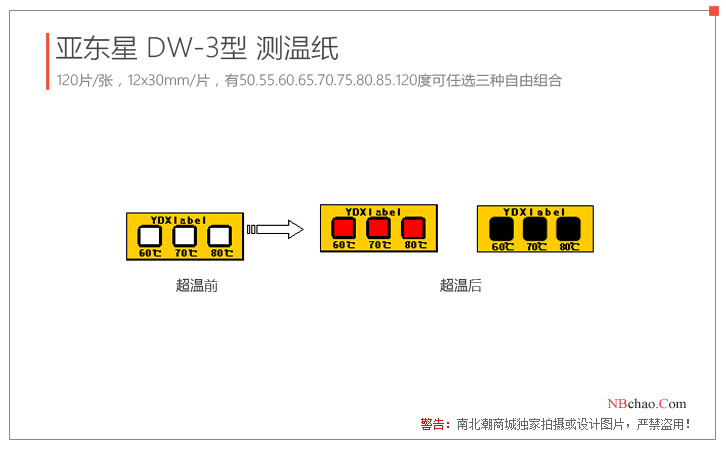

Yadongxing temperature measuring paper DW-3 (55.65.75)/(55.85.120) over-temperature color change chart

Yadongxing temperature measuring paper DW-3 (55.65.75)/(55.85.120) over-temperature color change chart

Note: This display of temperature measuring papers takes 60~80°C temperature measuring papers as an example. The DW-3 model has 120 sheets per sheet, and 50.55.60.65.70.75.80.85.120 degrees are optional, such as 50.60.70. 80 combinations etc. The shape is long, and each piece has three temperatures (can be customized).

FAQ
QHow long does this Thermometric Paper need to be kept warm before it changes color?
A When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.
QHow long is the lifespan of the temperature measuring patch (temperature recording label) of Yadongxing?
A Yadongxing's temperature measuring patch can last for many years as long as it is not over-heated, especially indoors. It can be stored for 4-5 years or even longer under normal environment at room temperature. Considering that the industrial site is more complicated and the environment is harsh, we stipulate that as long as the temperature measuring patch is kept white and not over-heated, it can be used for 2-3 years. Patches that have been over-heated and discolored are better replaced in time with maintenance. When storing, it should be stored in a cool and airtight place, and it is forbidden to approach high temperature to prevent over-temperature discoloration; avoid mechanical damage such as direct scratching, scratching, and smashing.
