Thermometric Paper Yadongxing DW-3 (65.75.85) with 65 ℃ as the starting temperature (120 pieces)

Yadongxing DW-3 (65.75.85) Thermometric Paper is a 3-grid Temperature Indicator Label with 65 ℃ as the starting temperature point, which is an irreversible Thermometric Paper.

$145.00/sheet

PromotionLoading...

Coupon

Model：

DW-3(65.75.85)

Certificate

YDX

Manufacturer authorization

Contact

Details SPEC Con

YDX DW-3(65.75.85) Thermometric PaperSPEC

YDX DW-3(65.75.85) Thermometric PaperDetails

YDX DW-3(65.75.85) Thermometric PaperPacking list

SKU: NB001074

Reversibility: Irreversible

number of temperature grids: 3 squares

Measurement temperature ℃: 65℃|75℃|85℃

Specifications and Dimensions: 12*30mm

Temperature grid shape: rectangle

Encasement Specifications: 120 pieces/sheet

DW-3(65.75.85)

Thermometric Paper

Introduction

The temperature range of Yadongxing DW-3 (65.75.85) temperature measuring paper is 65 ℃, 75 ℃, 85 ℃, and the starting temperature is 65 ℃. The temperature measurement test is a new type of temperature measurement technology in the temperature measurement industry. It adopts the temperature-sensitive color-changing temperature measurement technology. If the temperature measurement paper is pasted on the device, the color will change as the temperature of the device changes. Clearly and intuitively grasp the temperature changes of the equipment. Yadongxing temperature measuring paper is an irreversible temperature measuring paper with self-adhesive straps. It has some advantages that temperature measuring instruments do not have, and it is gradually widely used in industry.

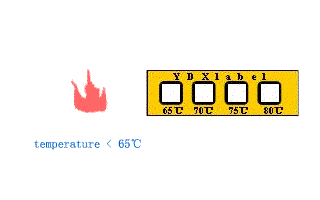

Yadongxing DW-3 (65.75.85) thermometer paper color change animation

Product parameters

model	temperature range	Number of temperature grids	Sheets per sheet	Size of each piece
DW-3(65.75.85)	65 °C, 75 °C, 85 °C	3 grids	120 tablets	12x30mm
DW-3 (65.85.120)	65 °C, 85 °C, 120 °C	3 grids	120 tablets	12x30mm

Applications

Yadongxing DW-3 (65.75.85)/(65.85.120) temperature measuring paper is suitable for temperature measurement of transistors, integrated circuits, chemical reaction tanks, engine bearings, conductive busbars, switches, joints, transformers and other components. Widely used in industry, railway industry, processing industry, manufacturing industry, etc.

Pictures

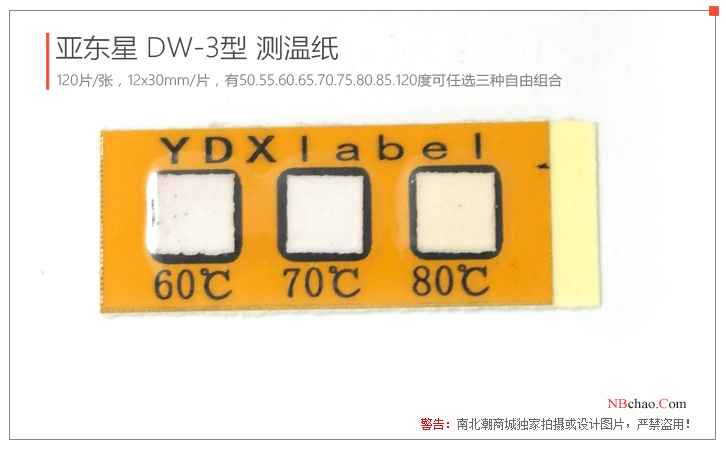

Yadongxing DW-3 (65.75.85)/(65.85.120) temperature measuring paper display Figure 1

Yadongxing DW-3 (65.75.85)/(65.85.120) thermometer paper display

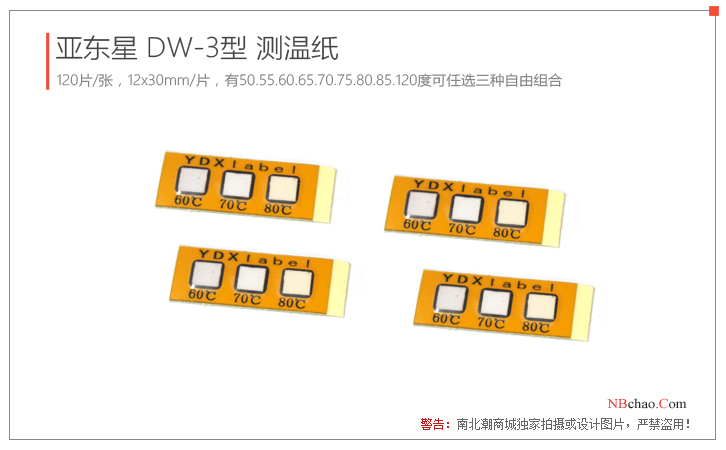

Yadongxing DW-3 (65.75.85)/(65.85.120) temperature measuring paper display picture 2

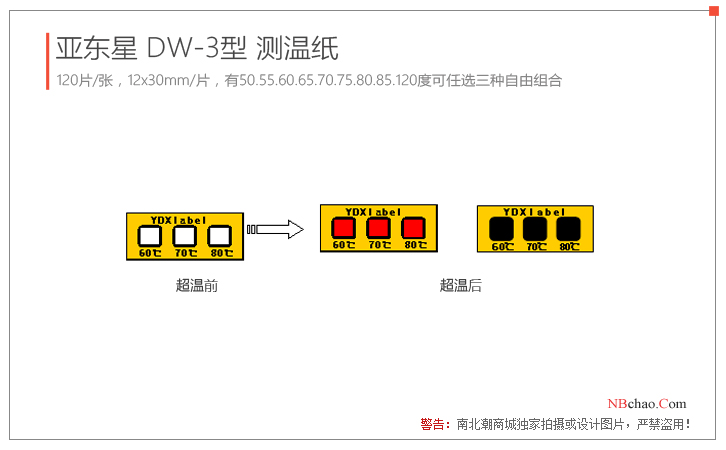

Yadongxing DW-3 (65.75.85)/(65.85.120) thermal paper color change chart

Note: This display of temperature measuring papers takes 60~80°C temperature measuring papers as an example. The DW-3 model has 120 sheets per sheet, and 50.55.60.65.70.75.80.85.120 degrees are optional, such as 50.60.70. 80 combinations etc. The shape is long, and each piece has three temperatures (can be customized).

FAQ

QHow long does this Thermometric Paper need to be kept warm before it changes color?

A When the temperature of the mark is reached, the corresponding grid will change color, usually in a few seconds.

QHow long is the lifespan of the temperature measuring patch (temperature recording label) of Yadongxing?

A Yadongxing's temperature measuring patch can last for many years as long as it is not over-heated, especially indoors. It can be stored for 4-5 years or even longer under normal environment at room temperature. Considering that the industrial site is more complicated and the environment is harsh, we stipulate that as long as the temperature measuring patch is kept white and not over-heated, it can be used for 2-3 years. Patches that have been over-heated and discolored are better replaced in time with maintenance. When storing, it should be stored in a cool and airtight place, and it is forbidden to approach high temperature to prevent over-temperature discoloration; avoid mechanical damage such as direct scratching, scratching, and smashing.
