FANGRUI instrument LVDV-1T Rotational Viscometer viscosity range 1~ 2 million mPa · s

Rotational viscometer

Introduction

The LVDV-1T Rotational Viscometer is well integrated into touchscreen technology to measure viscosity quickly, accurately and conveniently with a sleek and modern technology. Powerful, far from being comparable to previous LCD viscometers.

The self-built 30 sets of test programs help users quickly and accurately obtain the viscosity and related data of the sample. The large 5-inch color touch screen can comprehensively and vividly display various parameters and Operating Conditions. It has the obvious advantages of many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working Voltage. It can completely replace the same type of imported instruments, and follow the new scientific and technological trend of domestic (CN) viscometers.

LVDV-1T Rotational ViscometerThe absolute viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids can be determined.

Features

(1) Adopt ARM technology and built-in Linux system. The operation interface is simple and clear, and the viscosity test can be carried out quickly and easily through the creation of test programs and data analysis;

(2) The viscosity measurement value is accurate, and each range is automatically calibrated by computer, with high accuracy and small error;

(3) Rich display content: in addition to viscosity, there are temperature, shear rate, shear stress, the percentage of the measured value in the full-scale value (graphic display), the range overflow alarm, automatic scanning, the maximum measurement range under the current rotor speed combination, date, time, etc. And it can display the kinematic viscosity in the case of known density, which greatly meets the different measurement requirements of users;

(4) Complete functions, timed measurement, self-built 30 sets of test programs, access to 30 sets of measurement data, real-time display of viscosity curves, printing data and curves, etc.;

(5) Pre-level level, intuitive and convenient level adjustment;

(6) Optional temperature probe, special thermostatic bath for viscometer, thermostatic cup, printer, standard viscosity sample (standard silicone oil), etc.;

(7) Chinese and English operating systems.

Application industry

LVDV-1T Rotational ViscometerIt is widely used in various fluids that require viscosity measurement and fluids under high temperature melting. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products, etc., as well as industries that require high-temperature melting, such as asphalt, paraffin, hot melt adhesives, etc.

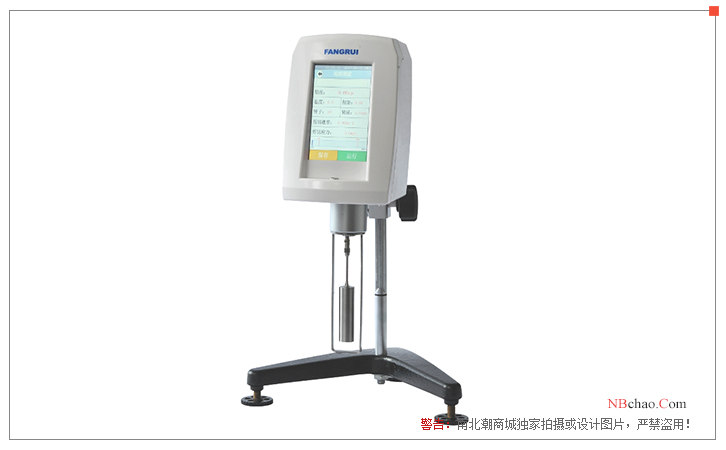

Product display diagram

Packing list：Viscometer host x1, R2-R7 rotor x1 (set), triangular base x1, column x1, power adapter x1, instrument aluminum box gold foil x1, rotor protection frame x1, sample cylinder x1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
