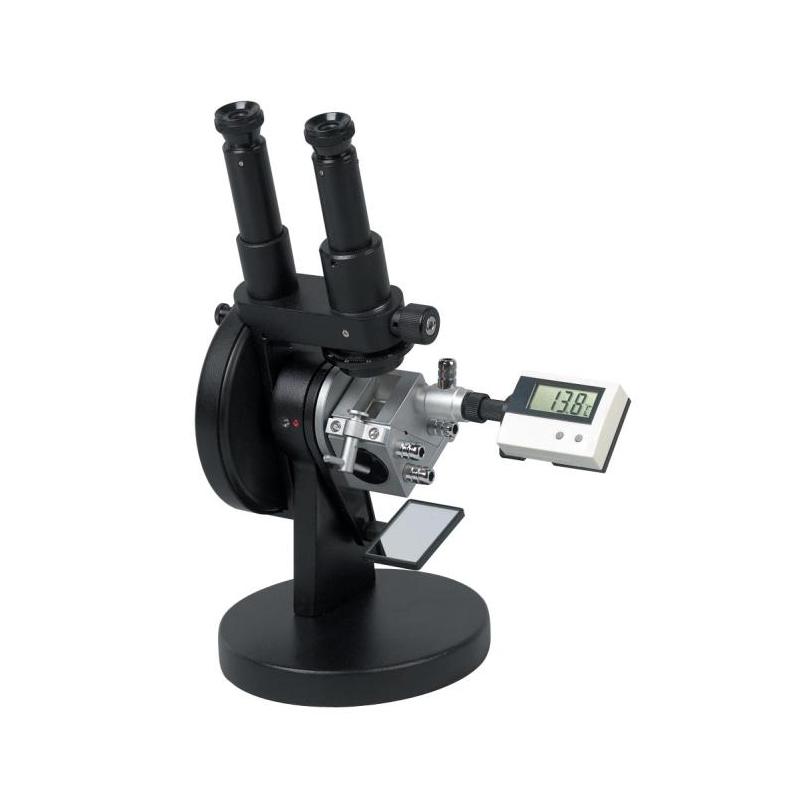

INESA WYA-2W Abbe binocular refractometer

WYA-2W

Abbe refractometer

nD measurement range 1.3000~1.7000nD, nD measurement accuracy 0.0003nD, Brix measurement range 0~95% Brix, telescope magnification 2x, reading magnification 22x.

Introduction

The WYA-2W Abbe refractometer is an optical refraction instrument that uses the principle of refraction to quickly and easily determine the refractive index (nD), sugar content (Bix) and concentration of a solution.The WYA-2W Abbe refractometer is a binocular refractometer with a measurement range of 1.3~1.7nD, which uses a stainless steel base and a prism made of hard glass, which makes the refractometer more resistant to wear. Abbe refractometers are suitable for the determination of the refractive index nD and average dispersion nD-nC of transparent, translucent liquids or solids. In addition, the refractometer can be connected to a thermostat to determine the refractive index in the temperature range of 10-50°C.

Product Structure

The composition and structure of the instrument electro-optical object light WYA-2W Abbe refractometer are: 1. base, column, 2, prism rotating handwheel, 3, disc group (with scale plate inside), 4, small reflector, 5, bracket, 6, reading tube, 7, 2 eyepieces, 8, telescope tube, 9, indication adjustment screw, 10, Amici prism handwheel, 11, dispersion value scale circle, 12, prism locking wrench, 13, prism group, 14, thermometer base, 15, thermostat joint, 16, protective cover, 17, spindle, 18, Mirror.

Applications

The WYA-2W Abbe refractometer is suitable for petroleum industry, oil industry, industry, paint industry, daily chemical industry, sugar industry and geologyreconnaissance and other industries.

Actual picture of the product

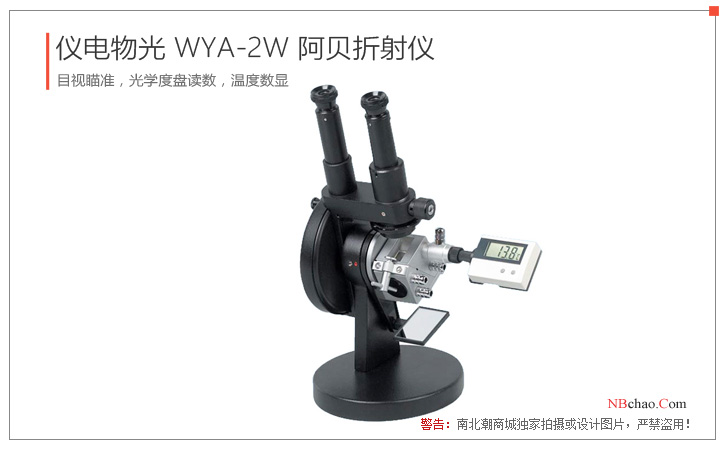

Electro-optical WYA-2W Abbe refractometer (refractometer) display

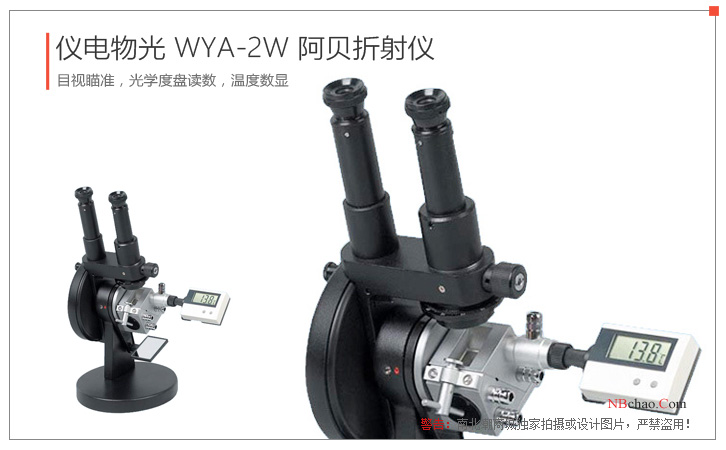

Detail 1 of the instrument electro-object object light WYA-2W Abbe refractometer (refractometer) - eyepiece, liquid crystal display

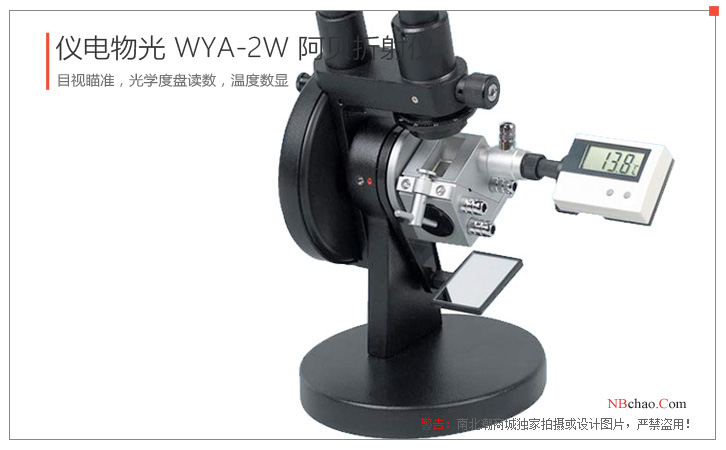

Detail of the instrument electro-optical object light WYA-2W Abbe refractometer (refractometer) 2 - base, reflector

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
