FANGRUI NDJ-1C Brinell high temperature Rotational Viscometer 250 ℃/20W mPa·s

SE
FANGRUI NDJ-1C Brinell high temperature Rotational Viscometer is equipped with four rotors, which meet GB standards. NDJ-1C Brinell high temperature Rotational Viscometer adopts liquid crystal display and has timing function. Can be used in a variety of industrial fields.
$1406.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

FangRui NDJ-1C Cloth Rotational ViscometerSPEC

FangRui NDJ-1C Cloth Rotational ViscometerDetails

FangRui NDJ-1C Cloth Rotational ViscometerPacking list

SKU
NB010830
Display
LCD
Measuring range
10~200000mPa·s
Rotor speed
0.5/1/2/5/10/20/50rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±2%
Power
220V / 50Hz
Standards
GB/T2794-1995；HG/T3660-1999T；JTG E20-2011
Dimensions
300*300*450mm
Weight
10kg
Capacity
15~25ml
Temperature range
RT+~250°C
temperature Accuracy
0.1℃
Timer
Flexible setting according to sample conditions
Viscosity Linear dispersion
without
Save measurement results
without
Data Interface
Data, Linear dispersion printable (standard with print interface, optional printer required)
NDJ-1C
Cloth Rotational Viscometer

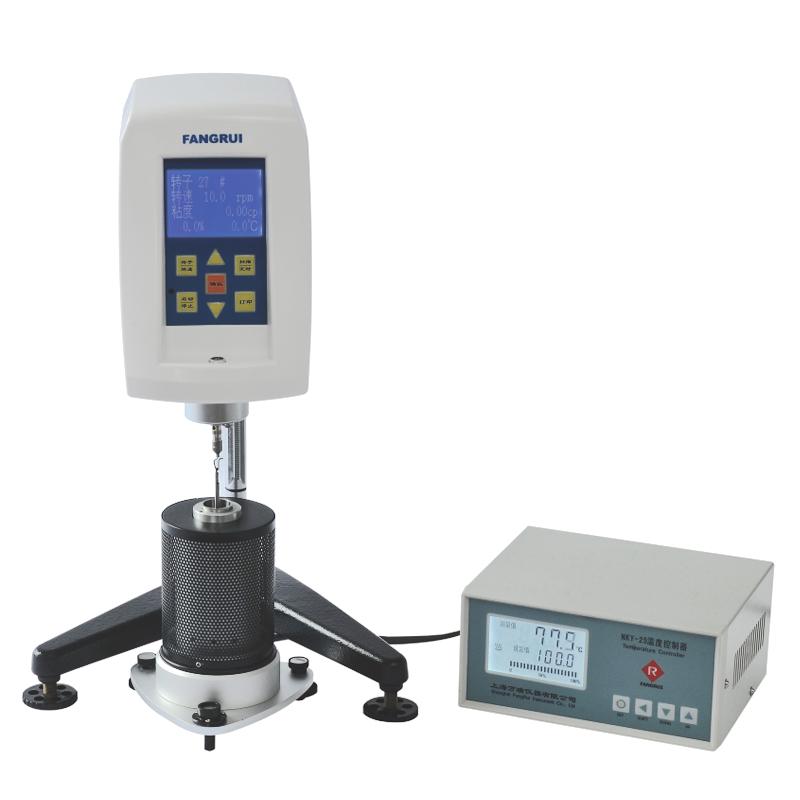

FANGRUI NDJ-1C Brinell high temperature Rotational Viscometer 250 ℃/20W mPa·s Picture

Introduction

NDJ-1C Brookfield high-temperature Rotational Viscometer is a high-temperature rotational digital viscometer, which can measure the dynamic viscosity of substances that are solid at room temperature and melt into fluid after being heated at high temperature (such as hot melt adhesive, asphalt, paraffin, polyethylene, etc.) . With the advantages of accurate, fast, intuitive and simple measurement, the instrument is recommended by the adhesive industry standard compilation and selected by customers in related industries.

Standards

Determination of viscosity of GB/T2794-1995 adhesives, determination of melt viscosity of HG/T3660-1999T hot melt adhesives, test requirements of T0625-2011 in JTG E20-2011 Test Regulations for Asphalt and Asphalt Mixtures in Highway Engineering.

Pictures

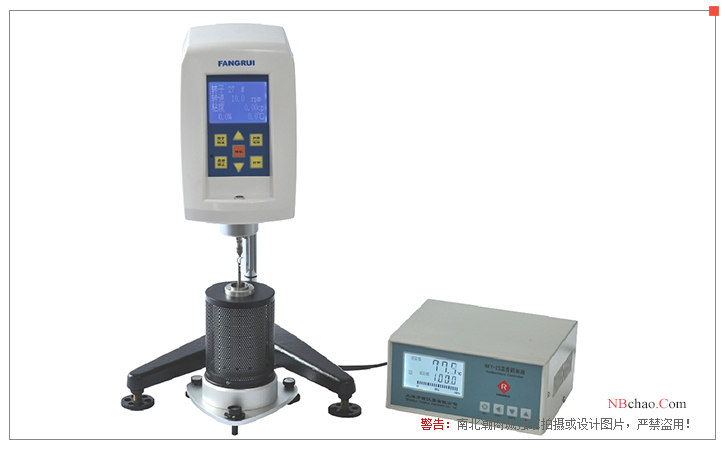

Display of FANGRUI NDJ-1C Brookfield High Temperature Rotational Viscometer

FAQ
QCan this high temperature Viscometer measure viscosity below 50?
A No, the lower limit of viscosity detection of NDJ-1C machine is 50mPa.s, which is not recommended. There are machines specially used for low viscosity testing
QCan you test the drug part? Similar to semi-solids and ointments.
A This NDJ-1C is OK and conforms to the general principles of the Pharmacopoeia.
QCan this Viscometer be used to test the viscosity of water-based liquids? For example, water-based fracturing fluids over 100 ° C
A Yes, a white hat on the head of the Viscometer.
QCan the solid hot melt adhesive be tested with this NDJ-1C Brinell high temperature rotational viscometer?
A Hello, yes, you can melt the hot melt adhesive into a fluid substance before using this Brinell rotational viscometer test.
QFind a cloth rotational viscometer for GB/T22427.7
A This NDJ-1C cloth rotational viscometer is.
QIs the NDJ-1C printer standard?
A Hello, no, the printer of Brinell rotational viscometer needs to be purchased separately.
QWhat is the maximum temperature that the NDJ-1C rotational viscometer can test?
A Hello, the test temperature of NDJ-1C is up to 250 ° C.
