FANGRUI STM-2T Stormer Viscometer Viscosity Range 40.2~ 141.0KU

STM-2T

Stormer Viscometer

Display Viscosity Linear dispersion, suitable for Coating, Paint, Printing ink and other industries, in line with ASTM D562 and GB9296 standards, STM-2T standard temperature probe interface, with timing measurement function, programmable.

Introduction

STM-2T is an upgraded product of STM-2, STM-III, STM-IV, STM-IVB and other Stormer viscometers. Well integrated with touch screen technology, it uses a fashionable and modern high technology to quickly, accurately and conveniently measure the viscosity of paint, ink and coating. Powerful and highly intelligent, it is far from comparable to previous liquid crystal display viscometers.

Self-built 30 sets of test procedures help users to quickly and accurately obtain the viscosity and related data of the sample. The 5-inch super-large color touch screen can comprehensively and vividly display various parameters and Operating Conditions. It has obvious advantages such as many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, and wide working Voltage.

main feature

① Using ARM technology, built-in Linux system: the operation interface is simple and clear, and the viscosity test can be performed quickly and conveniently through the creation of test programs and data analysis;

② Accurate viscosity measurement: automatic calibration by computer, high precision and small error;

③  Rich display content: In addition to displaying the three commonly used parameters of KU, g, and cp, there are also temperature, the percentage of the measured value in the full range value (graphic display), viscosity curve, range overflow alarm, measurement time, date, etc.;

④ Timing measurement function: very practical. The paints, inks, and coatings we measure are typical non-Newtonian liquids, and their viscosity is not only related to temperature (the viscosity decreases as the temperature rises), but also related to the length of the measurement time. Paints, inks and coatings exhibit the characteristics of shear thinning. The longer the measurement time, the lower the viscosity. If the viscosity of the same type of samples is to be comparable, the measurement time needs to be the same;

⑤ Self-built 30 sets of test programs: can be compiled by oneself and quickly called;

⑥ Access to 30 sets of measurement data and curves; stored in the viscometer, the data includes sample name, KU, g, CP value, date, etc.;

⑦ Real-time display of viscosity curve: it can be adjusted at any time on the touch screen;

⑧ Can be connected to a micro-printer and a computer: there are two interfaces respectively, the serial port is connected to the computer, and the parallel port is connected to the printer;

⑨ Front level meter: The rotor is placed vertically into the sample, which is very important for the accuracy of the measurement data. By observing the front level meter, adjusting the three level feet of the base can easily adjust the water bubble of the level meter to the middle position (the current domestic (CN) Stormer viscometer on the market does not have a level adjustment device);

⑩  Abundant optional accessories: temperature probe, constant temperature bath for viscometer, constant temperature cup, printer, standard viscosity samples, etc.;

Applications

STM-2T Stormer Viscometer is widely used in measuring the viscosity of paint, ink, coating or other industries that use KU value to express viscosity, and complies with international standards ASTM, D562 and GB9296 and other relevant national standards.

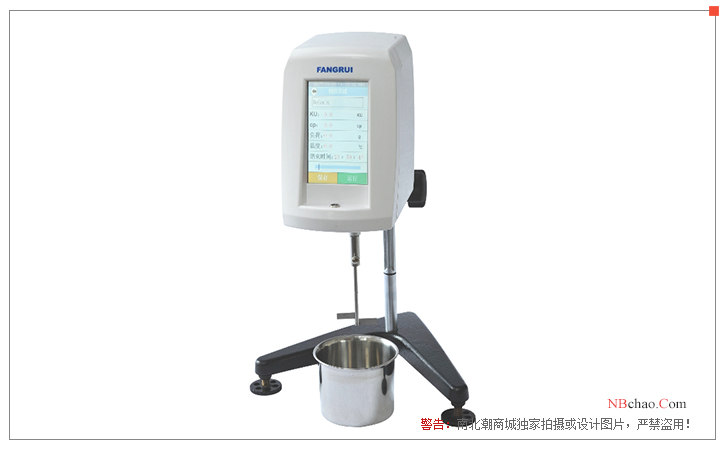

Pictures

Packing list：Viscometer host x1, KU rotor x1, triangular base x1, column x1, sample container cup x1, power adapter x1, instrument aluminum box gold foil x1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
