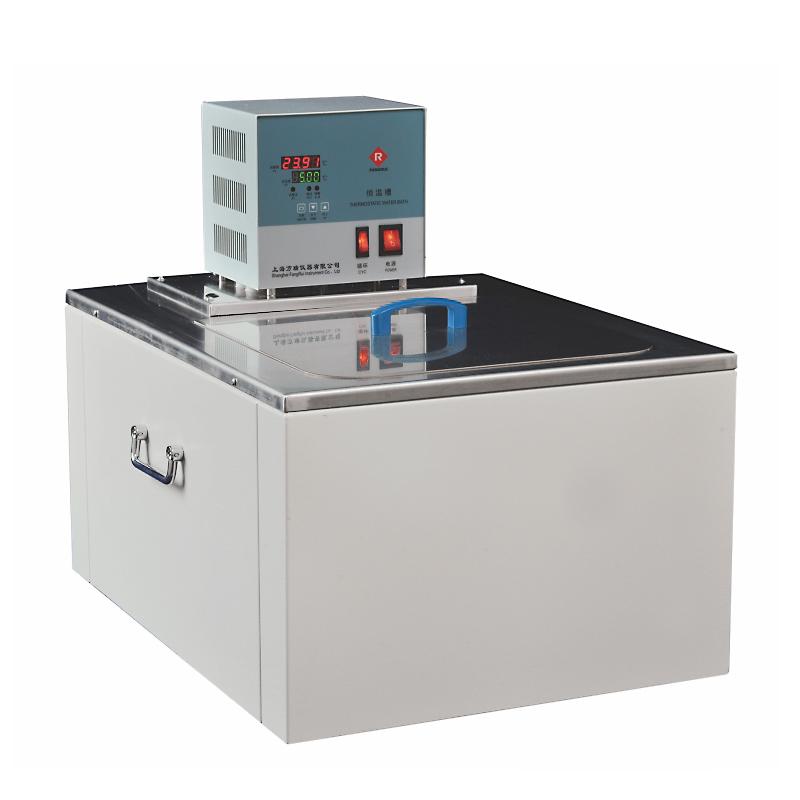

FANGRUI CH1030 constant temperature circulation tank, volume 30 L, temperature range RT + 10~100 ℃

CH1030

Thermostat

Introduction

FANGRUI CH1030 constant temperature circulation bath is a microcomputer temperature-controlled constant temperature Water Bath (Oil Bath). It adopts a new high-performance single-chip microcomputer control, self-tuning PID adjustment, and uses imported temperature sensors to measure temperature, with high temperature control accuracy and small fluctuations; Stirring motor, low noise and long life. It adopts a large-screen backlit LCD display, and the parameters are clear and clear, beautiful and fashionable. The temperature control of the instrument is accurate, stable and reliable, and the operation is convenient and safe.

Features

1. Adopt high-performance single-chip microcomputer control, PID adjustment, and self-tuning control technology, with high temperature control accuracy and short stabilization time;

2. It has the protection function of breaking the coupler to prevent the instrument from getting out of control;

3. The upper limit over-temperature alarm function can be set by yourself, and if it exceeds the range, it will alarm immediately;

4. The instrument works stably and reliably, and the operation is very convenient;

5. Large-screen backlit LCD, all parameters are clear and beautiful;

6. The Circulating Chiller can lead the constant temperature liquid in the tank to the outside to establish a second constant temperature field;

7. The liner and table are made of high-quality stainless steel, which is corrosion-resistant and easy to clean.

Application

CH1030 constant temperature circulation tank can not only carry out constant temperature test directly in the Water Tank, but also use the external circulation function to guide the controlled constant temperature liquid in the tank to other equipment (such as viscometer, density meter, etc.) Surface Tensiometer, polarimeter, rotary evaporator, Spectrophotometer , etc.).

CH1030 constant temperature circulation tank is widely used in bioengineering, medicine, food, chemical industry, metallurgy, chemical analysis, petroleum and other fields. It provides users with a high-precision, controlled and constant temperature source. It is a satisfactory constant temperature device for schools, factory laboratories, and quality inspection departments.

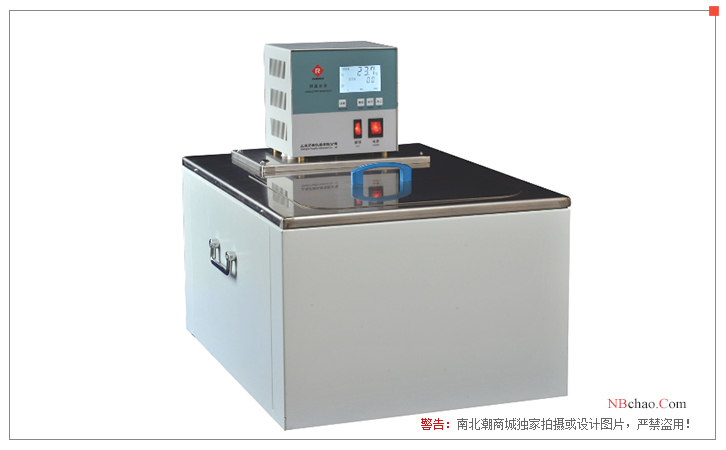

Pictures

Packing list：Host x1, cover x1, silicone tube x1, power cord x1, manual, certificate of conformity, warranty card x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
