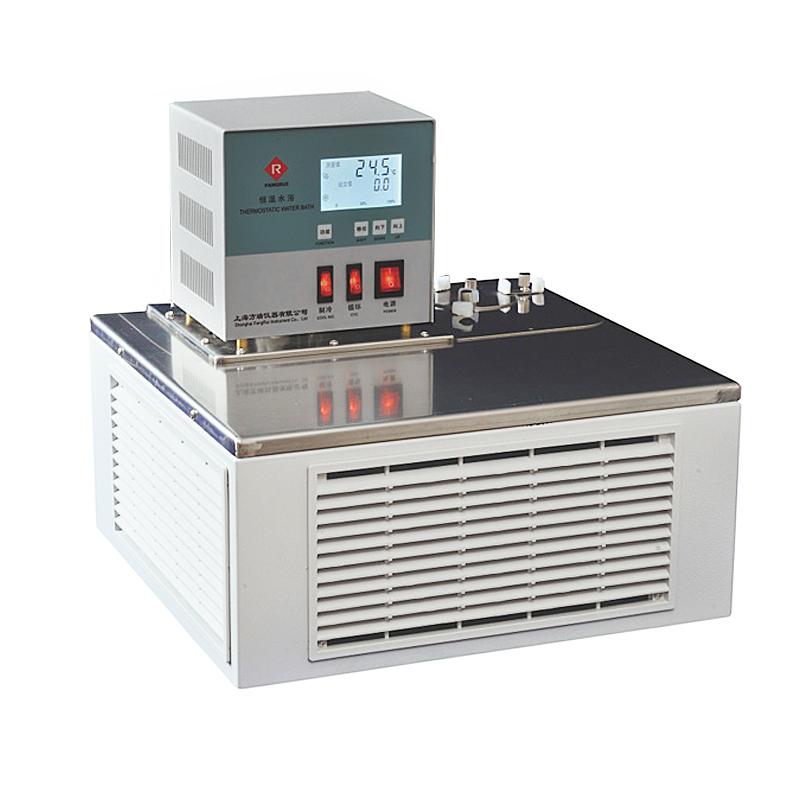

FANGRUI DC1506N (W) Horizontal low temperature constant temperature Water Bath Temperature range -15~ 100 ℃

DC1506N(W)

Thermostat

Introduction

FANGRUIs DC1506N(W) horizontal low-temperature constant-temperature Water Bath is a microcomputer temperature-controlled constant temperature Water Bath (Oil Bath). It adopts a new high-performance single-chip microcomputer control, self-tuning PID adjustment, and uses imported temperature sensors for temperature measurement. Low temperature; high-quality refrigeration compressors (some models are all imported brand compressors or compressor units), high cooling efficiency, fast cooling, low noise; high-quality fully sealed stirring motors, lubricating grease is not easy to volatilize, low noise and long life.

Features

1. Adopt high-performance single-chip microcomputer control, PID adjustment, and self-tuning control technology, with high temperature control accuracy and short stabilization time;

2. It has the protection function of breaking the coupler to prevent the instrument from getting out of control;

3. There is a liquid level protection device, which can effectively prevent various failures caused by empty heating of the heating tube;

4. The upper limit over-temperature alarm function can be set by yourself, and if it exceeds the range, it will alarm immediately;

5. The instrument works stably and reliably, and the operation is very convenient;

6. The inner tank, table top and all parts immersed in liquid are made of high-quality stainless steel, which is corrosion-resistant and easy to clean;

7. It adopts a large-screen backlit LCD display, and the parameters are clear and clear, beautiful and fashionable.

Application

DC1506N(W) horizontal low temperature constant temperature Water BathThe constant temperature test can be carried out directly in the Water Tank, or the external circulation function can be used to guide the controlled constant temperature liquid in the tank to other equipment through the hose connected with other equipment.

DC1506N(W) horizontal low temperature constant temperature Water BathIt is widely used in bioengineering, medicine, food, chemical industry, metallurgy, chemical analysis, petroleum and other fields, providing users with a high-precision, controlled, and uniform temperature constant field source. The constant temperature device that is satisfactory for the laboratory and quality inspection department.

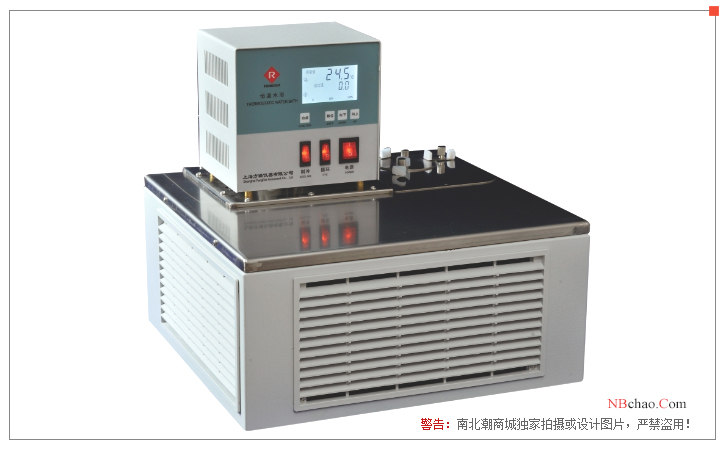

Pictures

Packing list：Host x1, cover x1, silicone tube x1, power cord x1, manual, certificate of conformity, warranty card x1, metal baffle x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
