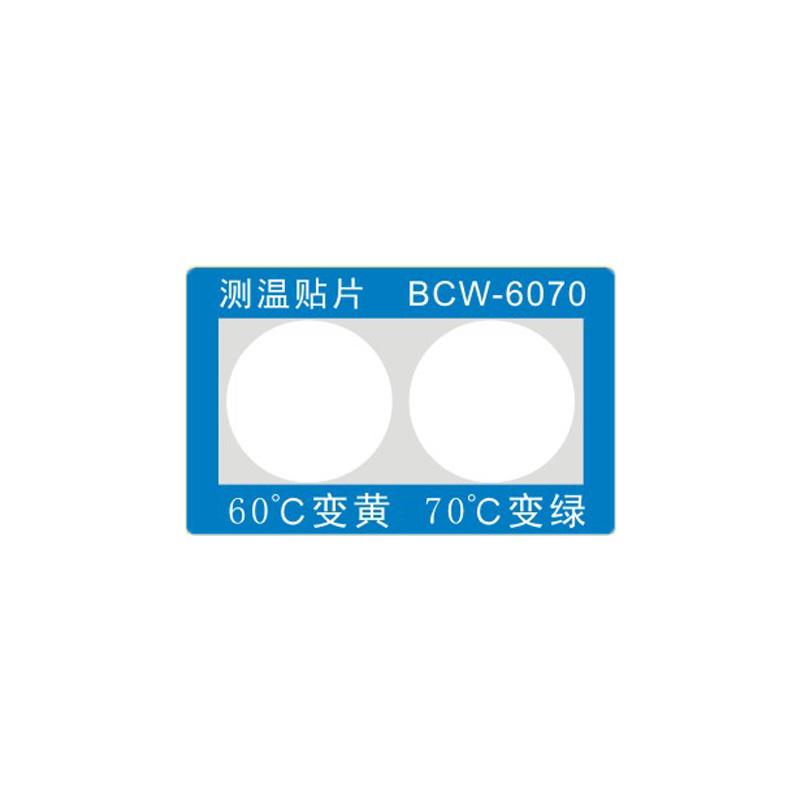

CHANGLONG BCW1-6070 Reflective temperature measuring patch, temperature 60/70 ℃

BCW1-6070

Reflective temperature measuring patch

The discoloration method is irreversible, the number of temperature grids is 2 grids, Measuring temperature ℃ 60 ℃ | 70 ℃, specification size 25 * 38mm, temperature grid shape rectangle, Encasement specification 10 pieces/sheet, Color change white → yellow, green

Introduction

Changlong BCW1-6070 temperature measuring patchIt has unique color-changing temperature display, reflective display and temperature recording functions, and it has self-adhesive. Once the temperature of the temperature monitoring part reaches or exceeds the rated temperature of the temperature-measuring patch, the temperature-measuring patch will change color immediately, and the over-temperature number at that place will be displayed on the temperature-measuring patch. With the reflective display function, whether it is day or night, it is easy for people to find the temperature rise of the temperature monitoring part during the inspection, so as to find out the hidden trouble.

After the temperature measuring patch is overheated, it will no longer turn back to the original white, and it will be in the recording state.

Applications

BCW1-6070 temperature measuring patch is applied to the connection part of the busbar of the substation, and can also be pasted on the connection between the busbar and the equipment terminal and the contact of the isolating switch, and can also be pasted on the transformer, capacitor, motor and other electrical equipment. On the casing, it is used to monitor the temperature of the bus connection and the casing of the electrical equipment. , especially at night, the temperature measuring patch has a reflective display function.

physical graphics

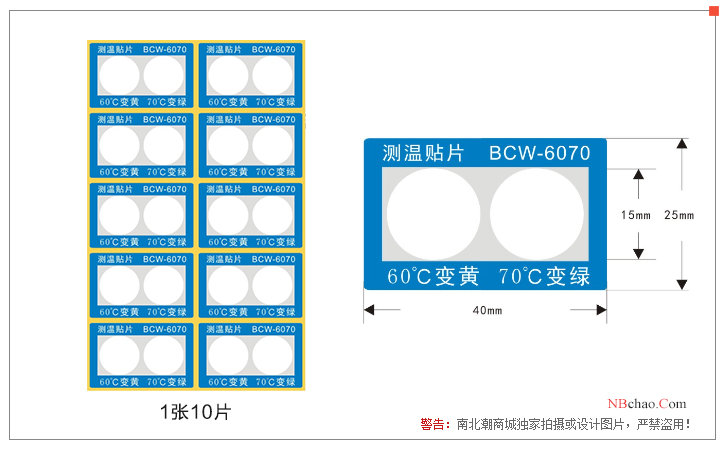

Each BCW1-6070 temperature measuring patch contains 10 pieces, as shown in the figure below:

Packing list：Temperature measurement patch 10 pieces/sheet

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
