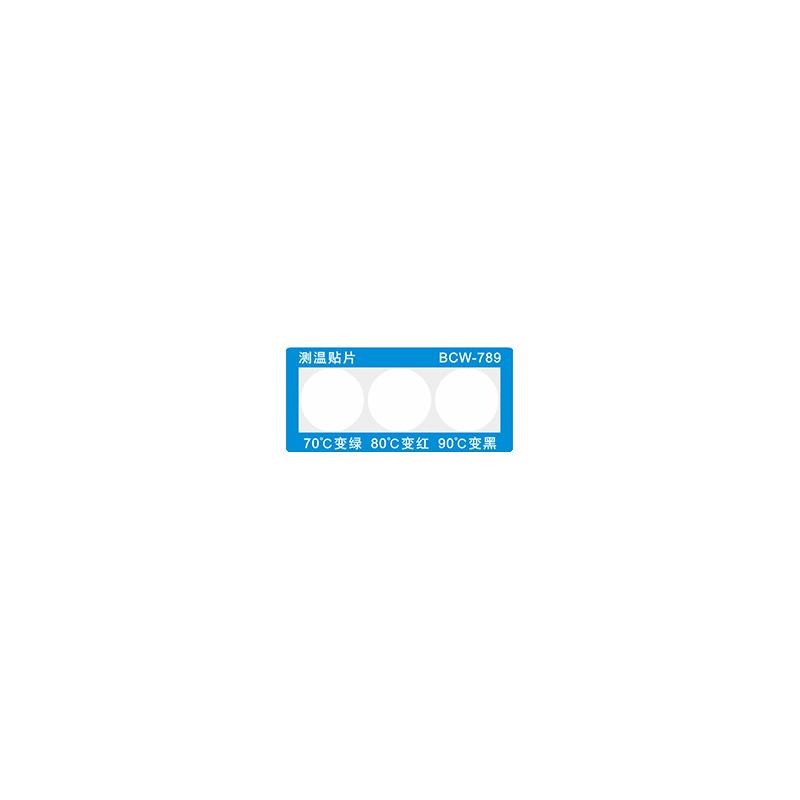

CHANGLONG BCW-789 Reflective temperature paper, temperature 70/80/90 ℃
SE
BCW-789
-
CHANGLONG SWX-7080-4-8 railway special type temperature patch, temperature 70/80 ℃$ 88.00SE -
CHANGLONG BCW1-7080 Reflective temperature measuring patch, temperature 70/80 ℃$ 77.00SE -
CHANGLONG BCW4-90 reflective temperature indicator sticker, specification 40 × 40mm temperature 90 ℃$ 78.00SE -
CHANGLONG BCW4-80 reflective temperature sticker, specification 40 × 40mm temperature 80 ℃$ 78.00SE -
CHANGLONG BCW4-70 Reflective thermal sticker, specification 40 × 40mm Temperature 70 ℃$ 78.00SE
ChangLong BCW-789 Reflective temperature measuring patchSPEC
ChangLong BCW-789 Reflective temperature measuring patchDetails
ChangLong BCW-789 Reflective temperature measuring patchPacking list
- SKU
- NB010894
- Reversibility
- Irreversible
- number of temperature grids
- 3 squares
- Measurement temperature ℃
- 70℃|80℃|90℃
- Specifications and Dimensions
- 25*54mm
- Temperature grid shape
- rectangle
- Encasement Specifications
- 10 pieces/sheet
- Color change
- 70 ℃ → green, 80 ℃ → red, 90 ℃ → black
Introduction
Changlong BCW-789 reflective temperature paperIt has unique color-changing temperature display, reflective display and temperature recording functions, and it has self-adhesive. Once the temperature of the temperature monitoring part reaches or exceeds the rated temperature of the temperature-measuring patch, the temperature-measuring patch will change color immediately, and the over-temperature number at that place will be displayed on the temperature-measuring patch. With the reflective display function, whether it is day or night, it is easy for people to find the temperature rise of the temperature monitoring part during the inspection, so as to find out the hidden trouble.
After the temperature measuring patch is overheated, it will no longer turn back to the original white, and it will be in the recording state.
Applications
BCW-789 reflective temperature paper is applied to the connection part of the busbar of the substation, and can also be pasted on the connection between the busbar and the equipment terminal and the contact of the isolating switch, and can also be pasted on the transformer, capacitor, motor and other electrical equipment. On the casing, it is used to monitor the temperature of the bus connection and the casing of the electrical equipment. , especially at night, the temperature measuring patch has a reflective display function.
physical graphics

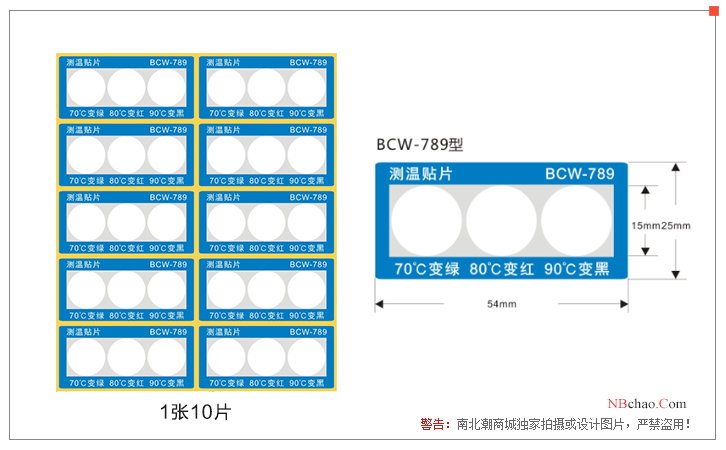

BCW-789 reflective temperature paper contains 10 pieces each, as shown below:
