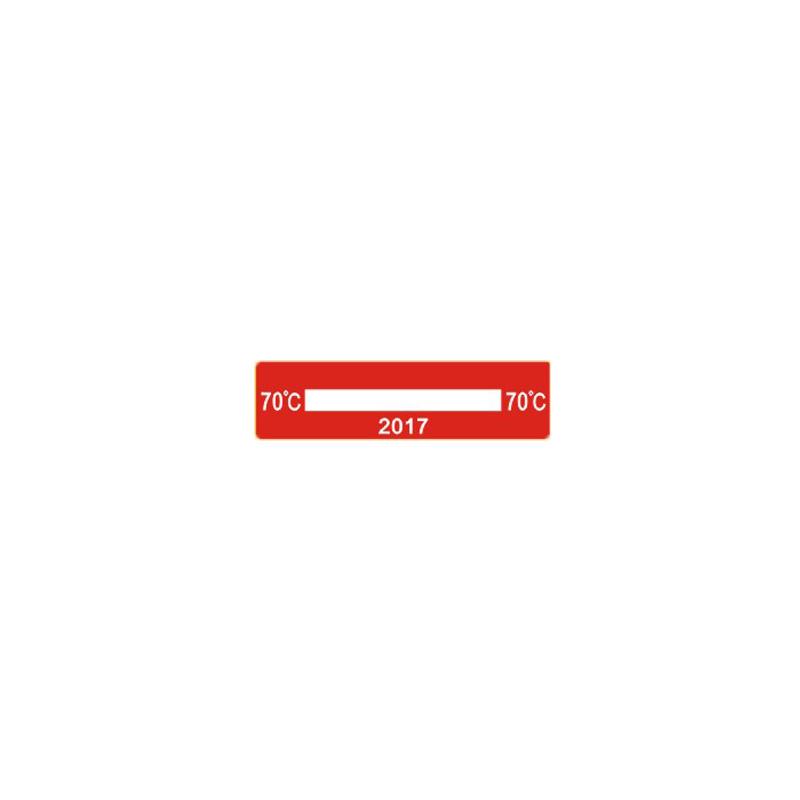

CHANGLONG SWX-70-3-8 railway special type temperature sticker 70 ℃ specification 30x8mm

SWX-70-3-8

Railway special temperature sticker

The discoloration method is irreversible, the number of temperature grids is 1 grid, Measuring temperature ℃ 70 ℃, specification size 30 * 8mm, temperature grid shape rectangle, Encasement specification 50 pieces/sheet, Color change white → black

Introduction

Changlong SWX-70-3-8 railway-specific temperature-sensing stickers are produced in accordance with the standards of CHINA Railway Corporation TJ/CL442-2015 "Temporary Technical Conditions for Temperature-sensing stickers for Railway Passenger Car Wire and Cable". Digital display function, self-adhesive. Once the temperature of the temperature monitoring part reaches or exceeds the rated temperature of the temperature-sensing sticker, the temperature-sensing sticker will immediately change from white to black, and the temperature-sensing sticker with a large discoloration area will also display the over-temperature number at that place. The color is irreversible after the over-temperature discoloration is pasted, and it is easy for people to find the temperature rise of the temperature monitoring part during inspections, so as to find out hidden troubles and prevent accidents.

Applications

SWX-70-3-8 is widely used in control cabinets (power distribution cabinets, electrical integrated control cabinets, air-conditioning control cabinets, power conversion boxes, lighting control boxes), circuit breaking Connectors, contactors, thermal relays, fuses, etc. and wires and cables are used to monitor the temperature of the connection.

Real photo

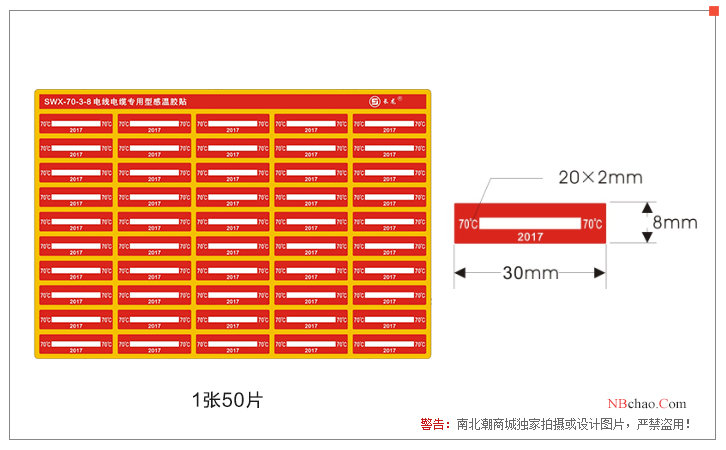

SWX-70-3-8 railway-specific temperature-sensitive stickers are sold in sheets, each sheet contains 50 pieces, as shown below:

Packing list： 50 pieces/sheet of temperature-sensitive patch

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
