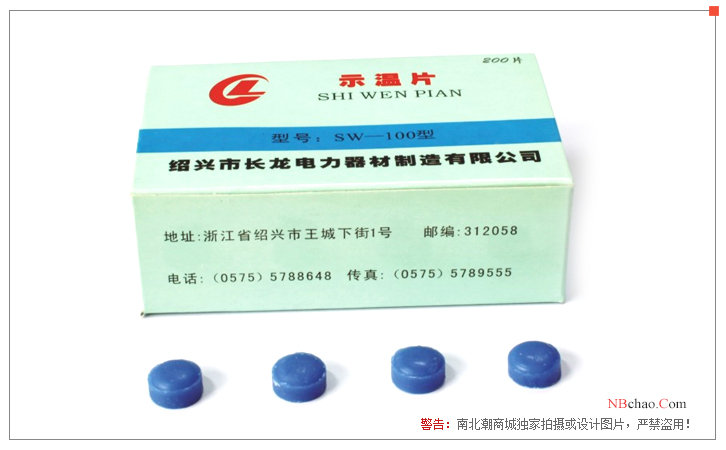

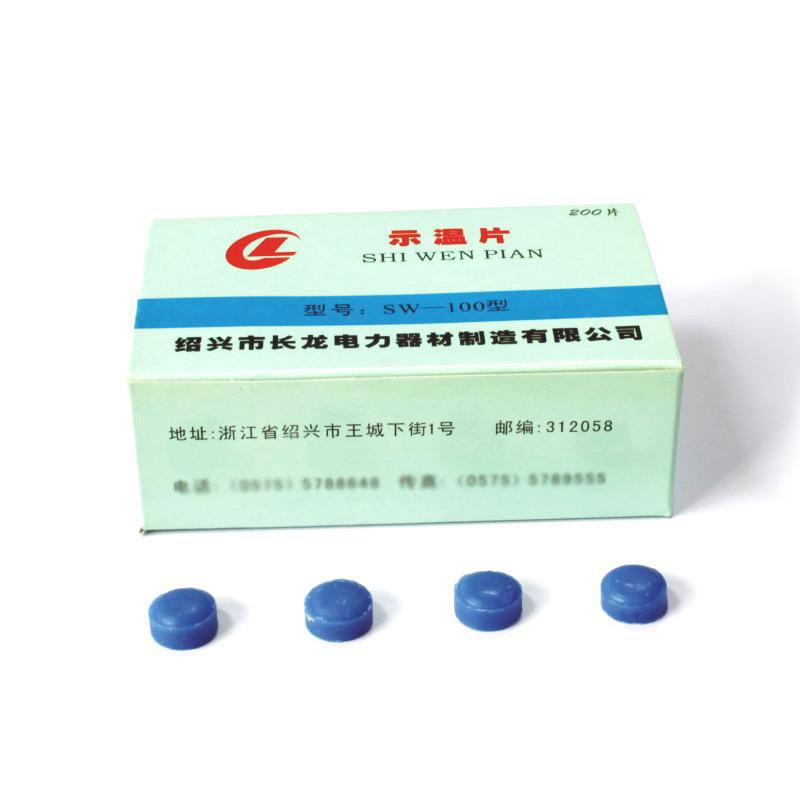

CHANGLONG SW-100 (Blue) Temperature Wax Tablets, Rated Temperature 100 ℃

SW-100 (Blue)

Temperature tablets

Measuring temperature ℃ 100 ℃, Color blue, Error +/- 1 ℃, Encasement specification 200 pieces/box

Introduction

Changlong SW-100 temperature-indicating wax sheet is widely used in the connecting part of the busbar of the substation to monitor whether the contact of the busbar connection is good or not. It is an indispensable protection item to ensure the safe operation of the substation.

In order to ensure the safe operation of the busbar in the substation, it is necessary to understand its temperature rise. The temperature indicator can be used to supplement the insufficiency of the general thermometer. During the patrol inspection, the excessive temperature rise of the busbar can be found in time, and the abnormal state of the busbar can be detected immediately. Make corresponding treatment (such as immediate maintenance or reduce excessive load and other measures) to prevent accidents.

The temperature indicator sheet can also be used on the terminal of the equipment connecting the busbar and the electrical equipment, on the contact of the isolating switch, and on the electrical equipment such as transformers, motors, capacitors, and non-electrical equipment such as bearings and bushings, to measure its temperature , to monitor its safe operation.

Features

1. High accuracy, the error between the melting temperature of the thermometer and the rated temperature is ±1°C.

2. It is safe, and the melting of the temperature indicator can be observed when it is far away from the busbar (or electrical equipment).

3. Easy to use, as long as the temperature indicator is pasted on the busbar and electrical equipment, the temperature can be monitored.

4. Intuitive, it is clear at a glance whether the temperature indicator is melted on the busbar or electrical equipment.

plan

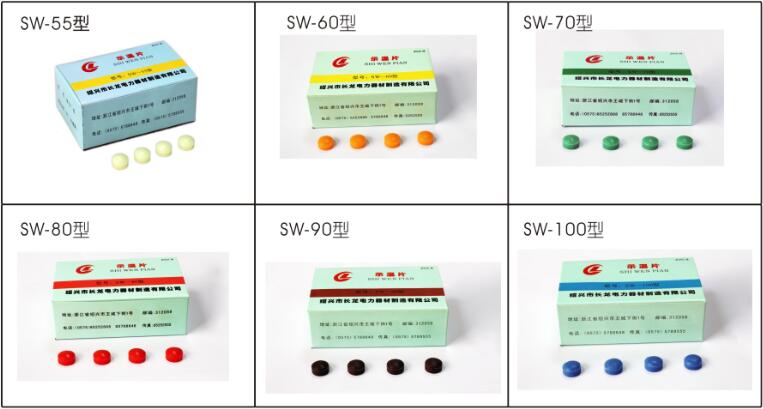

SW series thermometer

Packing list：Temperature tablets 200 pieces/box

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
