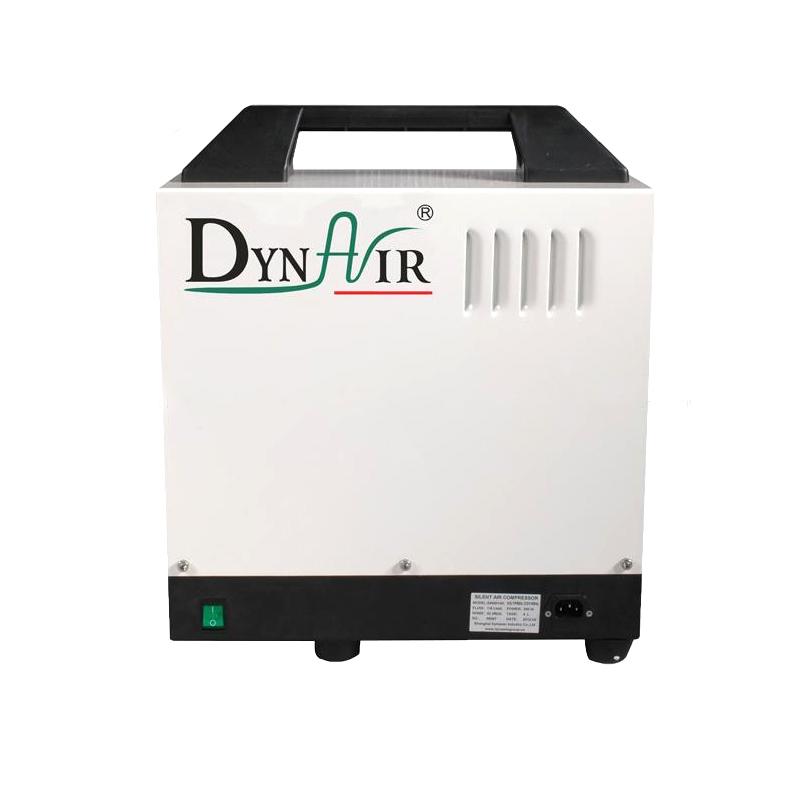

Air Compressor Dasheng DA5001/4c volume 4L small volume Air Compressor

DA5001/4C

Air Compressor without oil

Introduction

Dasheng DA5001/4c miniature Air Compressor is a pure oil-free miniature Air Compressor with smaller volume and air storage tank volume than DA5001 oil-free Air Compressor. Dasheng micro Air Compressor is a pure oil-free design, it is a piston Air Compressor, which has the advantages of anti-rust inner coating, adjustable air pressure, multi-stage filtration, etc. The air storage tank of Dasheng DA5001/4c Air Compressor has a volume of 4L and a size of 410x190x480mm, which is small in size. The miniature Air Compressor is used with the silencer box and the drying tower (both need to be purchased separately) to reduce the noise value and dew point.

Dasheng DA5001 / 4c miniature Air Compressor is mainly composed of three parts: compressor head, air storage tank and control system. The control system includes pressure switch, solenoid valve, safety valve, allergy protector, etc.

boot preparation method

1) Check whether the drain valve is closed, whether the pressure control switch is in the "0" position (disconnected position), the ball valve at the exhaust port is in a closed state, and check whether the power supply Voltage of the DA5001/ 4c oil-free Air Compressor is normal.

2) Remove the air inlet plug, screw on the air filter, and make the PU pipe face downward.

3) Unscrew the quick-twist ferrule at the exhaust port, and put it on one end of the gas delivery tube, insert the gas delivery tube into the quick-twist and tighten the ferrule, and connect the other end of the gas delivery tube to the external device.

4) Insert the power plug of the DA5001/4c miniature Air Compressor into the power socket, and the DA5001/4c oil-free Air Compressor operates normally, and the installation is complete.

Application

Dasheng DA5001 / 4c miniature Air Compressor is widely used in iron and steel, electric power, metallurgy, shipbuilding, electronics, textile, mining, chemical industry, industry, light industry, paper printing, machinery manufacturing, food and medicine, transportation facilities, casting spraying, Hongyun Wharf , automobile industry, military technology, aerospace, laboratory, infrastructure and other fields.

1. Machinery manufacturing industry: such as program control of machining centers, program control of combined machine tools, equipment testing, parts testing, automobile assembly, oxygen equipment matching, production lines, spraying, inflation and industrial robots, etc.

2. Metallurgical industry: such as metal smelting, sintering, cold rolling, hot rolling, bundling and packaging of wire rods and plates, continuous casting and rolling production lines, etc.

3. Electronics, laboratories, and precision instrument industries: It plays a great role in the production of some high-precision electronic products, the experimental process, and the control and detection of precision instruments.

4. Light industry: such as prevention, household appliances, leather shoes and clothing, printing and packaging, furniture, cigarettes, pharmaceutical factories, food, glass, building materials, etc.

5. Power industry: Auxiliary equipment control of power plants, coal transportation, ash removal, industrial water treatment equipment, etc.

6. Chemical industry and military industry: Air Compressors are used for the transportation of chemical raw materials, filling of harmful liquids, packaging of explosives, torpedo control devices, automatic north CHINA of boats, oil drilling and other equipment.

7. Transportation industry: brakes for trains, lane changing devices for rails, vehicle door and window switches, automatic control for subways, automatic equipment for ships, aircraft maintenance, inflation for automobiles and hovercraft, loading and unloading for docks, etc.

5. Aerospace industry: Because pneumatic devices can withstand radiation and high temperature can withstand faster acceleration, DA5001 / 4c oil-free Air Compressors have gradually been widely used in the control systems of modern aircraft, rockets and missiles.

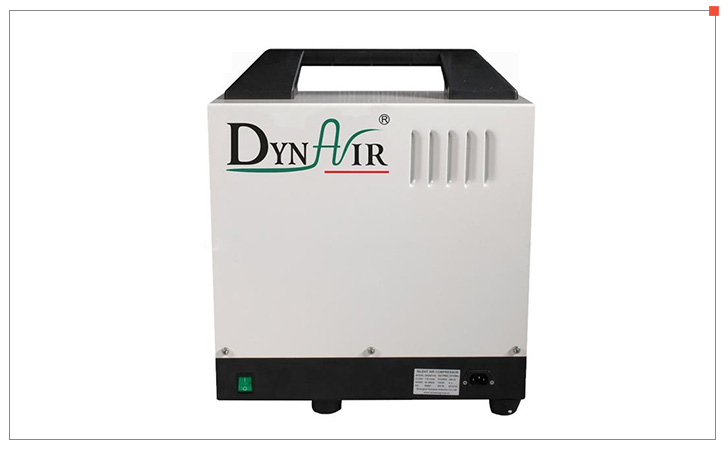

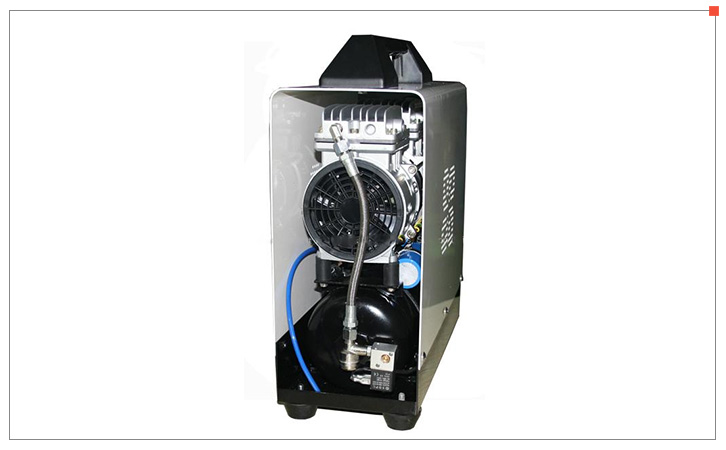

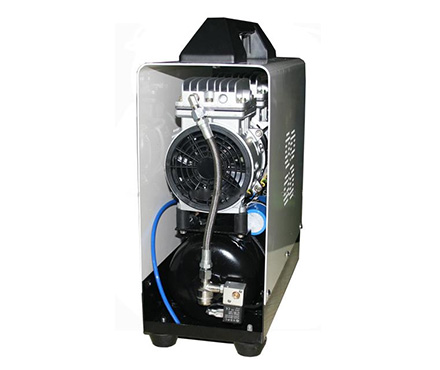

Pictures

storage environment

After packaging, Dasheng DA5001 / 4c miniature Air Compressor should be stored in a clean room with a Relative Humidity not exceeding 80%, no corrosive gas and good ventilation.

Operating Environment

Dasheng DA5001 / 4c miniature Air Compressor ambient temperature: 5~40℃, Relative Humidity should not exceed 80%.

installation conditions

Dasheng DA5001 / 4c miniature Air Compressor The ground where the Air Compressor is placed should be flat, and the deflection of the fuselage after installation should not exceed 2 degrees Celsius.

Packing list：Host x1, product certificate x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
