US Defelsko PosiTector 6000 Imported Coating Thickness Gauge series Full model summary

Introduction

Defelsko is a manufacturer of Thickness Gauges, which are widely used in various industries at home and abroad, and are suitable for measuring the thickness of various coatings. Among them, the Defelsko Positector 6000 series imported coating Thickness Gauge has been favored by industry users for its simple, durable, accurate, multi-purpose and powerful advantages, and adopts two principles of magnetic and eddy current thickness measurement. Positector 6000 seriesimportCoating Thickness Gauges are available in advanced and standard versions, and each type is available to measure ferrous and non-ferrous metals. Defelsko Thickness Gauges have developed different transducer types for different user needs, including universal close-fit transducers, 90° transducers, 0° transducers, 45° miniature transducers, 90° miniature transducers, and thick coating special transducers.

Features

1. Positector 6000 seriesimportThe coating gauge requires no calibration for most tests, is portable, one-handed and features a two-color indicator that can be clearly displayed in any environment.

2. Positector 6000 seriesimportThe coating gauge is designed for durability, with a rubber sheath for a belt buckle that is resistant to solvents, oils, acids, water, dust, and vibration absorption and protection, and a wear-resistant probe.

3. The measurement is accurate, and it is proved by NISI calibration, and the Thickness Gauge has built-in temperature compensation, which conforms to various international standards of ISO and ASTM.

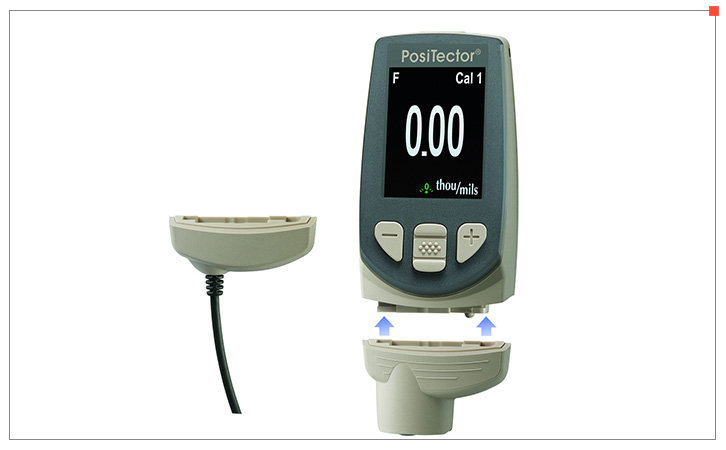

4、DefelskoImported coatingThe gauge is versatile, freely interchangeable, and compatible. It can be backlit and inverted, and there are three calibration methods: zero, one and two.

5. Positector 6000 seriesimportCoating Thickness Gauges are powerful enough to measure and display standard deviations, maximum and minimum thicknesses, number of readings, display and update averages, etc., as well as audible and visual alarms for out-of-range measurements. It can be connected to a PC via USB, which can store a large amount of data, and the update time can be automatically saved after measurement and storage.

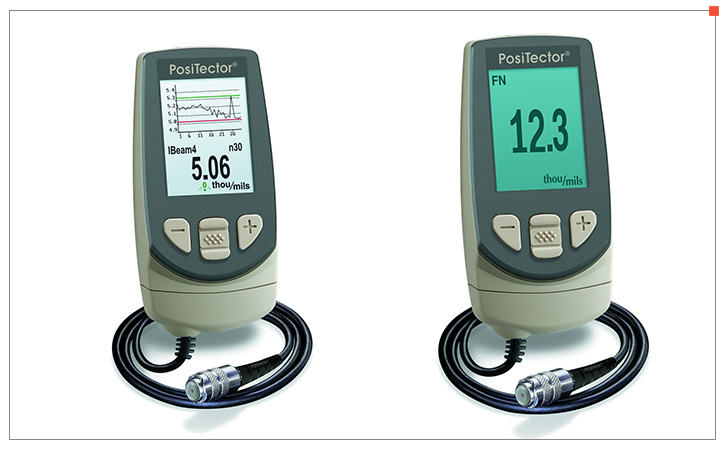

The difference between standard and advanced

1. Standard Positector 6000 seriesimportCoating Thickness Gauge: Monochrome display (old) Color LCD display (new) with a storage capacity of 250 readings that can be browsed and downloaded.

2. Advanced Positector 6000 seriesimportCoating Thickness Gauge: color LCD screen, can store 100,000 readings, can be divided into 1,000 groups and subgroups, screen real-time display graphics, picture prompts and batch recording, connect USB to realize data transmission computer function, can also be connected to Bluetooth computer and printer, with scanning mode function, with SSPC/PA2 function and PSPC90/10 function to judge the coating thickness reasonable.

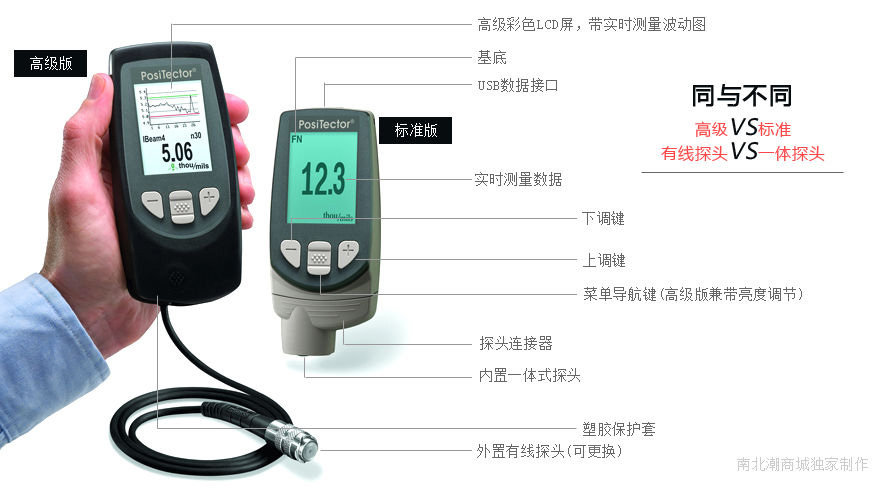

Actual picture of the product

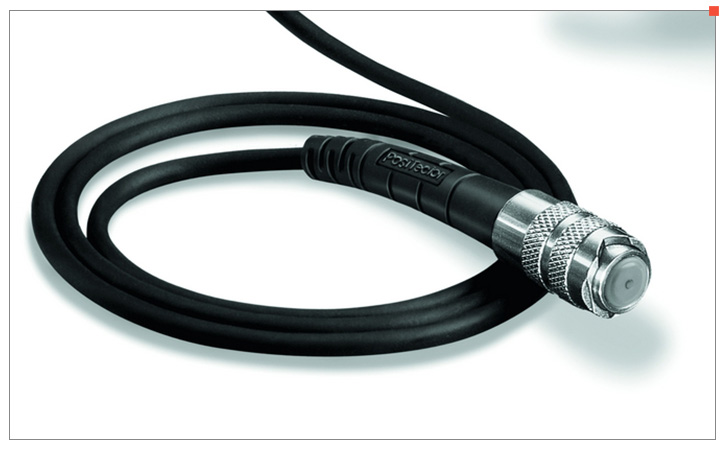

Probe type

Probe type
All-in-one probe	FS, NS, FNS, NAS, FTS probes	FRS, NRS, FNRS probes	FNTS, FKS, NKS probes
F0S, N0S probes and probe covers		F45S, N45S probes	F90S, N90S probes

Comply with international standards

The Defelsko PosiTector 6000 Series Coating Thickness Gauge complies with ISO 2718/2360/2808, PrEN ISO 19840, ASTM B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2 and others.

Description of substrate symbols

F—ferrous metal substrate (steel, iron, etc.)

N—Non-ferrous metal substrate (aluminum, copper, etc.)

FN – All Metal Substrates – Automatic identification of substrate type and measurement

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
