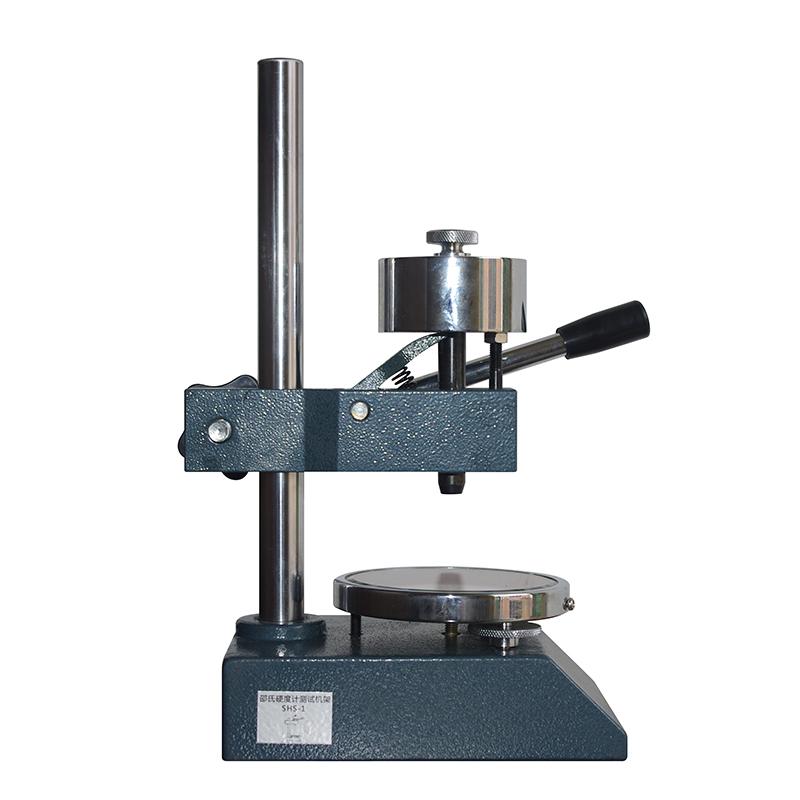

LANDTEK Shore Durometer testing device SHS-1 (A, C type) Hardness Gauge A/C type matching

SHS-1 (Type A, C)

Shore Shore Durometer testing device

Introduction

LANDTEK SHS-1 (Type A, C) Shore Hardness Tester Test Rack is a dedicated Hardness Tester bracket for A/C Type Shore Hardness Testers, which can help the Hardness Tester to obtain the hardness value of the measured object more stably and accurately . SHS-1 (Type A, C) Shore Hardness Tester test frame is equipped with a corresponding fixed load weight on the upper end of the clamped Hardness Tester for hardness testing. There are many types of test racks for LANDTEK Hardness Testers, which are mainly suitable for different types of Hardness Testers according to the weight of the weights applied on the upper end. Type A and Type C Shore Hardness Testers are used for added weights and hardness The total mass of the meter is 1kg.

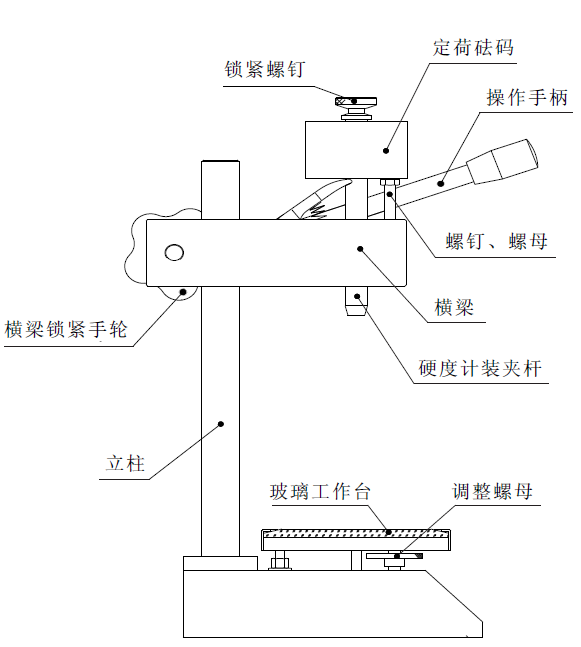

Product Structure

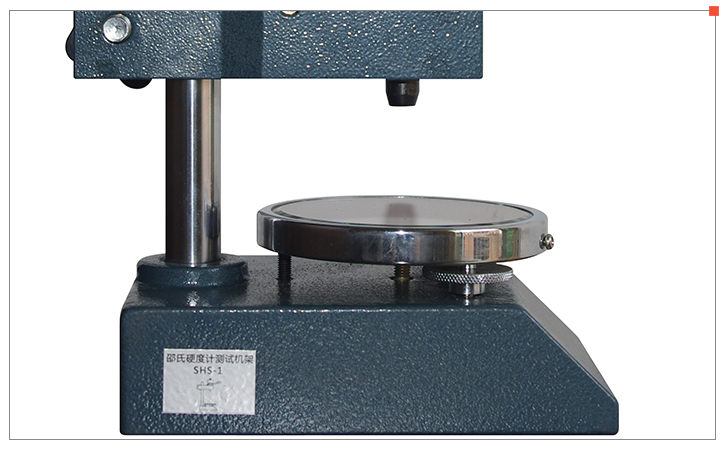

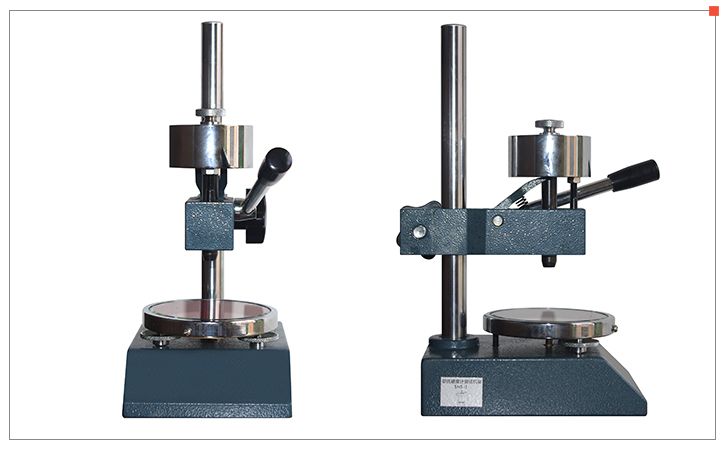

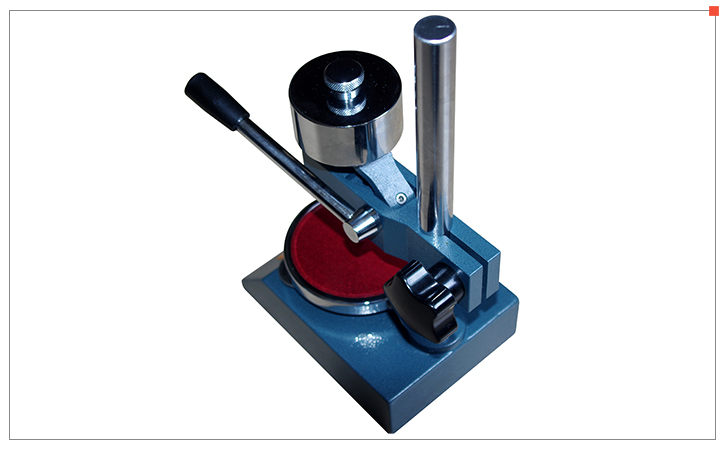

Pictures

Precautions for use

1. When using the SHS-1 (Type A, C) Shore Hardness Tester, do not vibrate. The Hardness Tester is pressed against the sample at a maximum speed of 3.2mm/s.

2. Adjust the test sample according to the standard.

3. After use, the test rack should be cleaned in time to prevent rust.

Note: For the usage of SHS-1 (Type A, C) Shore Hardness Tester, please refer to the following detailed introduction of SHS-1 (Type D) Shore Hardness Tester.

references

1. GB/T531.1-2008 Vulcanized rubber or thermoplastic rubber indentation hardness test method Part I: Shore durometer method (Shore hardness)

2. HG/T2489-2007 Microporous material hardness test method for shoes

Packing list：Hardness gauge bracket x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
